VP-506 DVI & Computer Graphics Video Scan Converter
Please sign in so that we can notify you about a reply

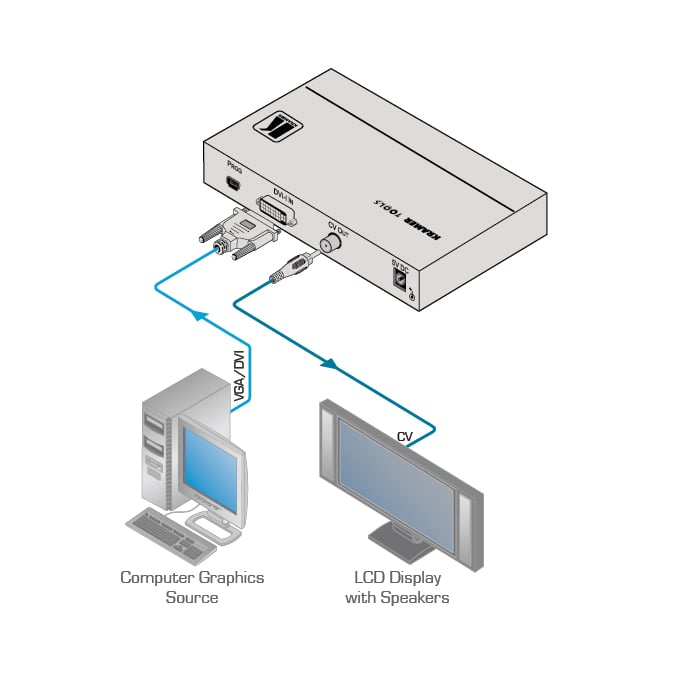

The VP−506 is a high−quality scan converter for down−scaling DVI, computer graphics (VGA) and component video (YPbPr) to PAL or NTSC video. It supports VGA up to UXGA, as well as component resolutions up to 1080p.
Features
- Max. Resolution — UXGA & 1080p.
- HDTV Compatible Input.
- Selectable Video Standards — PAL or NTSC.
- Memory Locations — Saves and recalls up to four setups, including picture, input, output, zoom and advanced feature setups.
- Built–In ProcAmp Features — Color, sharpness, contrast and brightness.
- Control — Front panel buttons and OSD (on screen display).
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
70-0121090
Specifications
Product Type:
DVI & Computer Graphics Video Scan Converter
Maximum Operating Temperature:
+40°C
Special Features:
HDTV Compatible Input, Selectable Video Standards-PAL or NTSC, Memory Locations-Saves and Recalls Up to Four Setups, Including Picture, Input, Output, Zoom and Advanced Feature Setups, Built-In Procamp Features-Color, Sharpness, Contrast and Brightness, C
Applications:
Multimedia, Board Rooms, and Video Conferencing, Any Where High-Quality Conversion Of DVI Data Signals to Video Signals Is Required
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Mounting Bracket
Performance
Resolution:
WUXGA, 1080pixels
Inputs and Ports
Input Port Type:
1xDVI-I (DVI-D, VGA, YPbPr) on a 24-Pin MoleXConnector
Input Signal Type:
HDMI
Power
Current Rating:
540mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
