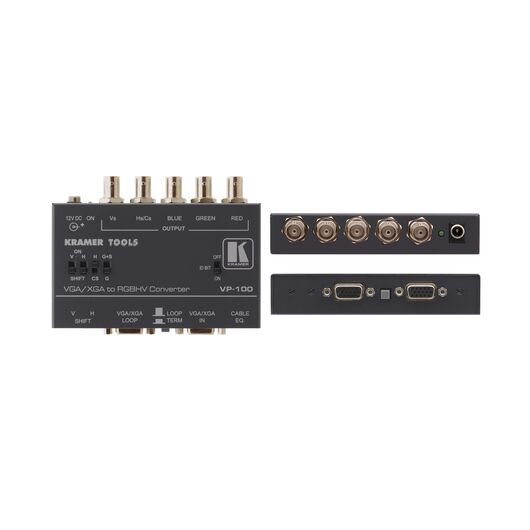

VP-100 Computer Graphics Video to RGB/HV/S Format Converter
Please sign in so that we can notify you about a reply

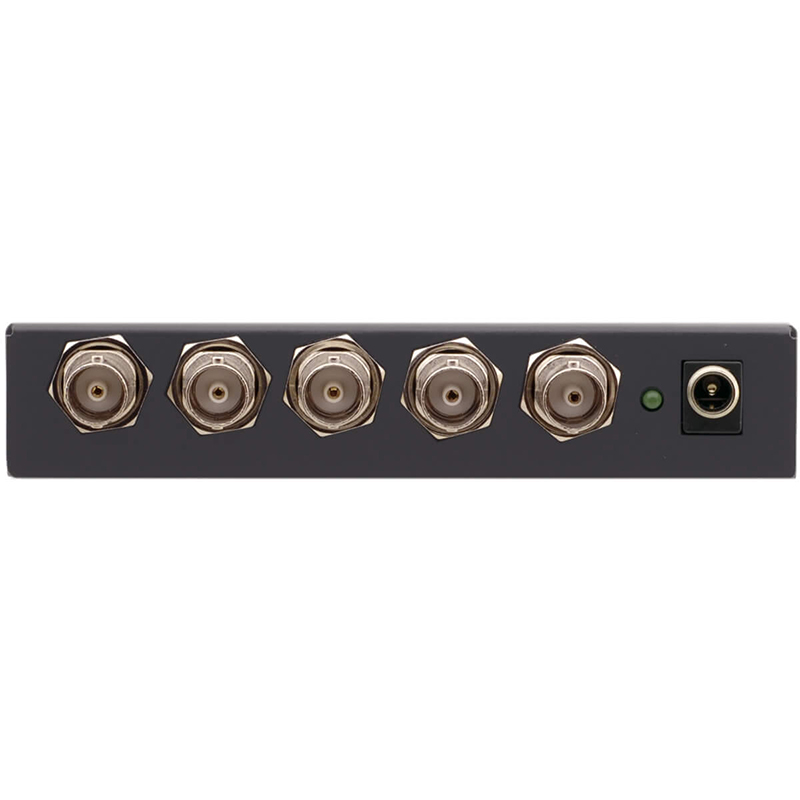

The VP-100 is a high-performance format converter for computer graphics video signals. It converts a computer graphics video signal on a 15-pin HD connector to either RGBS, RGsB, or RGBHV video signals on BNC connectors.
Features
- High Bandwidth — 350MHz (–3dB).
- Control — H/V sync shift & sync selection.
- Looping Input.
- Selectable Input Signal Termination.
- ID Bit Control.
- EQ (Peaking) Control.
- Active Line Amplification Circuitry.
Brand:
Kramer
Part number:
90-010090
Specifications
Product Type:
Computer Graphics Video to RGB/HV/S Format Converter
Special Features:
Control-H/V Sync Shift & Sync Selection, Looping Input, Selectable Input Signal Termination, ID Bit Control, EQ (Peaking) Control, Active Line Amplification Circuitry
Applications:

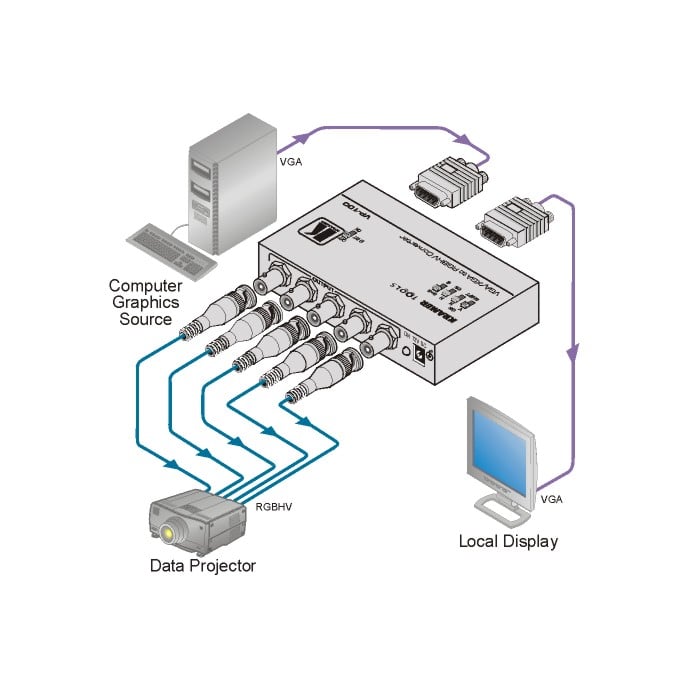

Any Professional Display System Requiring Up to UXGA Signal Splitting and Conversion to BNC Connector, Long Distance Graphics Signal Distribution
Includes:
Power Supply, Mounting Bracket
Inputs and Ports
Input Signal Type:

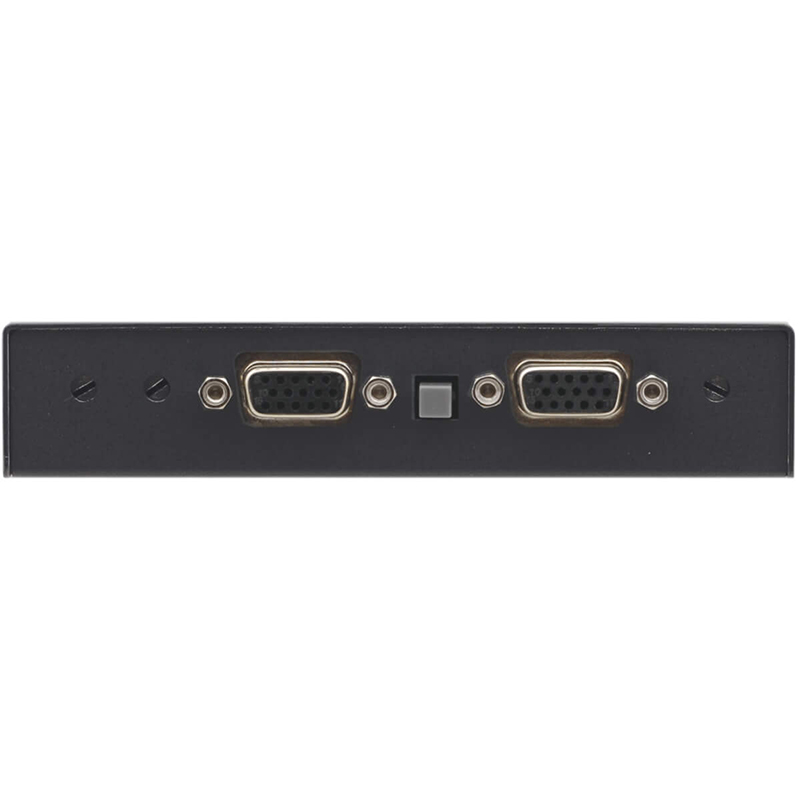

1 Analog Red, Green, Blue Signals:0.7Vp-p/75Ω, H & V Sync, TTL Level with Loop on 15-Pin HD (F) Connector
Power
Current Rating:
60mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
Other
Voltage Rating:
12V DC
