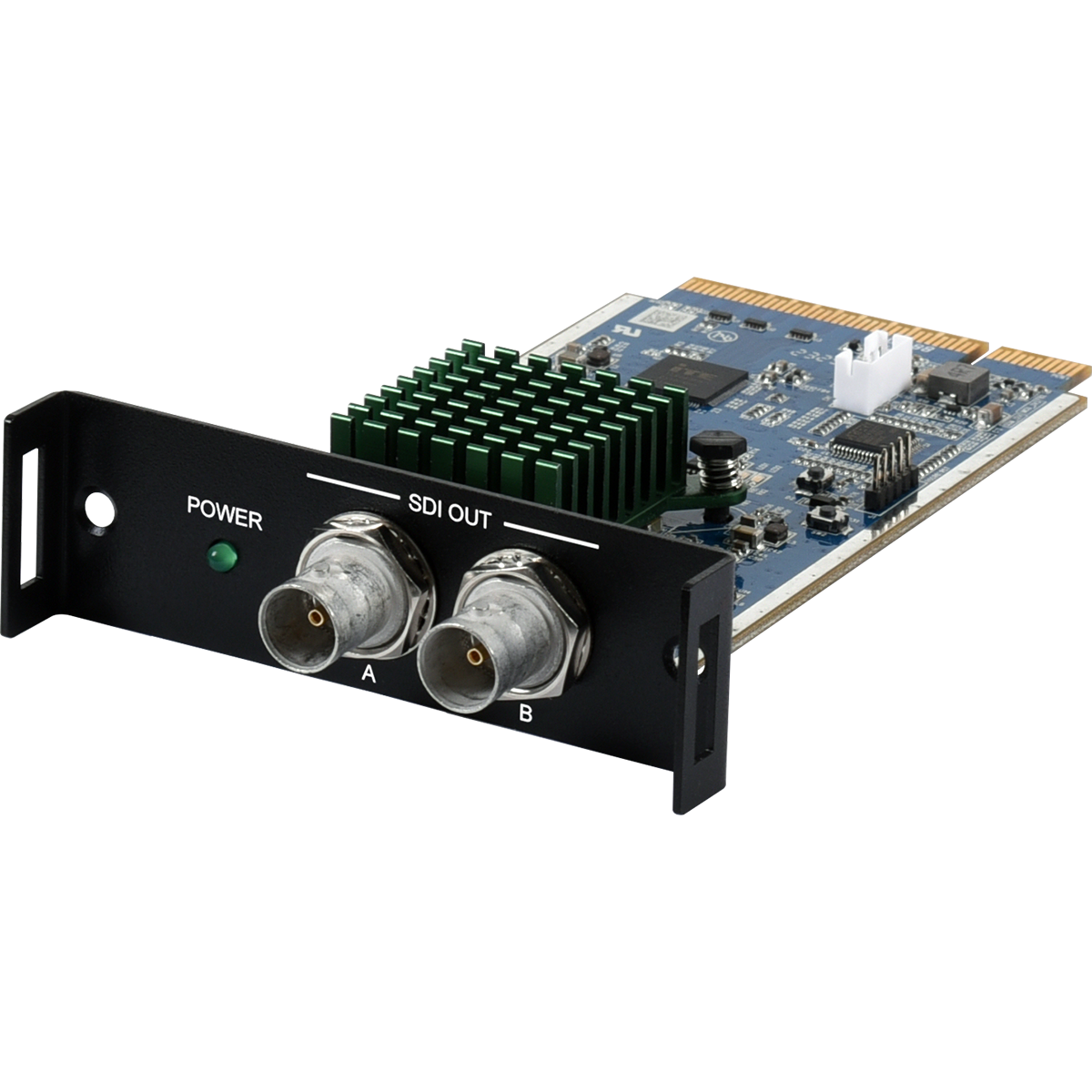

SDM-I301HS HDMI to SDI Video Transmitter Module Card
Please sign in so that we can notify you about a reply
This 4K60 HDMI to 12G-SDI Transmitter Module allows HDMI signals up to 4K60 to be converted for use in native 12G-SDI video systems. This makes it easier for professionals to integrate and distribute non-HDCP HDMI signals from video equipment, such as video cameras and laptops.

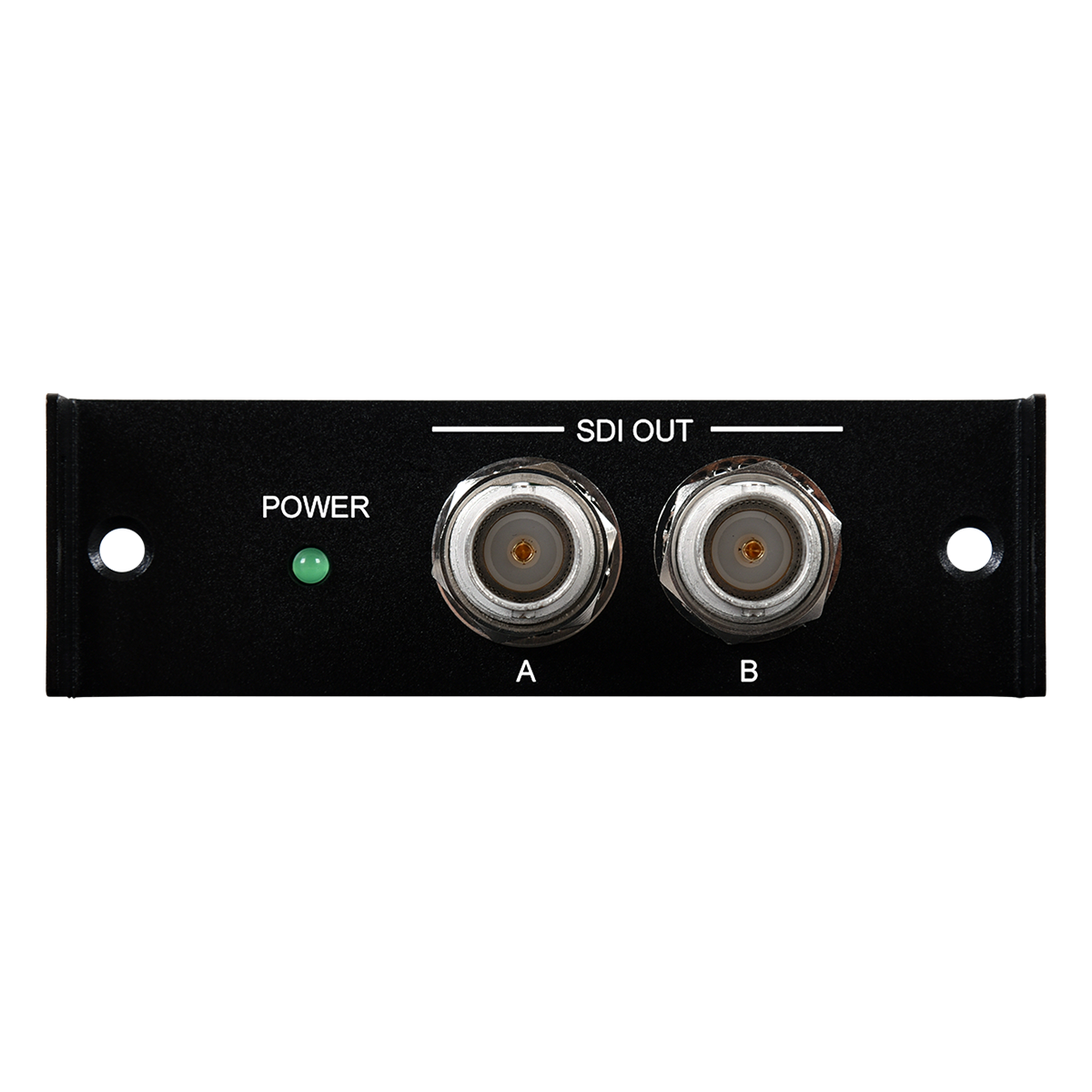

Features- 2 mirrored 12G-SDI outputs
- Supports up to 4K UHD+ (4K@50/60Hz 4:4:4, 8-bit) digital video input, and 4K@60 4:2:2 for output
- SDI signal extension distance varies based on signal type: 70 meters (12G-SDI), 100 meters (6G-SDI), 200 meters (3G-SDI), or 260 meters (HD-SDI)
- SDI output supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10
- The SDI output will be blocked in the case of HDCP content
- Supports pass-through of LPCM audio (up to 8 channels) from the module input
Brand:
Cypress Technology
Product Type:
Transmitter Module Card
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
Features:
Standard CYP Module Slot, Flexibility, 2 Mirrored 12G-SDI Outputs
For Use With:
12G-SDI Video System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4096×2160pixels@60Hz YUV 4:4:4 (Input), 4096×2160pixels@60Hz YUV 4:2:2 (Output)
Data Transfer Rate:
18Gbps (HDMI), 12Gbps (SDI)
Inputs and Ports
Input Port Type:
1xCYP Module (Edge Connector)
Output Port Type:
2x12G-SDI (BNC)
Dimensions
Width:
12.8cm
Depth:
7.5cm
Height:
2.5cm
Weight:
92g
