FC-332 3G HD–SDI to HDMI Format Converter
Please sign in so that we can notify you about a reply

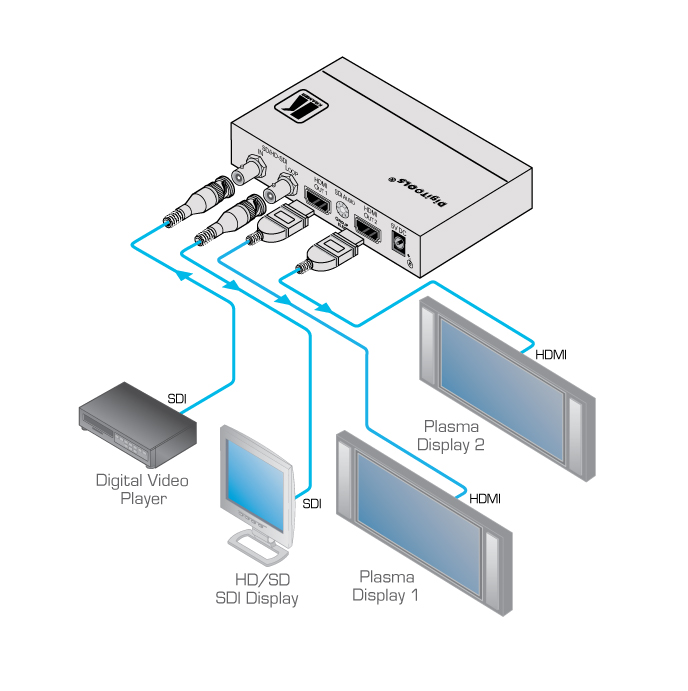

The FC-332 is a high-performance format converter for video signals up to 3G HD-SDI. The unit converts the input video format (with embedded audio) to two HDMI outputs.
Features
- HDTV Compatible.
- Looping Input.
- Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M) compliance and support for data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps.
- Embedded Audio Group Select Rotary Switch.
- Active Input Indication™ Reporting — Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
- Compact DigiTOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-70857090
Specifications
Product Type:
3G HD-SDI to HDMI Format Converter
Special Features:
HDTV Compatible, Looping Input, Multi-Standard Operation-SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M) Compliance and Support for Data Rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps, Embedded Audio Group Select Rotary Switch, Activ
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging
Includes:
Power Supply
Performance
Data Transfer Rate:
3Gbps
Inputs and Ports
Input Port Type:
1xSD/HD/3G HD-SDI (Level A) with Loop on BNC Connector
Input Signal Type:
HDMI
Power
Current Rating:
510mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
Other
Voltage Rating:
5V DC
