FC-331 3G HD–SDI to HDMI Format Converter
Please sign in so that we can notify you about a reply

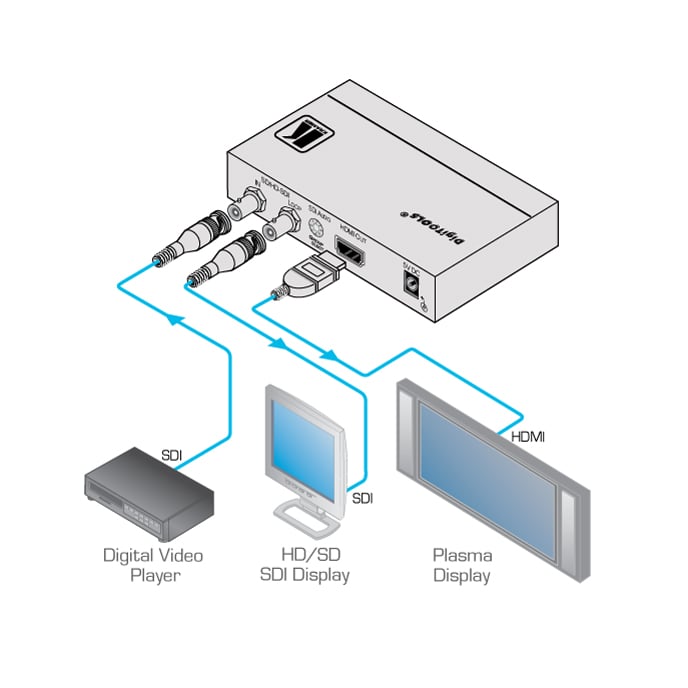

The FC−331 is a high−performance format converter for video signals up to 3G HD−SDI (Level A). It converts the input video format (with embedded audio) to an HDMI output signal.
Features
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
- SDI Level A Support.
- Looping Input with Reclocking.
- HDTV Compatible.
- Audio Group De–embedded SelectioN.
- Active Input & Output LED Indicators.
Brand:
Kramer
Part number:
90-70813090
Product Type:
3G HD-SDI to HDMI Format Converter
Specifications
Special Features:
HDTV Compatible, Looping Input, Multi-Standard Operation-SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M) Compliance and Support for Data Rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps, Embedded Audio Group Select Rotary Switch, Activ
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging
Includes:
Power Supply
Performance
Video Latency:
<10μs
Data Transfer Rate:
3Gbps
Inputs and Ports
Input Port Type:
1xSD/HD/3G HD-SDI (Level A) with Loop on BNC Connector
Input Signal Type:
HDMI
Power
Current Rating:
400mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
