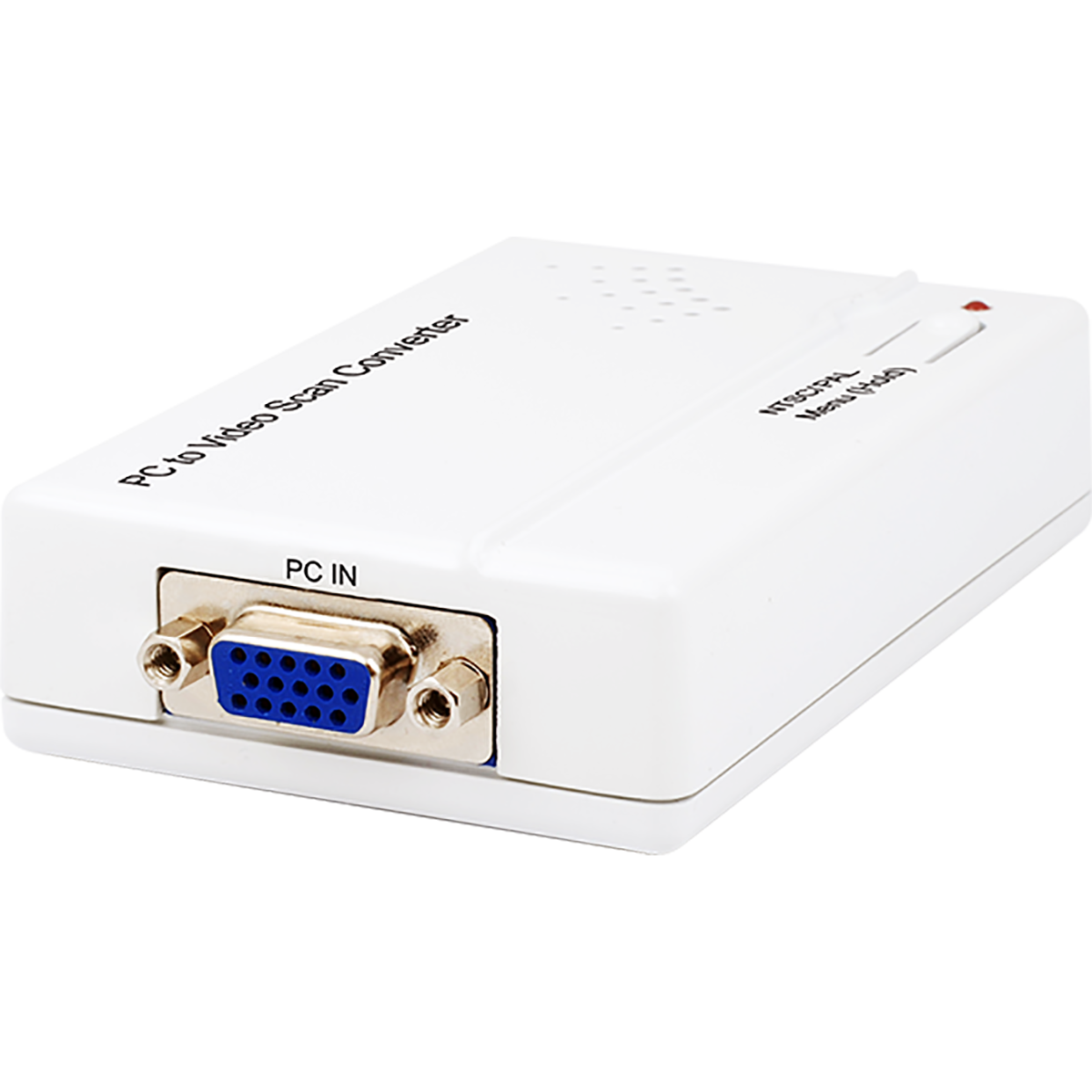

CV-401V PC/HD to Video Scan Converter
Please sign in so that we can notify you about a reply
The PC to Video Scan Converter is designed to down-scale a PC/Component source to analog CVBS for use in an NTSC or PAL system. Ideal for businesses with multiple CCTV cameras, this device takes your high-resolution camera footage and scales it to lower resolutions. Supporting PC resolutions up to WUXGA@60 Hz, this scaler can also connect new video sources to older displays. The device has many great features such as 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more. It also has a simple on-screen display (OSD) menu that allows the user to access the display status including input and output information.
Features
- Converts the video signal from PC/Component source to NTSC or PAL signal
- Accepts a wide range of input resolutions of 480i to 1080p@60 Hz (Component) and VGA to WUXGA@60 Hz (PC)
- 3D noise reduction in both temporal and spatial domain
- Frame rate conversion
- Adaptive contrast enhancement
- OSD Display
- Overscan and underscan adjustment
- Phase and Aspect adjustment
- No software installation required
Brand:
Cypress Technology
Specifications
Product Type:
Video Scan Converter
Maximum Operating Temperature:
+40°C
Silkscreen Color:
White
Special Features:
3D Noise Reduction in Both Temporal and Spatial Domain, Frame Rate Conversion, Adaptive Contrast Enhancement, OSD Display, Overscan and Underscan Adjustment, Phase and Aspect Adjustment, No Software Installation Required
Power Rating:
3W
Chassis Material:
Plastic
Applications:
Security Camera Display, Display PC Signal to Non-VGA CRT TV or Monitor, Display PC signal to non-VGA LCD TV or Monitor
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
PC/HD to Video Scan Converter, Power Adaptor, Operation Manual
Performance
Resolution:
480i to 1080pixels (HDTV), VGA to WUXGA@60Hz (PC)
Inputs and Ports
Input Port Type:

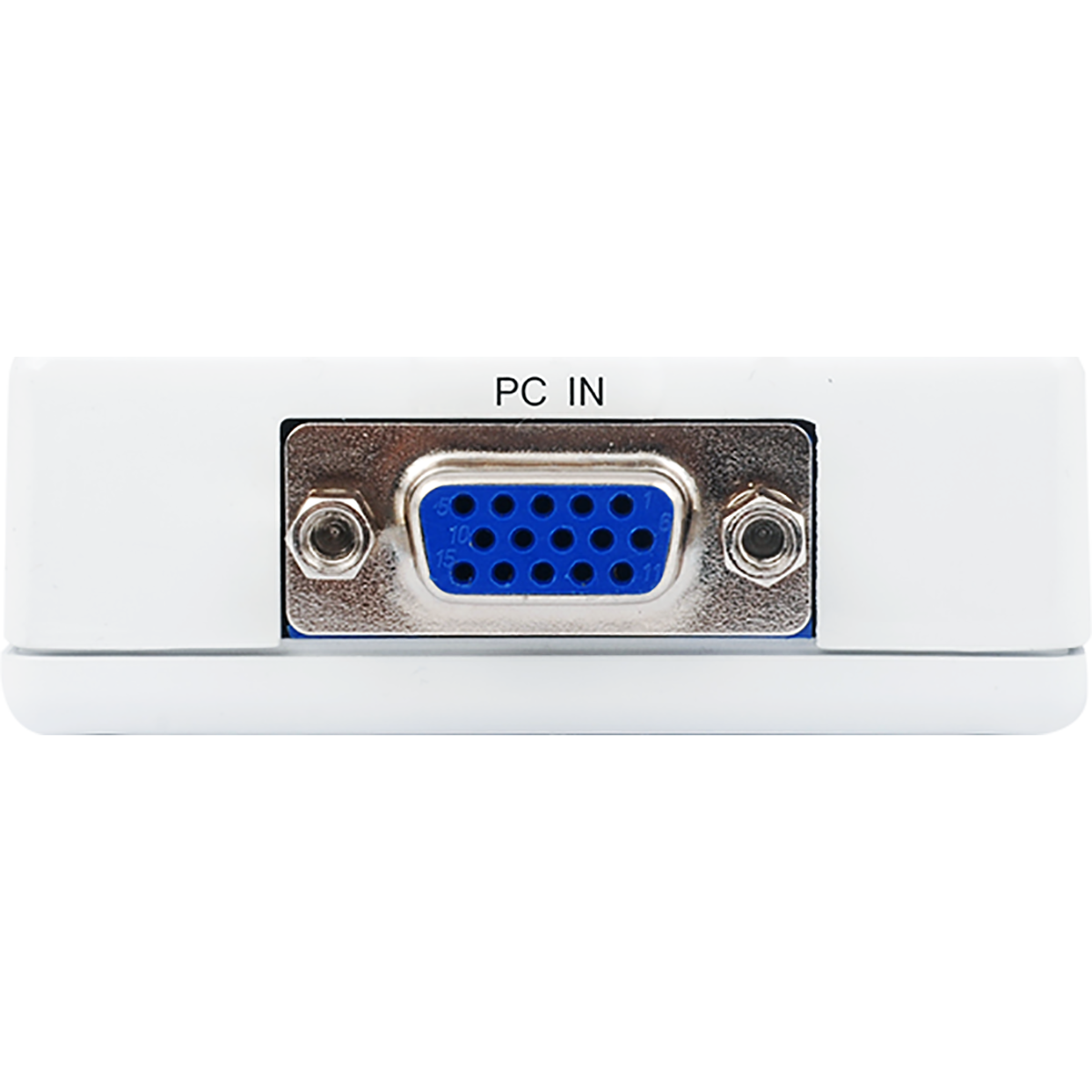

1xVGA
Input Signal Type:
PC/Component Source
Power
Current Rating:
1A
Dimensions
Width:
6.4cm
Depth:
10.4cm
Height:
2.6cm
Weight:
120g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
