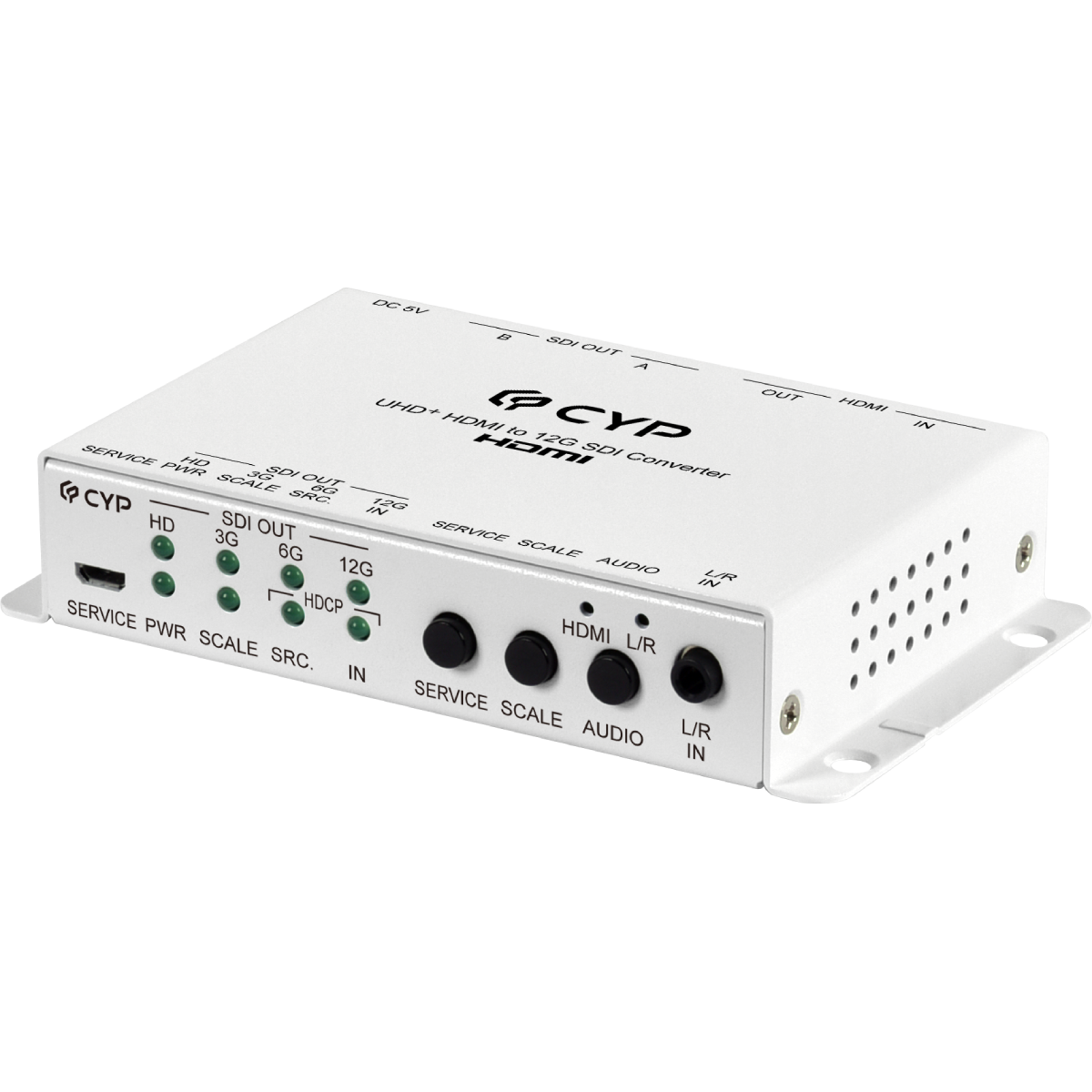

CPLUS-H2SDI HDMI to 12G-SDI Converter
Please sign in so that we can notify you about a reply
The HDMI to SDI Converter allows HDMI signals to be shown on two SDI displays while ensuring high bit rates of 12 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI displays. Also, a 2 CH L/R audio input allows DVI signal with 2CH audio to be converted to SDI in order to be shown on SDI displays. Furthermore, the device has a built-in default EDID and a recordable EDID that guarantee image display compatibility with source equipment.
Features
- Supports SDI output distance up to 60 meters (12G-SDI), 80 meters (6G-SDI) 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SDSDI)
Note:
- Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.
- This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.
- Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio
- Support SDI signal re-timing Cable Driver
Brand:
Cypress Technology
Specifications
Product Type:
HDMI to 12G-SDI Converter
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Support SDI Signal Re-Timing Cable Driver
Power Rating:
6.138W
Chassis Material:
Steel
Applications:
Display HDMI Video Signals on Professional SDI Displays, Consumer HDMI to Broadcast SDI Video Signal Conversion, 4K UHD HDMI Signal Conversion to 12G SDI
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI to 12G-SDI Converter, 1x5V/2.6A DC Power Adapter, 1xOperation Manual
Performance
Resolution:
HDMI:4096X2160pixels@60Hz (YUV 4:2:2) (Input)(Output), SDI:4096X2160pixels@60Hz (YUV 4:2:2) (Output)
Input? Format? Selection:
HDMI, Unbalanced Stereo
Data Transfer Rate:
5.3Gbps (FHD Video, 4K UHD Video), 10.2Gbps (4K UHD+ Video)
Inputs and Ports
Input Port Type:
1xHDMI -Type A, 1xUnbalanced 3.5mm Stereo Audio
Input Signal Type:
HDMI, Unbalanced Stereo
Power
Current Rating:
2.6A
Dimensions
Width:
12.8cm
Depth:
7.5cm
Height:
2.5cm
Weight:
347g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
