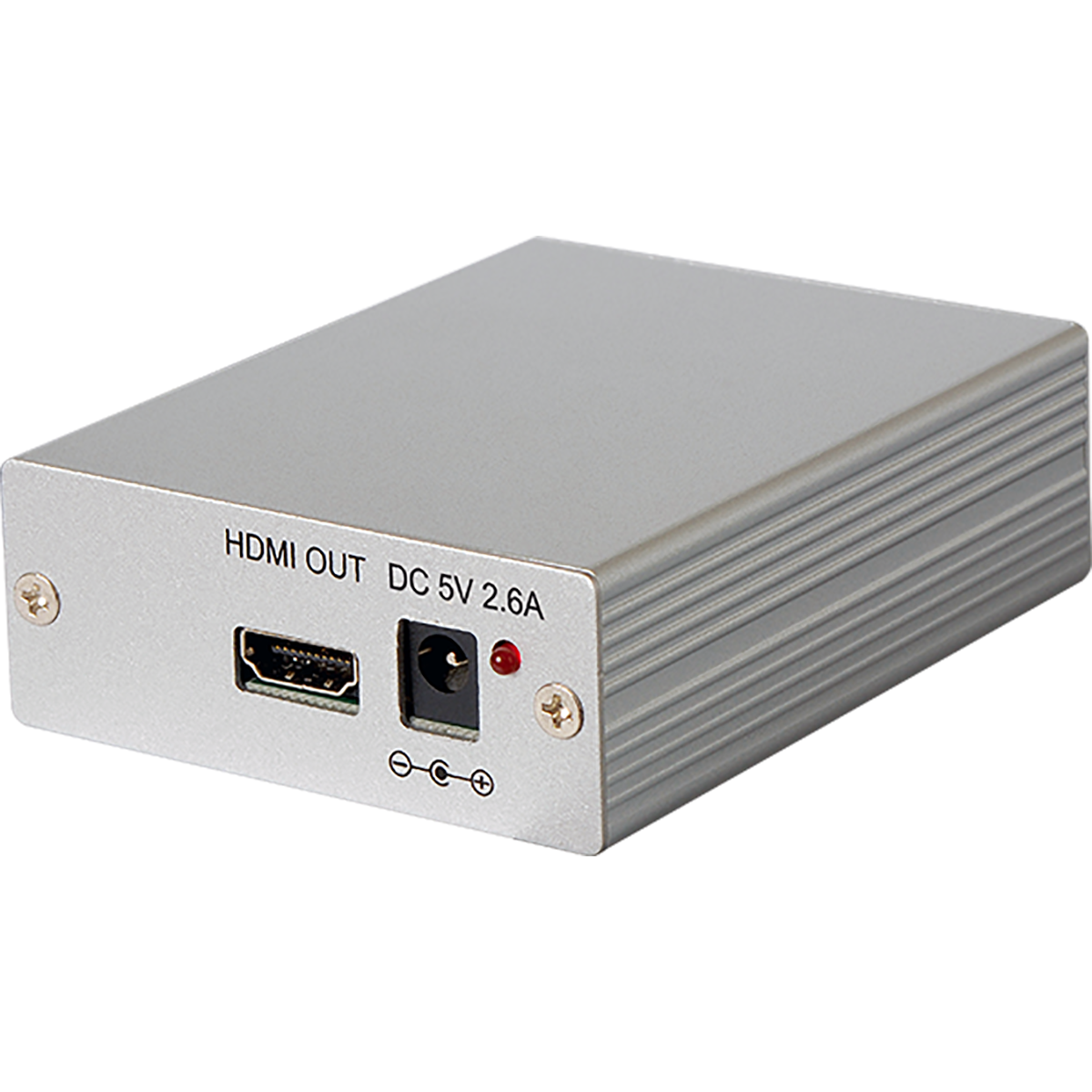

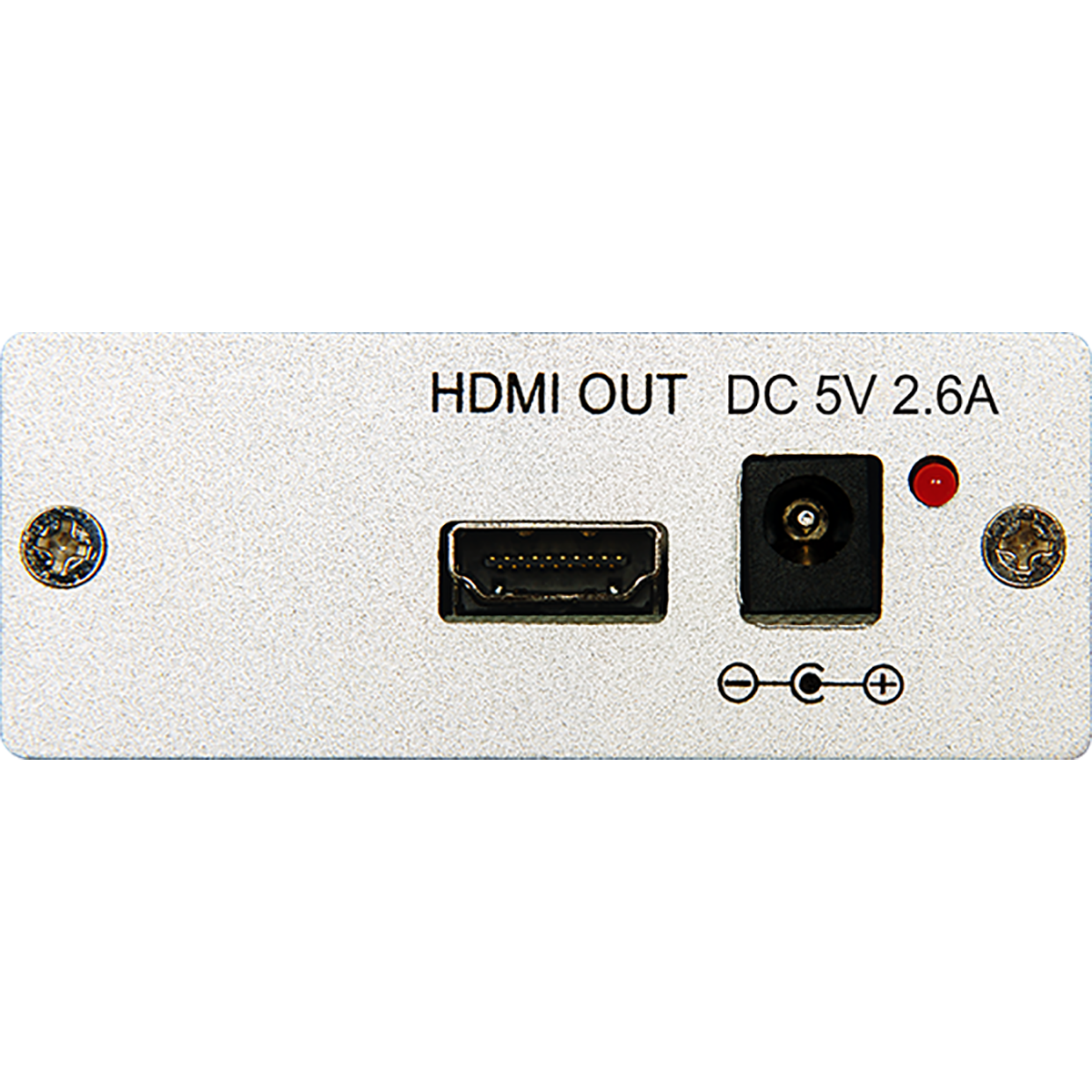

CP-280H Component with Digital Audio to HDMI Format Converter
Please sign in so that we can notify you about a reply
The component with digital audio to HDMI format converter converts analog YCbCr/YPbPr and audio to digital HDMI format. It allows you to connect the YCbCr/YPbPr output from DVD or Set-Top-Box equipment to the digital HDMI input of the latest HD ready plasma, LCD or DLP TV. Its high bandwidth capability supports HDTV resolution up to 1080p.
Features
- It enables you to connect Set-Top-Boxes or DVDs with YPbPr/YCbCr and Toslink output to HDMI input of HD ready plasma, LCD or DLP TV
- The input format is YCbCr/YPbPr and digital Toslink audio
- HDMI 1.2 compliant
- Supports up to 1920 x 1080p @ 60 Hz
Brand:
Cypress Technology
Specifications
Product Type:
Digital Audio to HDMI Format Converter
Special Features:
It Enables You to Connect Set-Top-Boxes or DVDs with YPbPr/YCbCr and Toslink Output to HDMI Input of HD Ready Plasma, LCD or DLP TV
Includes:
One CP-280H Unit, One Switching Power Supply Adaptor, One 3 RCA to 3 RCA Cable, User Manual
Performance
Resolution:
HD:480i@60Hz, 576i@50Hz, 480pixels@60Hz, 576pixels@50Hz, 720pixels@60Hz, 720pixels@50Hz, 1080i@60Hz, 1080i@50Hz, 1080pixels@60Hz, 1080pixels@50Hz, 1080pixels@30Hz, 1080pixels@25, 1080pixels@24Hz
Input? Format? Selection:
HDMI
Inputs and Ports
Input Port Type:

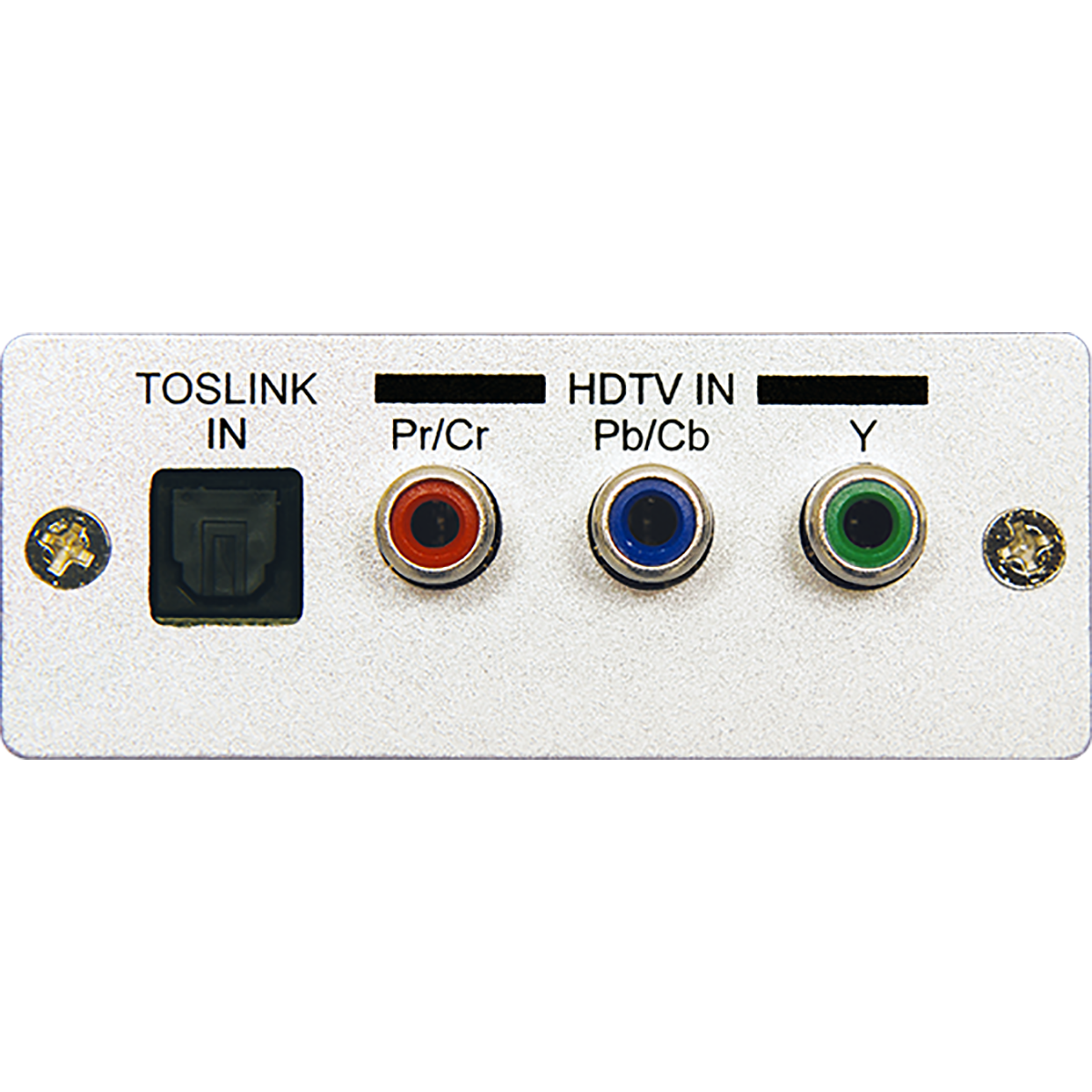

3XRCA [1XYCbCr Component / YPbPr Component], 1XTOSLINK [1XOPTICAL 2 Channel LPCM / Dolby Digital / DTS]
Input Signal Type:
YCbCr/YPbPr, Digital Toslink Audio
Power
Current Rating:
1A
Dimensions
Width:
7.6cm
Depth:
10.5cm
Height:
3cm
Weight:
500g
Other
Voltage Rating:
5V
