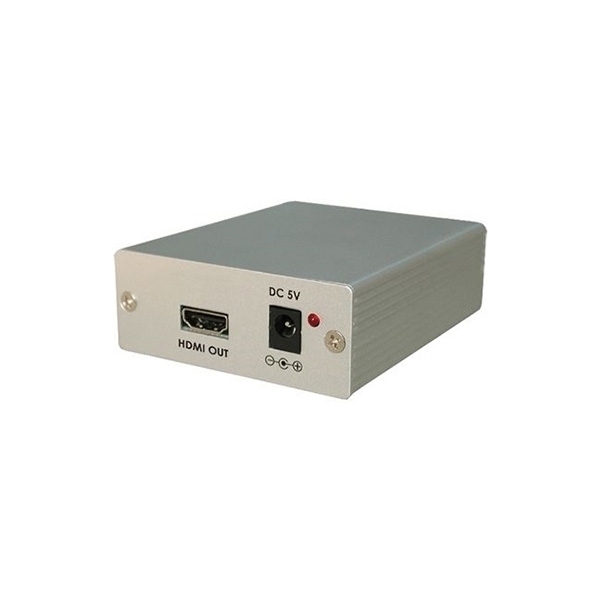

CP-268S DVI/Coaxial to HDMI Converter
Please sign in so that we can notify you about a reply
CP-268S – converter of DVI-D and S/PDIF interface signals to HDMI signal. Allows you to connect a source of DVI-D video signals and S/PDIF digital audio signals to modern devices with an HDMI input interface. Supports conversion of computer graphics signals.
- Complies with DVI 1.0, HDMI 1.2, HDCP 1.1 specifications
- Supports resolutions up to 1600×1200, 1080p
- Performs frequency response correction and restores signal level
- Supports LPCM, Dolby Digital 5.1, DTS 5.1 digital audio formats
- Allows you to connect DVI-D and S/PDIF signal sources to devices with an HDMI interface at the input
- The digital audio input is also integrated into the HDMI data stream
- The converter automatically recognizes the type of color space of the input signal
Brand:
Cypress Technology
Product Type:
DVI/Coaxial to HDMI Converter
Specifications
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Silver
Special Features:
Fully HDCP Compliant, Easy to Install and Operate
Chassis Material:
Aluminium
Minimum Operating Temperature:
0°C
Performance
Resolution:
PC:VGA@60Hz/72/75/85Hz, SVGA@60Hz/72/75/85Hz, XGA@60Hz/70/75/85Hz, SXGA@60Hz/75/85Hz, UXGA@60Hz, SD/HD: 480i/pixels@60Hz, 576i/pixels@50Hz, 720pixels@50Hz/60Hz, 1080i@50Hz/60Hz, and 1080pixels@24/50/60Hz
Inputs and Ports

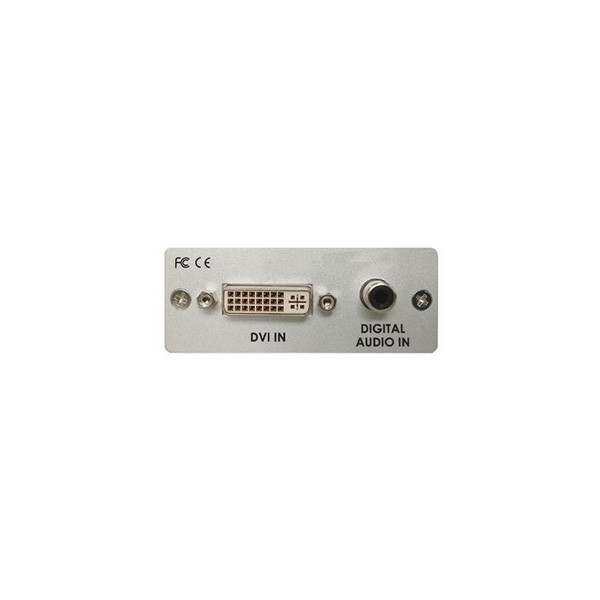

Input Port Type:
1xDVI, 1xCoaxial (S/PDIF)
Input Signal Type:
HDMI
Power
Current Rating:
1A
Dimensions
Width:
10.5cm
Depth:
7.6cm
Height:
3cm
Weight:
188g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
