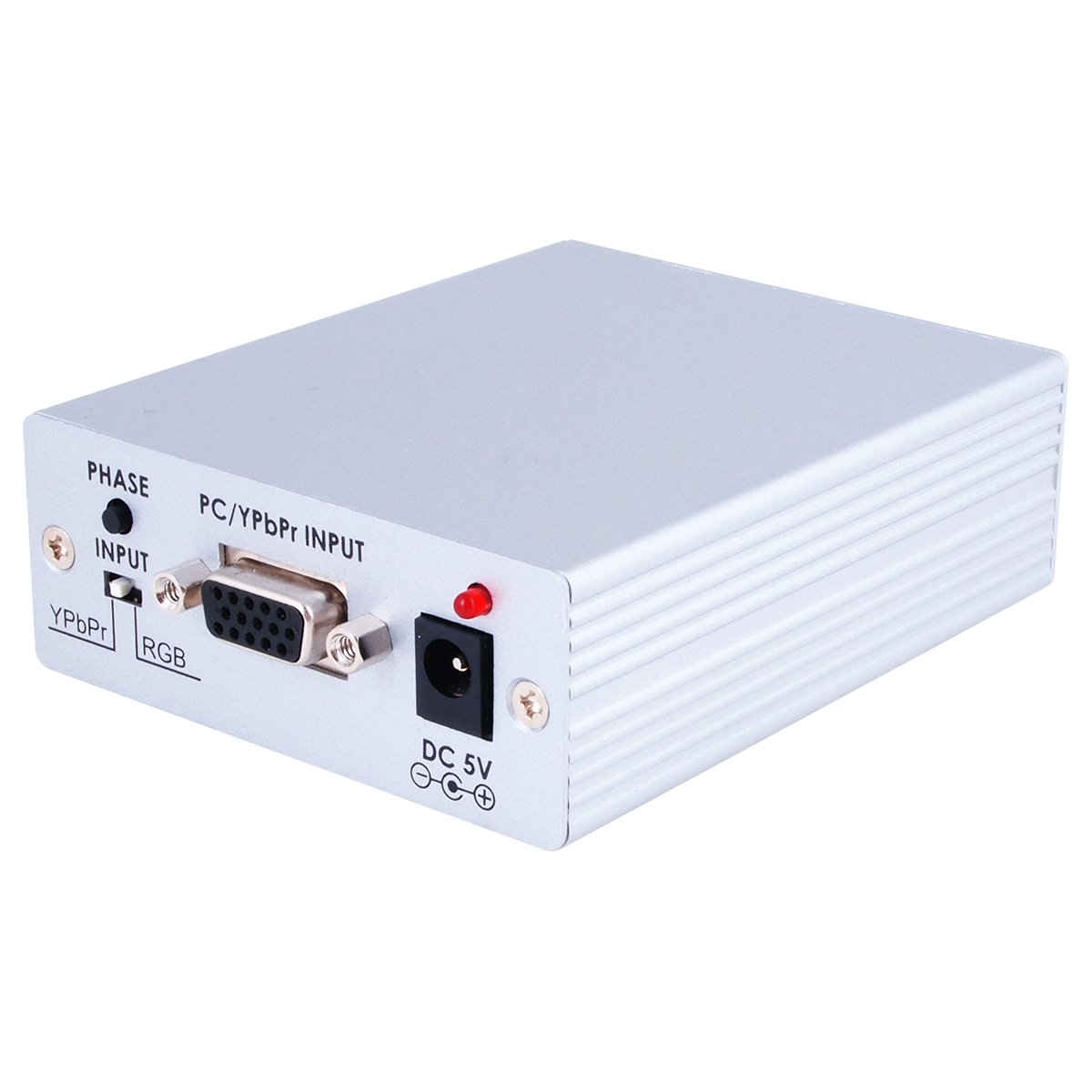

CP-1261HS PC/YUV to HDMI Format Converter with Audio
Please sign in so that we can notify you about a reply

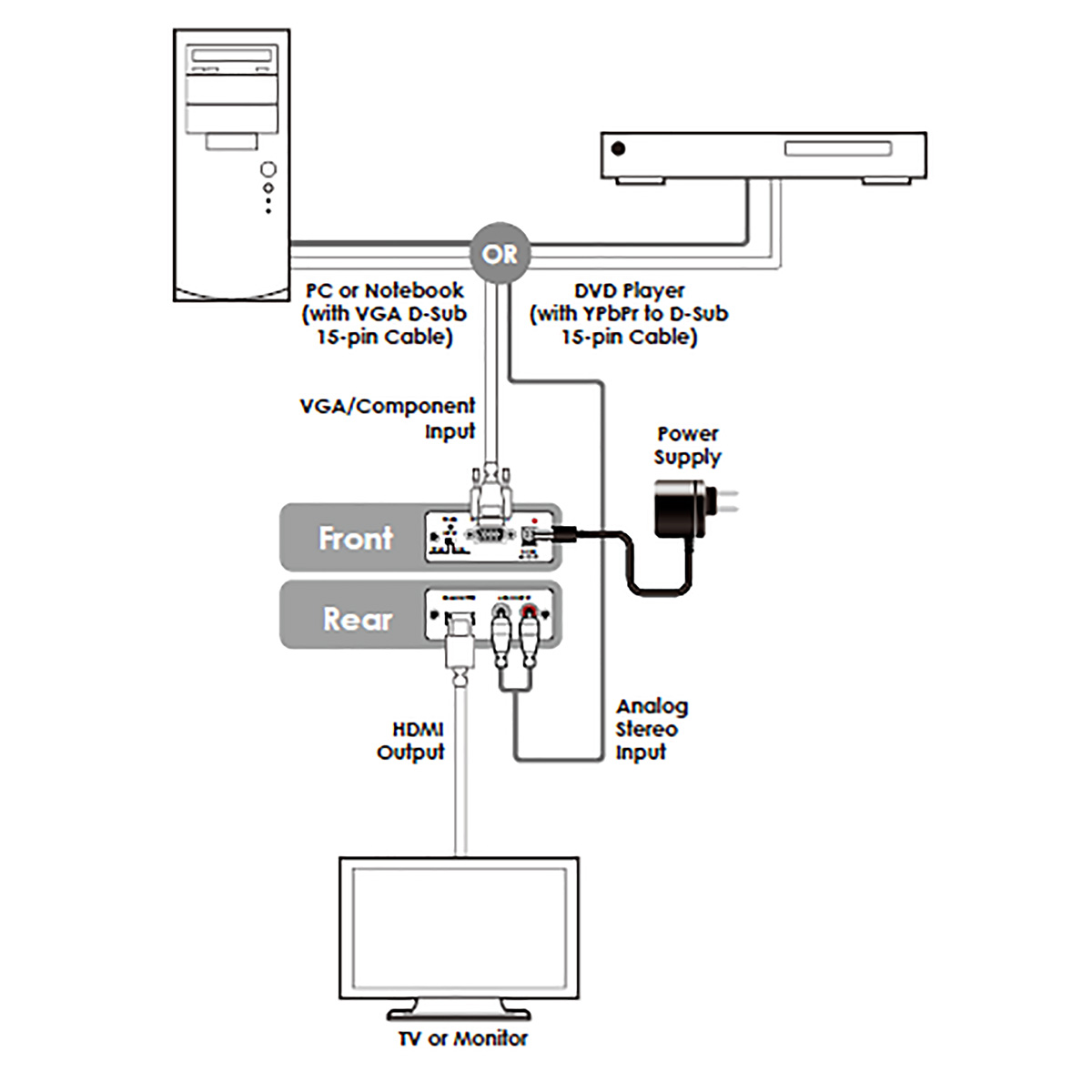

The PC/YUV to HDMI Format Converter allows analog PC RGBHV or YUV signals to be converted to digital HDMI format with embedding of analog stereo audio at the same time. Connect your analog RGBHV/YUV output from a PC or Component Video source to the digital HDMI input of the latest HD ready plasma, LCD or DLP displays. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. Further, its phase enhancement function allows users to freely adjust phase to stabilize image quality.
Features
- Supports a wide range of YUV resolutions (480i~1080p)
- Supports analog audio 2CH (48kHz sampling rate)
- Support YCbCr to RGB color space conversion

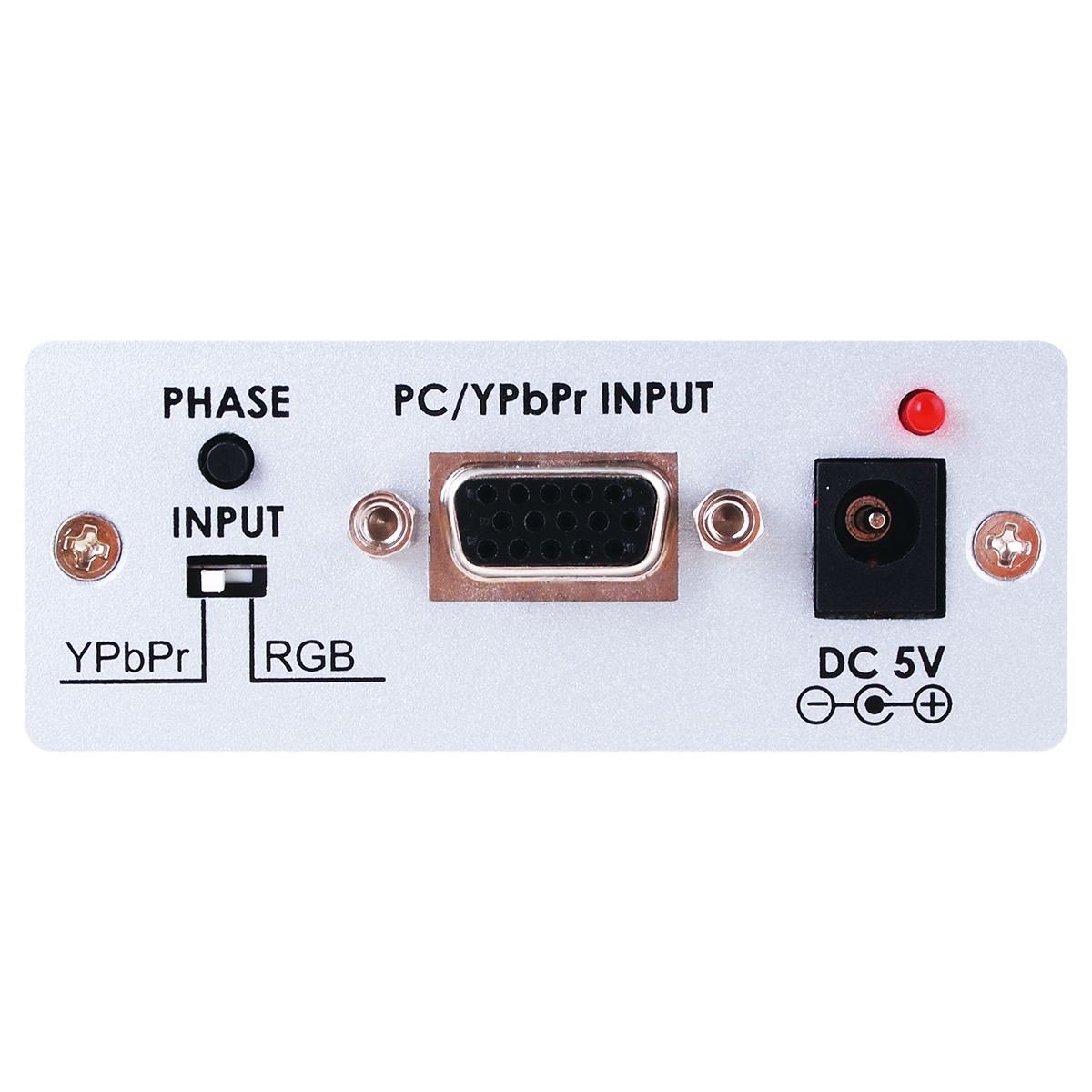

- Supports input format of RGBHV or YPbPr
- Supports input resolutions up to 1920×1200@60RB for PC and 1080p for HD
- Supports phase adjustment
Brand:
Cypress Technology
Specifications
Product Type:
PC/YUV to HDMI Format Converter with Audio
Maximum Operating Temperature:
+40°C
Colour:
Silver
Special Features:
Support YCbCr to RGB Color Space Conversion, Supports Phase Adjustment
Power Rating:
3.6W
Chassis Material:
Aluminium
Applications:
Integrate Analog PCS Into HDMI Systems, Integrate YUV Sources Into HDMI Systems, RGB Signal Conversion to HDMI Display, Component (YUV) Signal Conversion to HDMI Signal, Embedding Audio to HDMI
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1.2A
Performance
Resolution:
VGA (HD-15):1920X1080pixels@60Hz 1920X1200pixels@60HzRB(Input), HDMI:1920X1080pixels@60Hz 1920X1200pixels@60HzRB (Output)
Input? Format? Selection:
RGBHV, YPbPr
Inputs and Ports
Input Port Type:

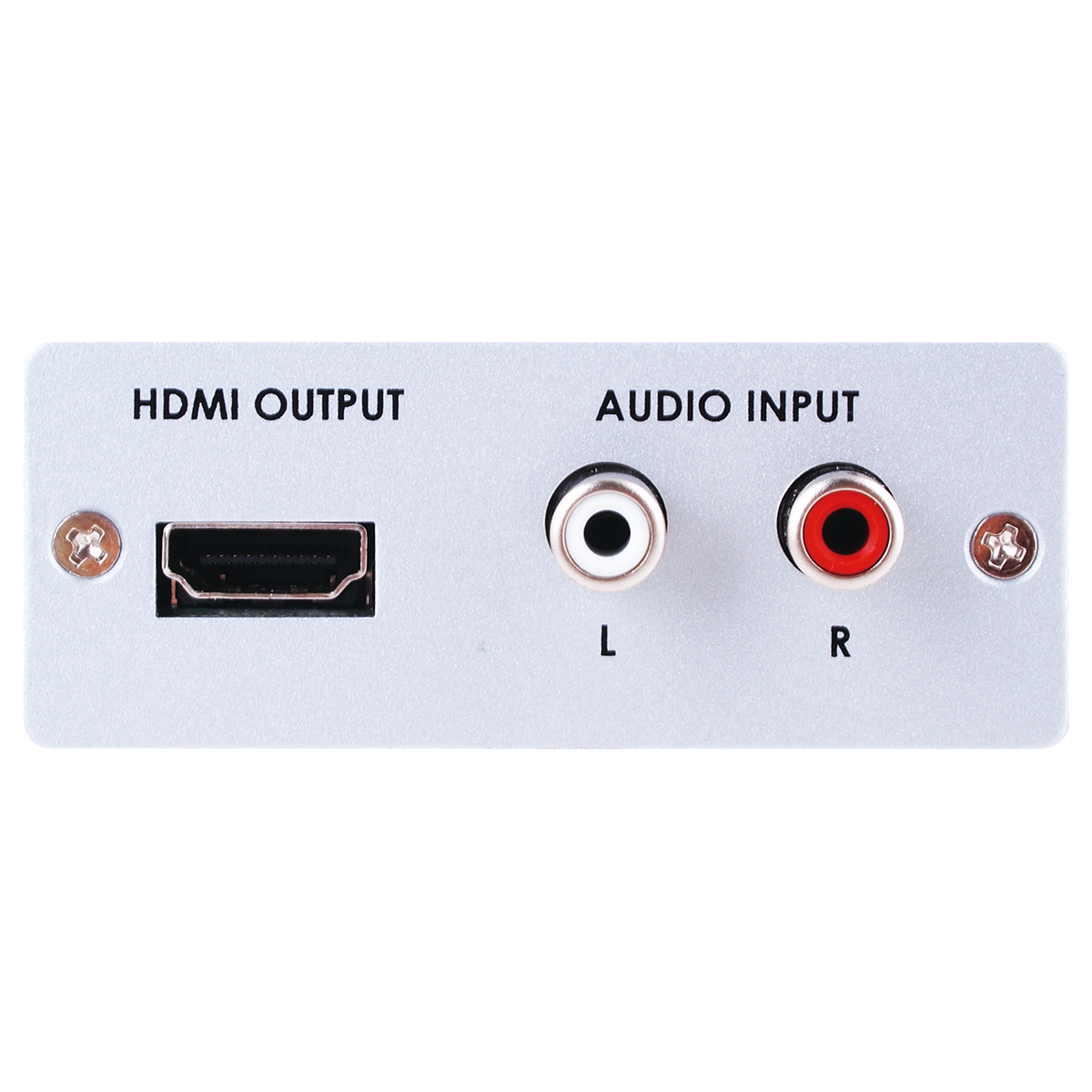

1xD-Sub 15-Pin, 1xL/R RCA Jack
Input Signal Type:
RGB
Power
Current Rating:
1.2A
Dimensions
Width:
7.6cm
Depth:
10.5cm
Height:
3cm
Weight:
190g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
