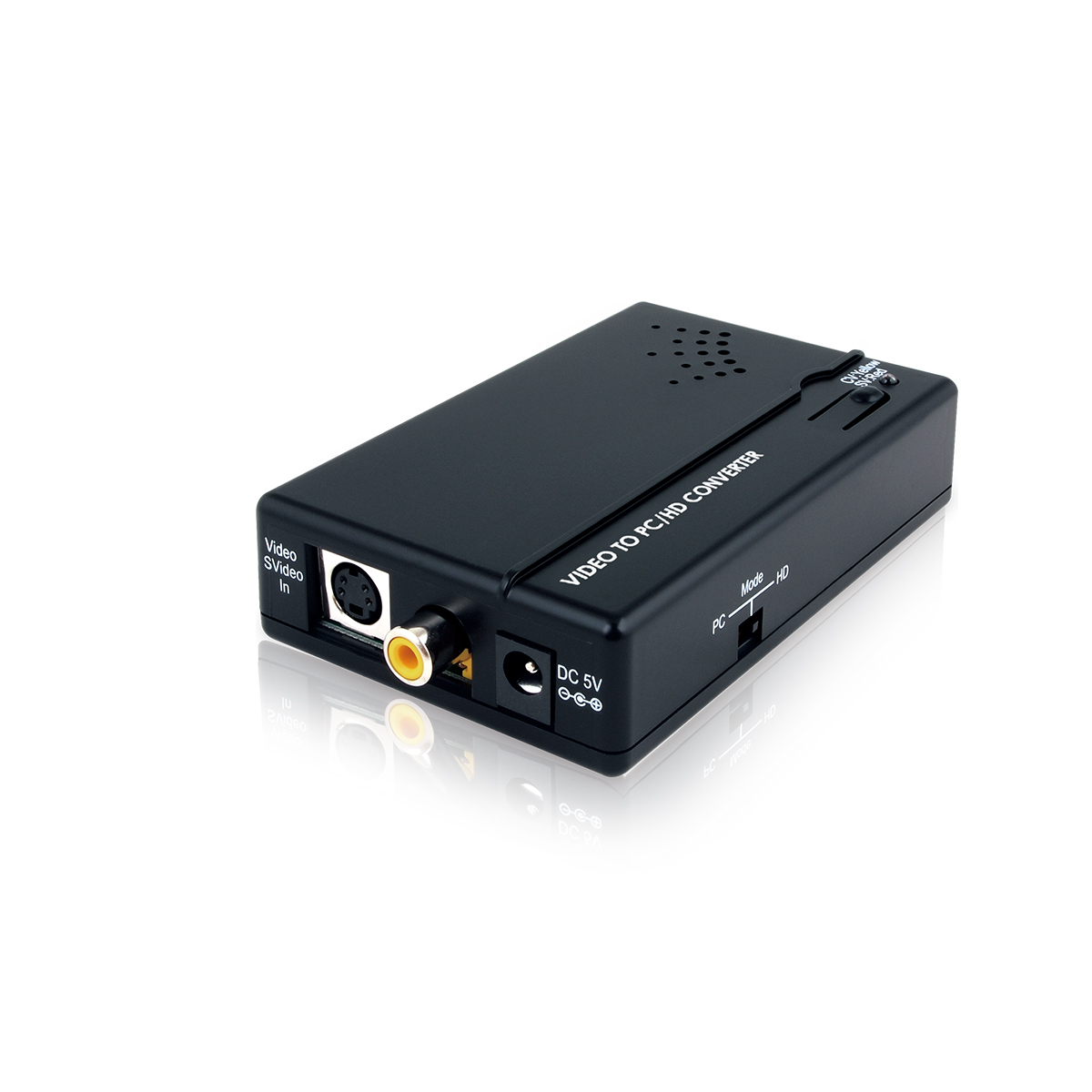

CM-398M Video to PC/HD Converter
Please sign in so that we can notify you about a reply

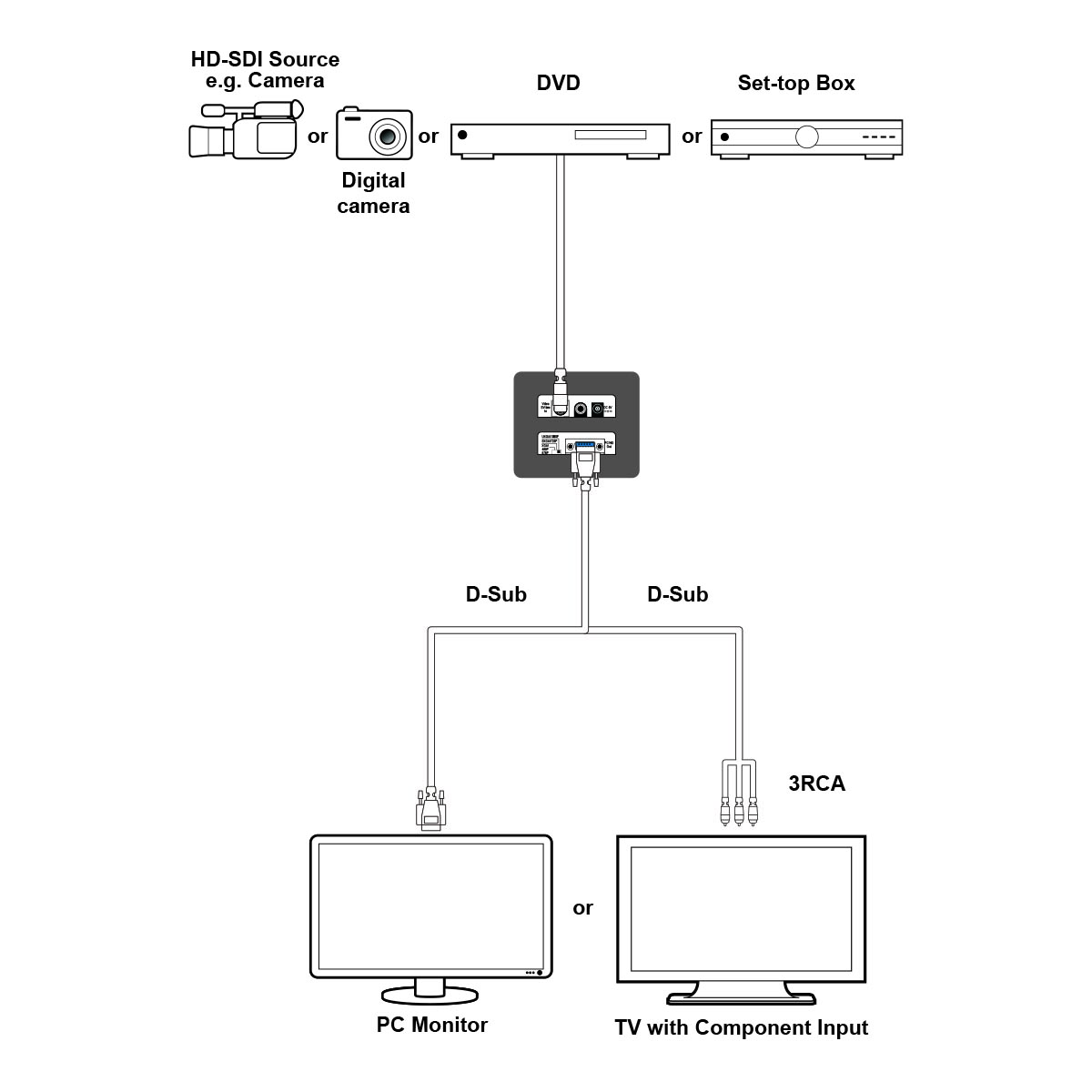

This economical Video to PC converter box that can convert CV/SV (NTSC or PAL system) to supported PC resolution like XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or Game sources on the PC monitor, this device also has an On-Screen Display that allows users to easily select their desired output resolution.
Features
- Operates in NTSC 3.58MHz and PAL system
- Can scale CV/SV to PC or Component format

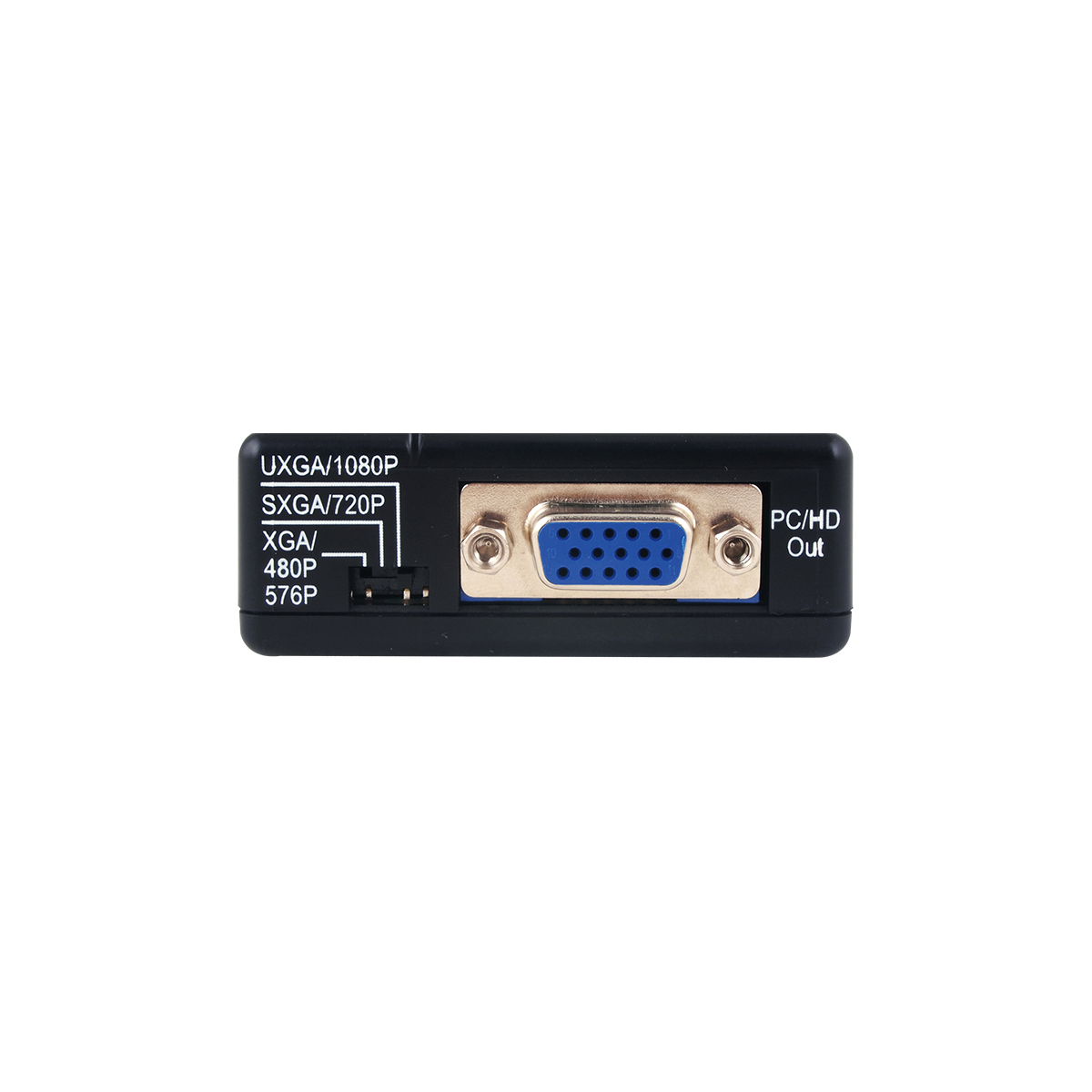

- Output resolution:
- PC resolutions: XGA, SXGA, UXGA
- Component resolutions: 480p/576p, 720p,1080p
- 3D (frame based) motion adaptive YNR/CNR noise reduction
- On-Screen Display
- Advance 3D motion adaptive de-interlace
- Automatic 2:2 & 3:2 film mode detection
- 50 to 60 Hz frame rate conversion ensures glitch-free display
Brand:
Cypress Technology
Specifications
Product Type:
Video to PC/HD Converter
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Black
Special Features:
On-Screen Display, Advance 3D Motion Adaptive De-Interlace
Power Rating:
2.5W
Chassis Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Video to PC/HD Scaler Box, D-Sub 15pin to 3 RCA Adaptor Cable, Power Adaptor, Operation Manual
Performance
Resolution:
PC:XGA/SXGA/UXGA, Component: 480p/576p/720p/1080pixels
Inputs and Ports
Input Port Type:

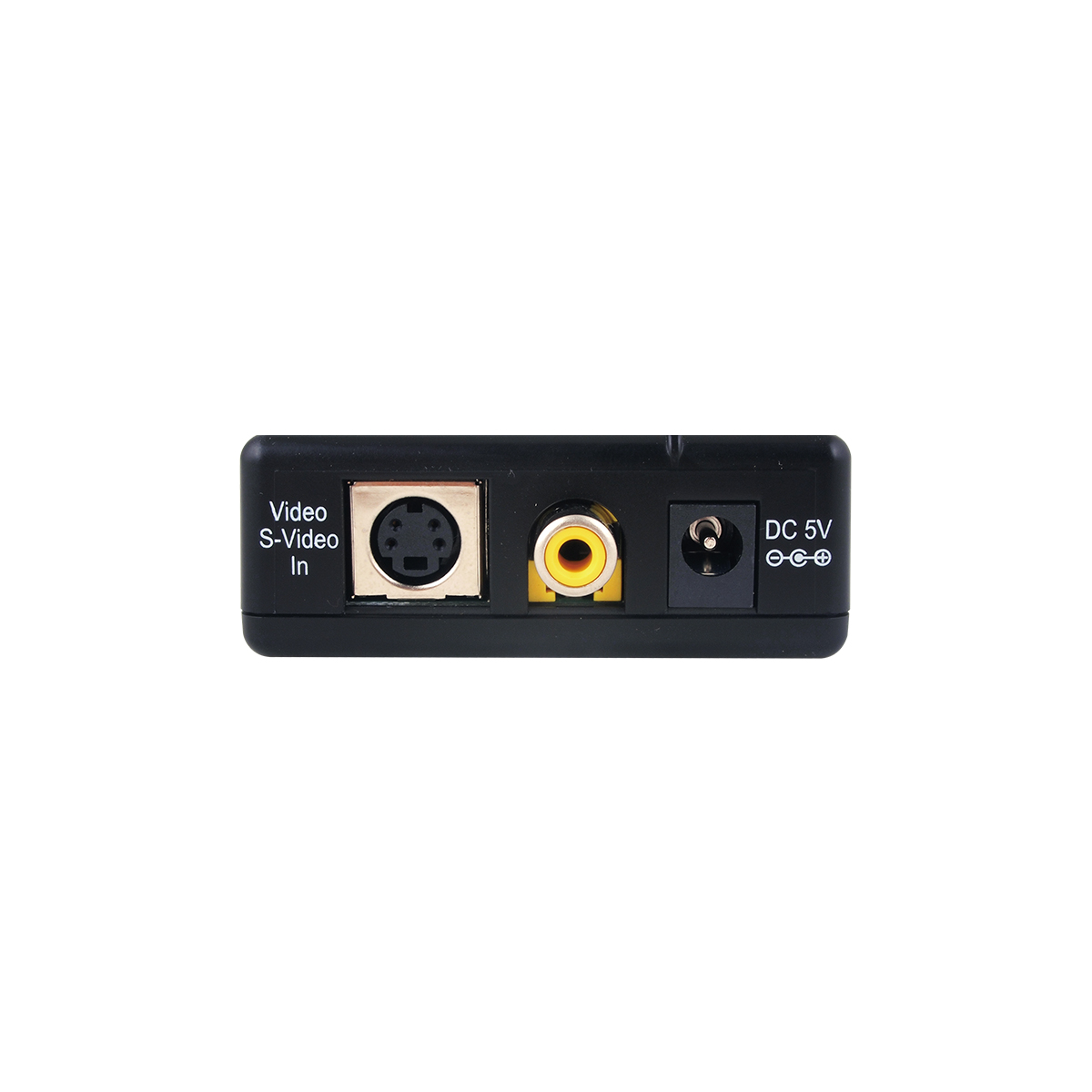

1xCV, 1xSV
Input Signal Type:
NTSC, PAL
Power
Current Rating:
2.6A
Dimensions
Width:
16.26cm
Depth:
6.4cm
Height:
3.3cm
Weight:
88g
Other
Voltage Rating:
5V DC
Standards Met:
UL Listed, CE, FCC Complaint
