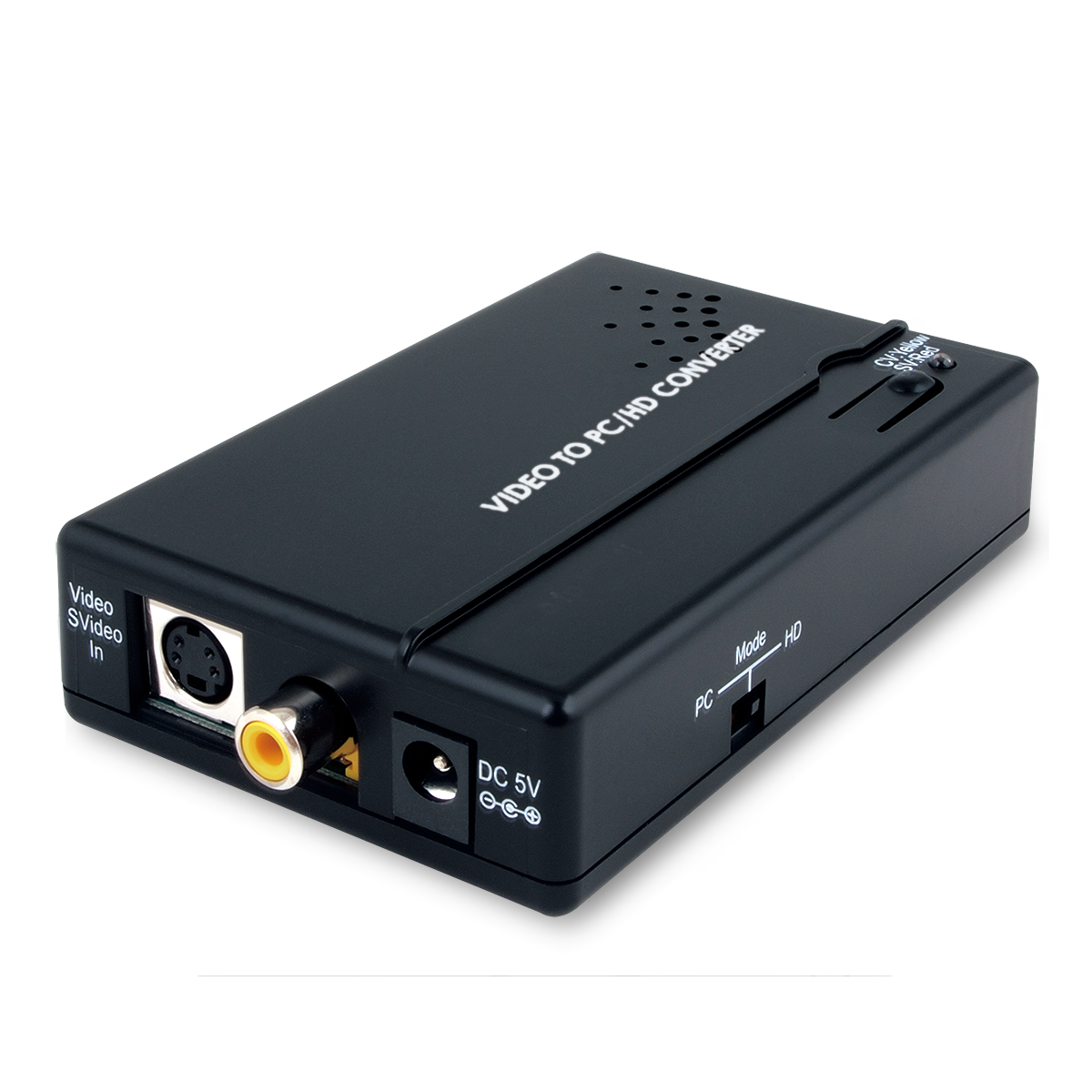

CM-398 CV/SV to PC Converter Box, AAC
Please sign in so that we can notify you about a reply
CM-398 is a composite/S-Video to VGA scaler. The device allows you to convert interlaced video signals from a composite or S-Video source to computer graphics signals in RGBHV format. The scaler supports generating signals up to 1600x1200/60.
Features- Operates in NTSC 3.58 and PAL system
- Output Frame Rates: 60Hz
- High Quality Scaling Engine
Brand:
Cypress Technology
Specifications
Product Type:
CV/SV to PC Converter Box
Silkscreen Colour:
White
Maximum Operating Temperature:
40°C
Special Features:
High-Resolution Output Picture
Power Rating:
2.5W
Chassis Material:
Plastic
Applications:
Digital Camcorders and Personal PDAs, PCI/USB Based Video Capture and TV Tuner Cards, Personal Media Players and Recorders, Smartphones & Multimedia Handsets
Humidity:
20 to 60%
Minimum Operating Temperature:
0°C
Includes:
DC Adaptor, Operation Manual
Inputs and Ports

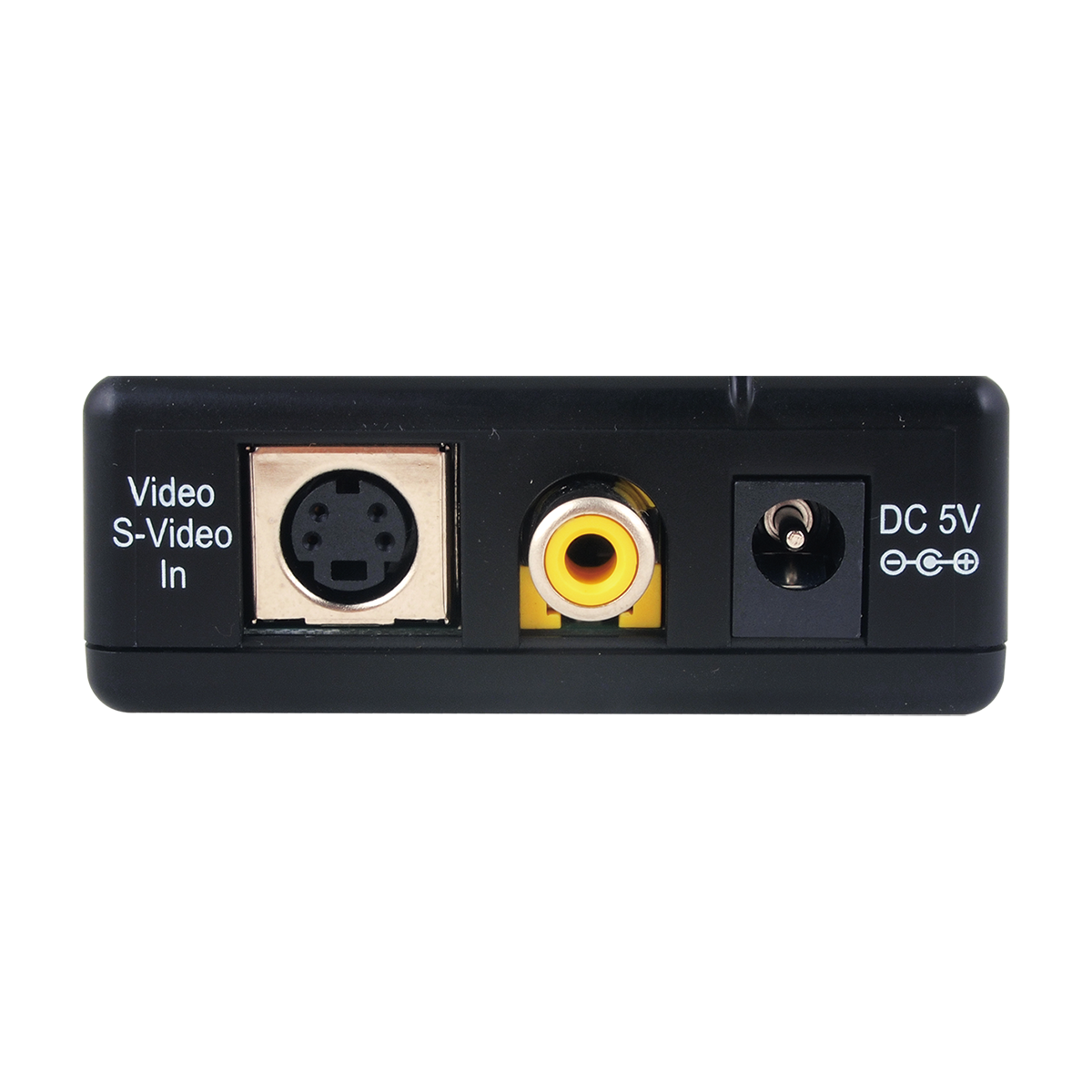

Input Port Type:
1xCV, 1xSV
Power
Current Rating:
1A
Dimensions
Width:
10cm
Depth:
6.4cm
Height:
18.5cm
Weight:
100g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
