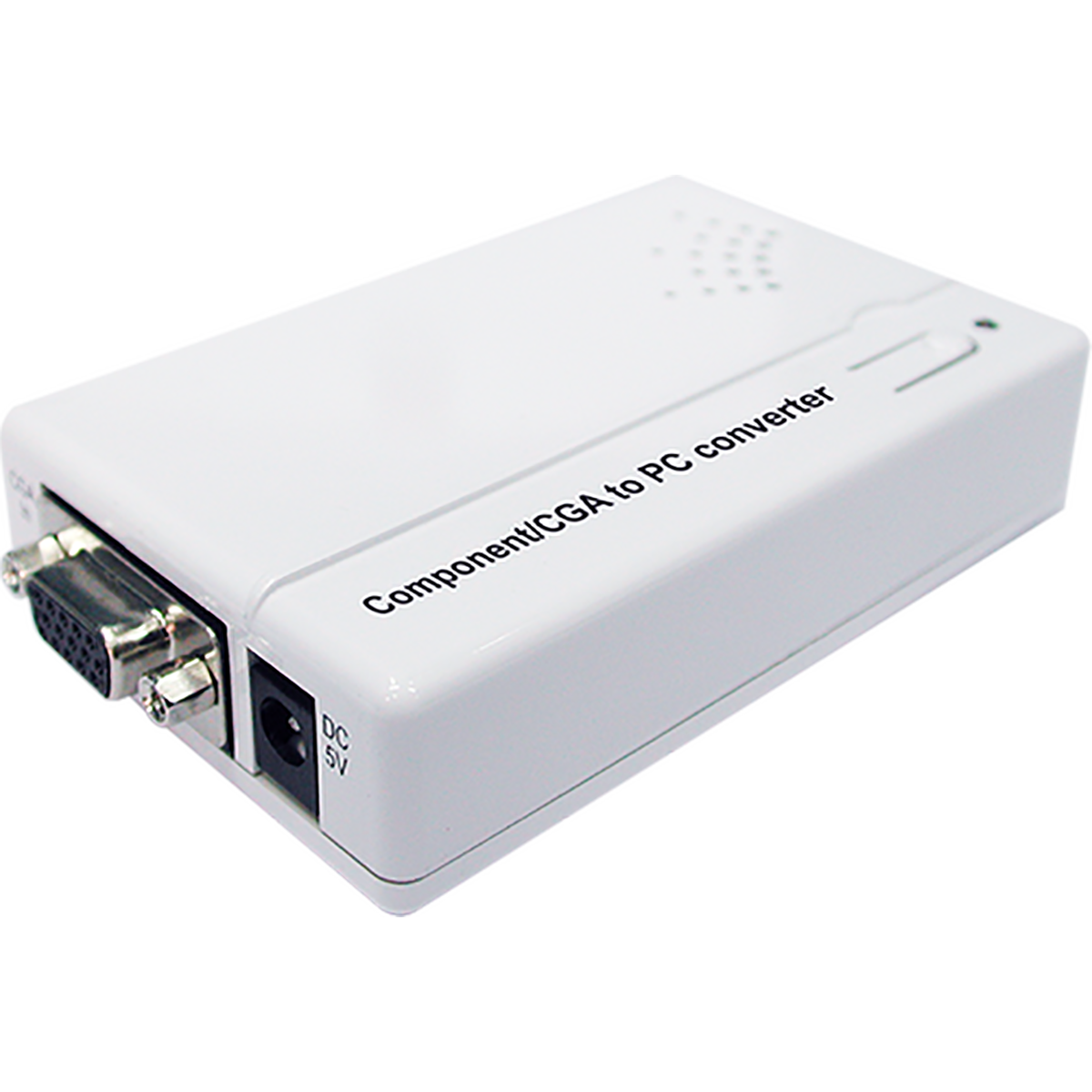

CM-397M Component/CGA to PC Converter
Please sign in so that we can notify you about a reply
This is an analog CGA (RGB) or Component (YCbCr) to PC Converter box that can scale the signal to 3 different PC modes;VGA, XGA or WXGA. It enables you to connect your RGB or YCbCr signal source such as game consoles or video players to a PC display. It provides further features such as phase & H/V position adjustment, field-invert setting and OSD display.
Features- Accepts CGA (RGB) or Component (YCbCr) format and converts to PC format
- Scales CGA or Component (YCbCr 480i/576i) signals up to VGA/XGA/ WXGA PC resolutions
- 50/60Hz frame rate conversion ensures error-free display (576i only)
- The CGA (RGB) input is auto-detected and can be RGBHV, RGB H+V
- The Component (YCbCr) input is auto-detected and can be YPbPr (Syncon- Y)
- Play video games on your PC monitors
- Supports CGA at 480i and 576i
- Supports phase and horizontal/vertical position adjustment
- Supports field-invert setting
- Supports several types of signal synchronizations, including Seperate Sync, Composite Sync, Sync-on-Green and Sync-on-Y
- High-resolution output picture
- Plug and Play design, easy to setup and there is no driver software required
- Palm- size design for easy transportation
Brand:
Cypress Technology
Specifications
Product Type:
CGA to PC Converter
Maximum Operating Temperature:
+40°C
Special Features:
Supports Phase and Horizontal/Vertical Position Adjustment, Supports Field-Invert Setting, Supports Several Types Of Signal Synchronizations, Including Seperate sync, Composite Sync, Sync-On-Green and Sync-On-Y, High-Resolution Output Picture, Plug and P
Power Rating:
3.5W
Chassis Material:
Plastic
Applications:
CGA to PC Resolution Conversion, Component (YCbCr) Video to PC Resolution Conversion, Display Video Of Older Game Consoles on Standard PC Monitors
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Component/CGA to PC Converter, D-Sub 15-Pin to 3-RCA Component Cable, 5V DC Power Supply Adaptor, Operation Manual
Performance

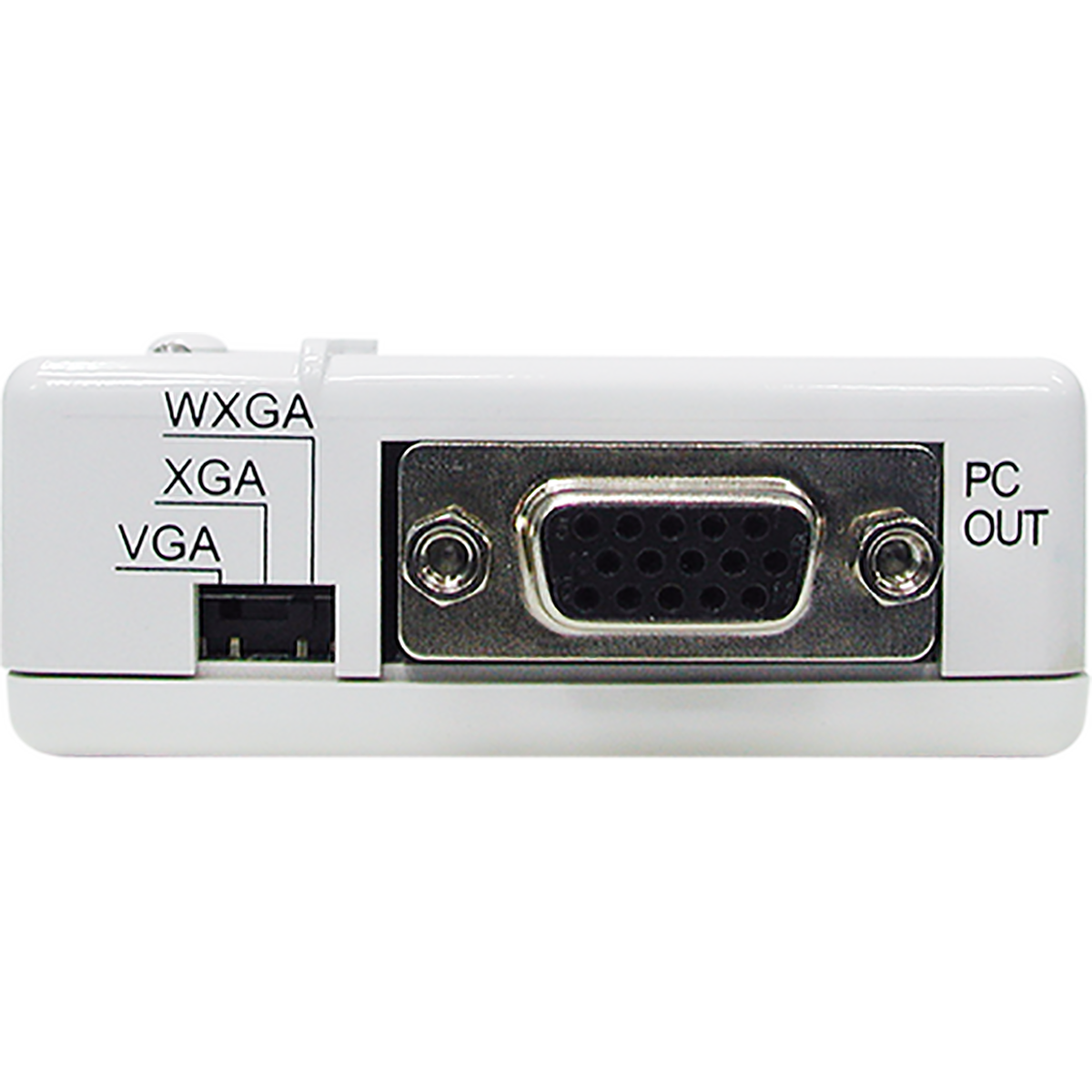

Output Timing:
VGA:640x480@60Hz, XGA:1024x768@60Hz, WXGA:1366x768@60Hz
Input? Format? Selection:
RGB, YCbCr
Inputs and Ports

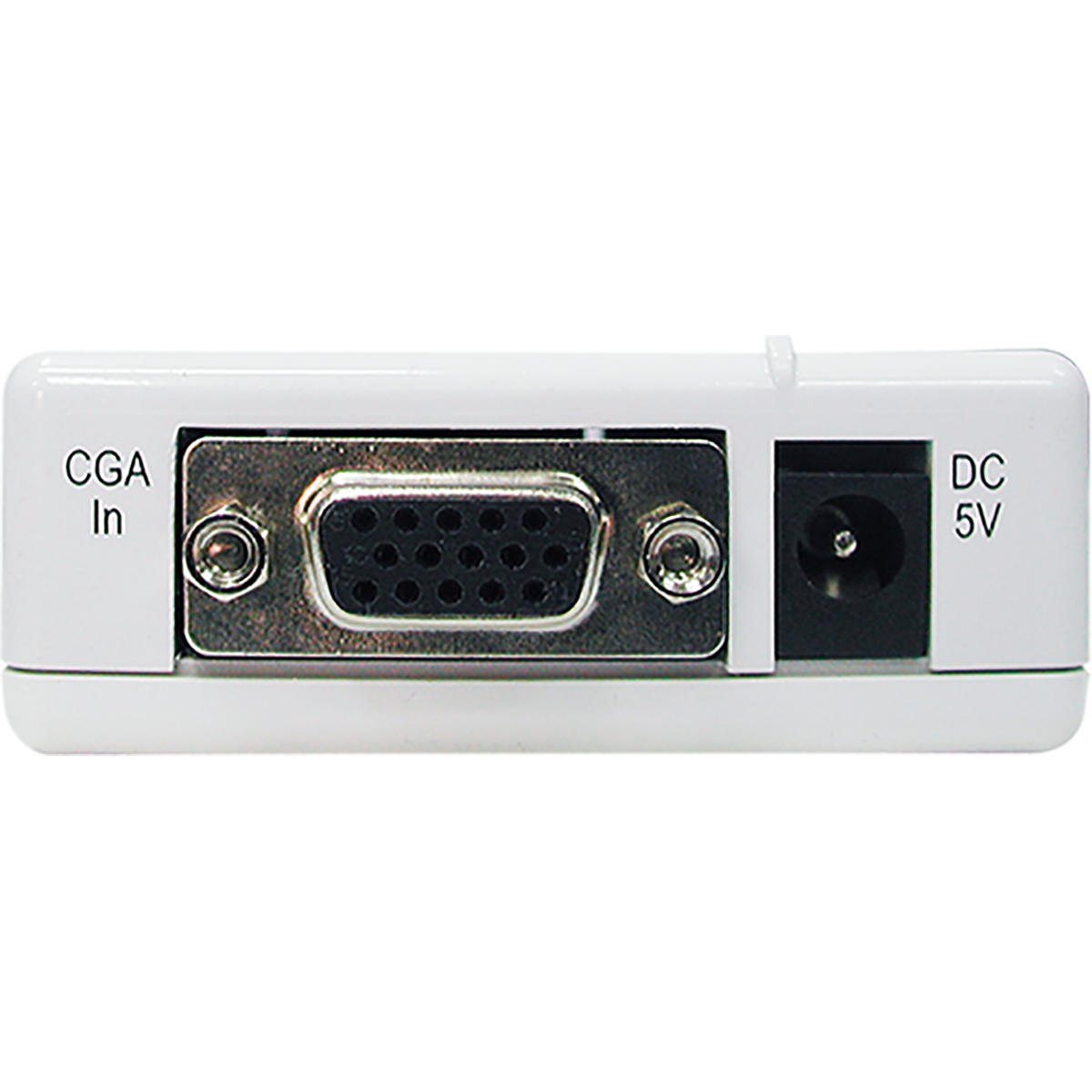

Input Port Type:
1xD-Sub 15-Pin Female
Power
Current Rating:
2.6A
Dimensions
Width:
6.4cm
Depth:
11.2cm
Height:
2.6cm
Weight:
90g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
