CLUX-SDI2DVIA SDI to DVI Format Converter
Please sign in so that we can notify you about a reply

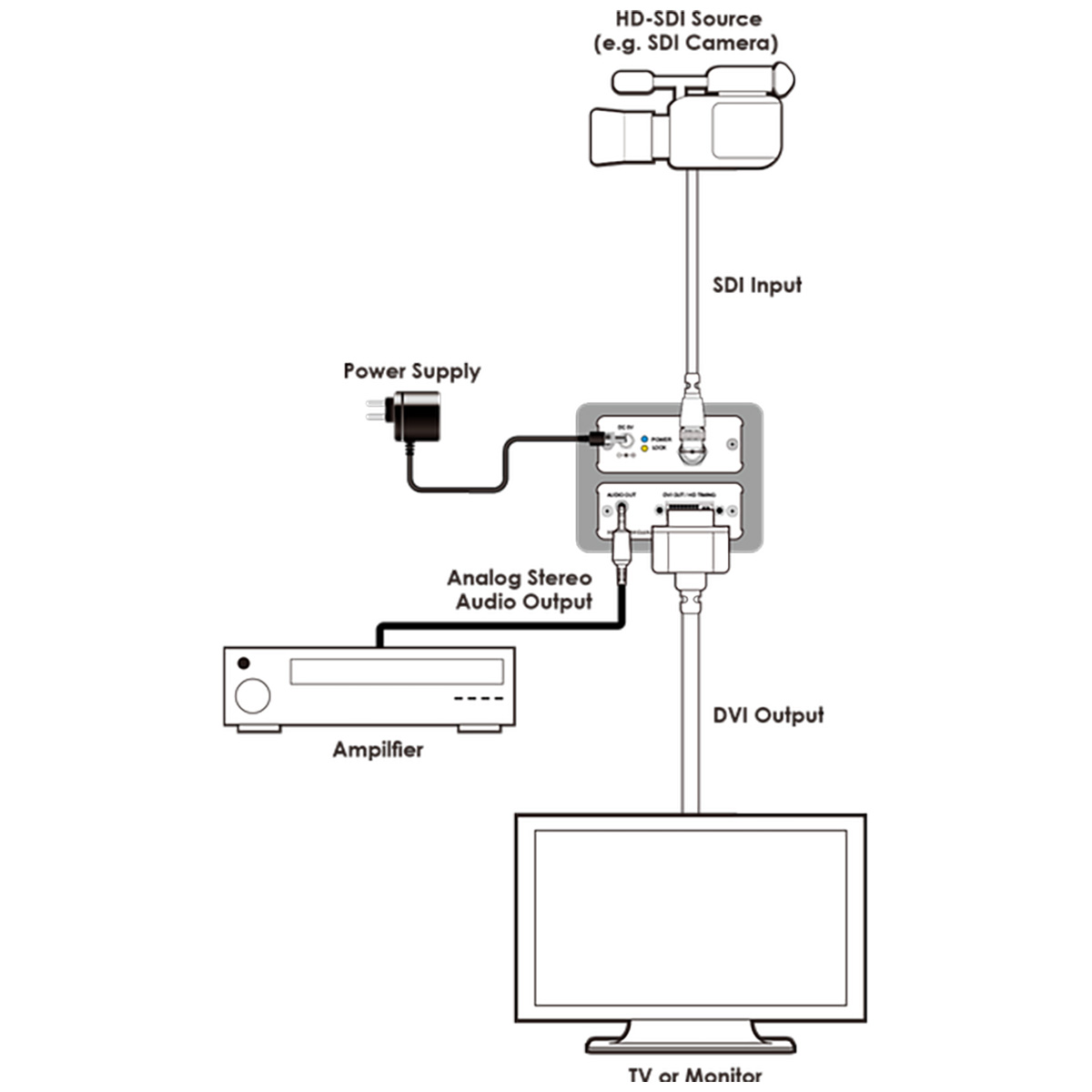

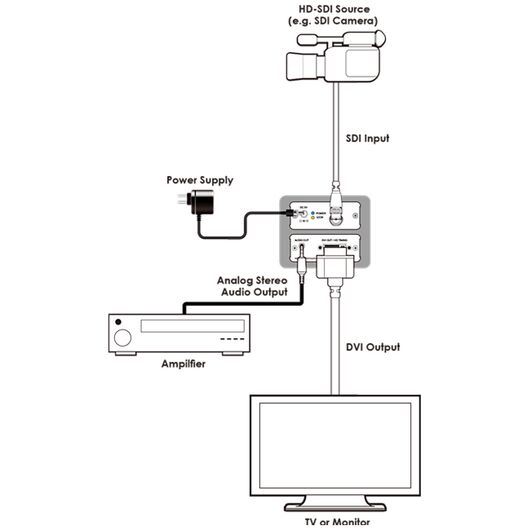

The SDI to DVI Converter allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on DVI display. Additionally, the built-in stereo Audio Out will allow the user to enjoy perfectly synchronized video and audio.
Features
- Supports the SD-SDI (SMPTE 259M-C), HD-SDI (SMPTE 292M), and 3G-SDI (SMPTE 424M/425M-A) standards
- Supports standard SDI input resolutions including: 480i@59.94Hz, 576i@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/ 50/59.94/60Hz
- Performs unscaled format conversion from SDI to HDMI/DVI (format selected based on connected sink type) with output resolutions up to 1080p@60Hz
- Up to 8 channels of extracted LPCM audio is supported when outputting HDMI
- Analog line-level audio output signal is extracted from the first audio channel pair of the SDI source
Brand:
Cypress Technology
Specifications
Product Type:
SDI to DVI Video Format Converter
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Silver
Special Features:
Performs Unscaled Format Conversion From SDI to HDMI/DVI (Format selected Based on Connected Sink Type) with Output Resolutions up to 1080pixels@60Hz, Up to 8 Channels Of Extracted LPCM Audio is Supported When Outputting hdmi, Analog Line-Level Audio O
Power Rating:
4W
Chassis Material:
Aluminium
Applications:
Smart Home/Luxury House, Smart Building or any Smart AV Installation System, Converting a 3G SDI Camera Signal to DVI Signal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
3G SDI to DVI Converter, 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
SDI:1920X1080pixels@60Hz, HDMI/DVI:1920X1080pixels@60Hz
Data Transfer Rate:
2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps, 270Mbps
Inputs and Ports
Input Signal Type:
3G-SDI
Power
Current Rating:
2.6A
Dimensions
Width:
7.85cm
Depth:
12.4cm
Height:
3cm
Weight:
194g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
