CLUX-DVI2SDIA DVI to 3G SDI Converter
Please sign in so that we can notify you about a reply

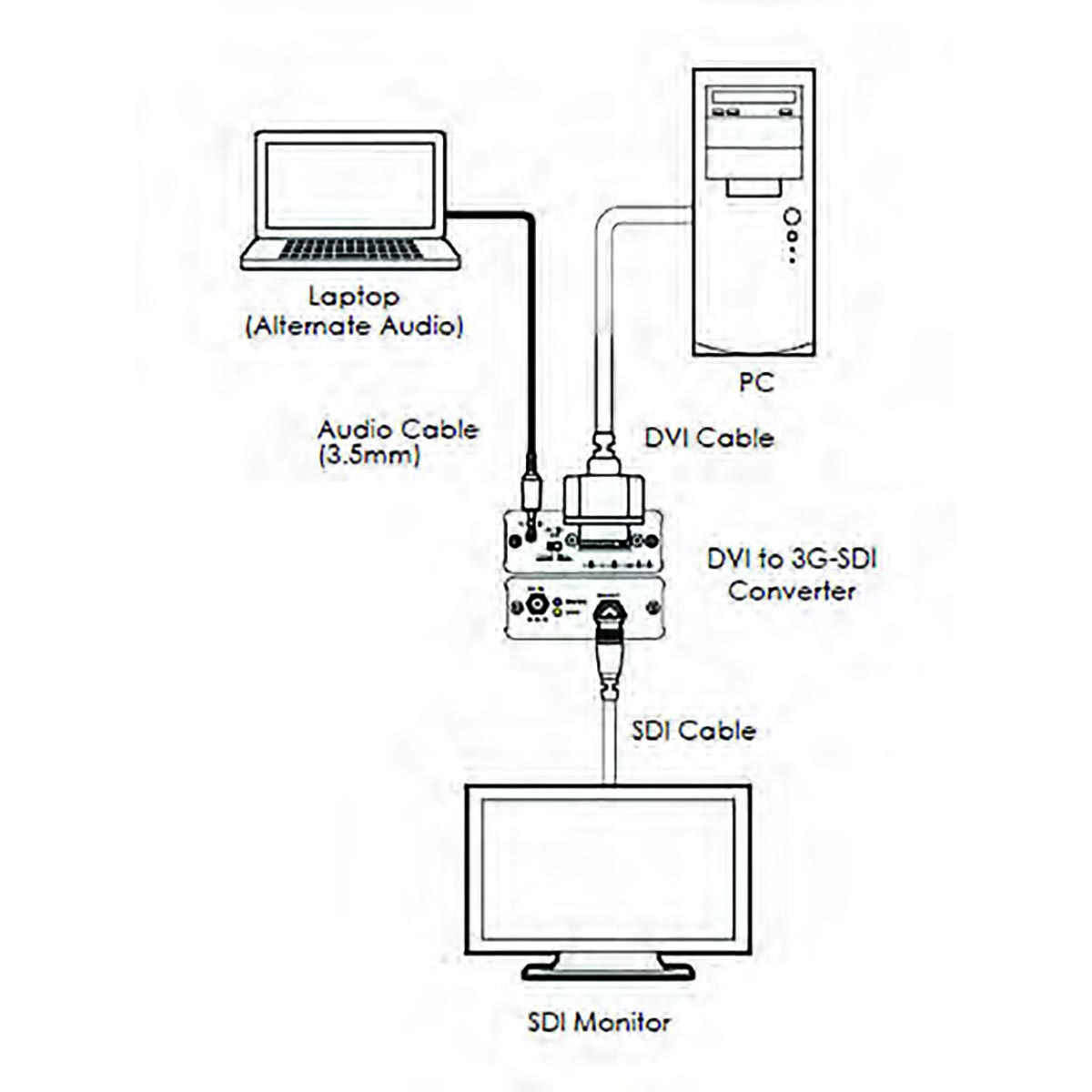

The DVI to SDI Converter allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition DVI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the DVI embedded audio, and send to the SDI output.
Features
- Shows DVI source on SDI display
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Converts DVI signals to SDI:
- 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
- 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
- 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Supports DVI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.
Brand:
Cypress Technology
Specifications
Product Type:
DVI to 3G SDI Converter
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Silver
Special Features:
Shows DVI Source on SDI Display
Power Rating:
4.3W
Chassis Material:
Aluminium
Applications:
PC/HD Signal Sending to Sdi Display, DVI Signal Conversion to 3G-SDI Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:

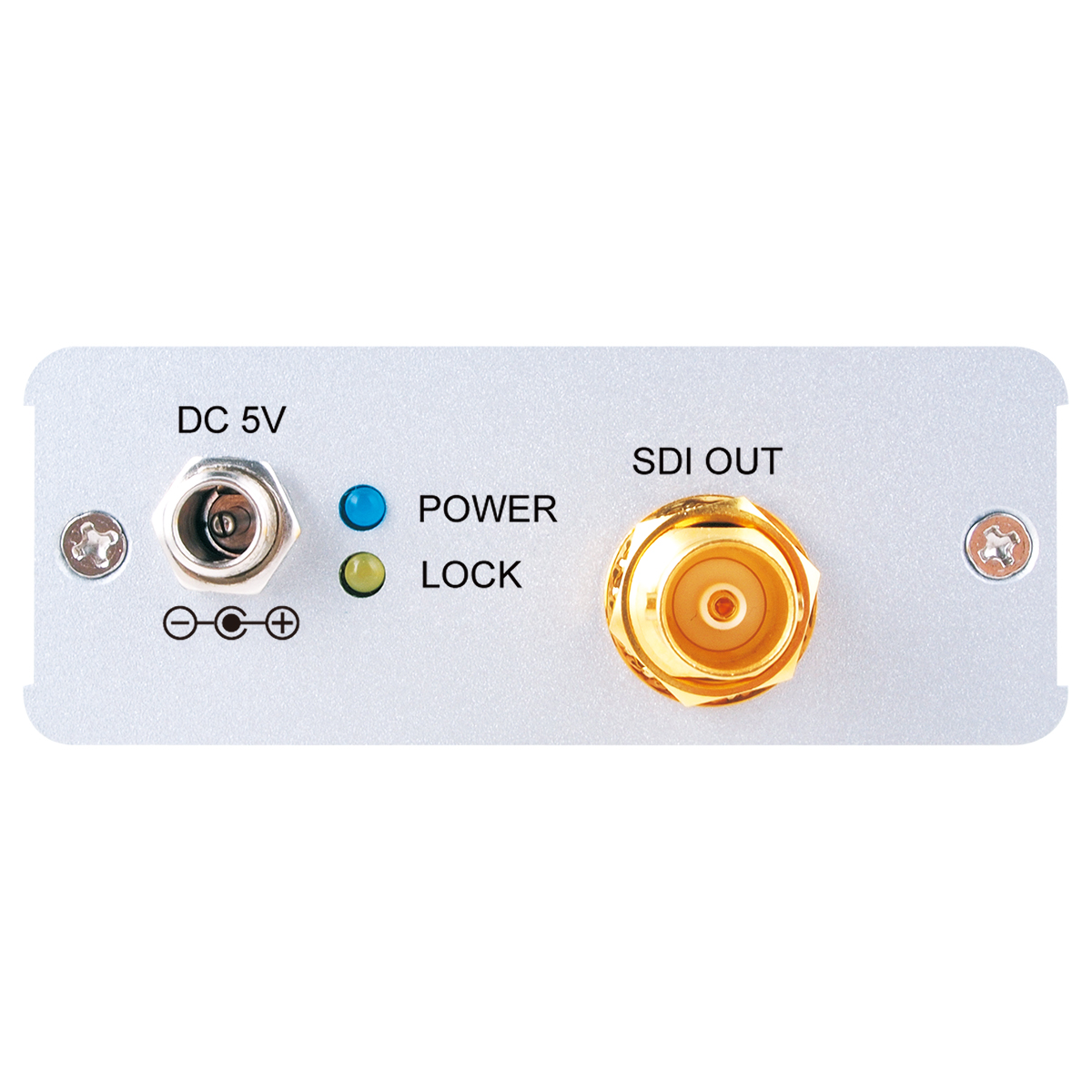

DVI to 3G-SDI Converter, 5V/2.6A DC Power Adaptor, Operation Manual

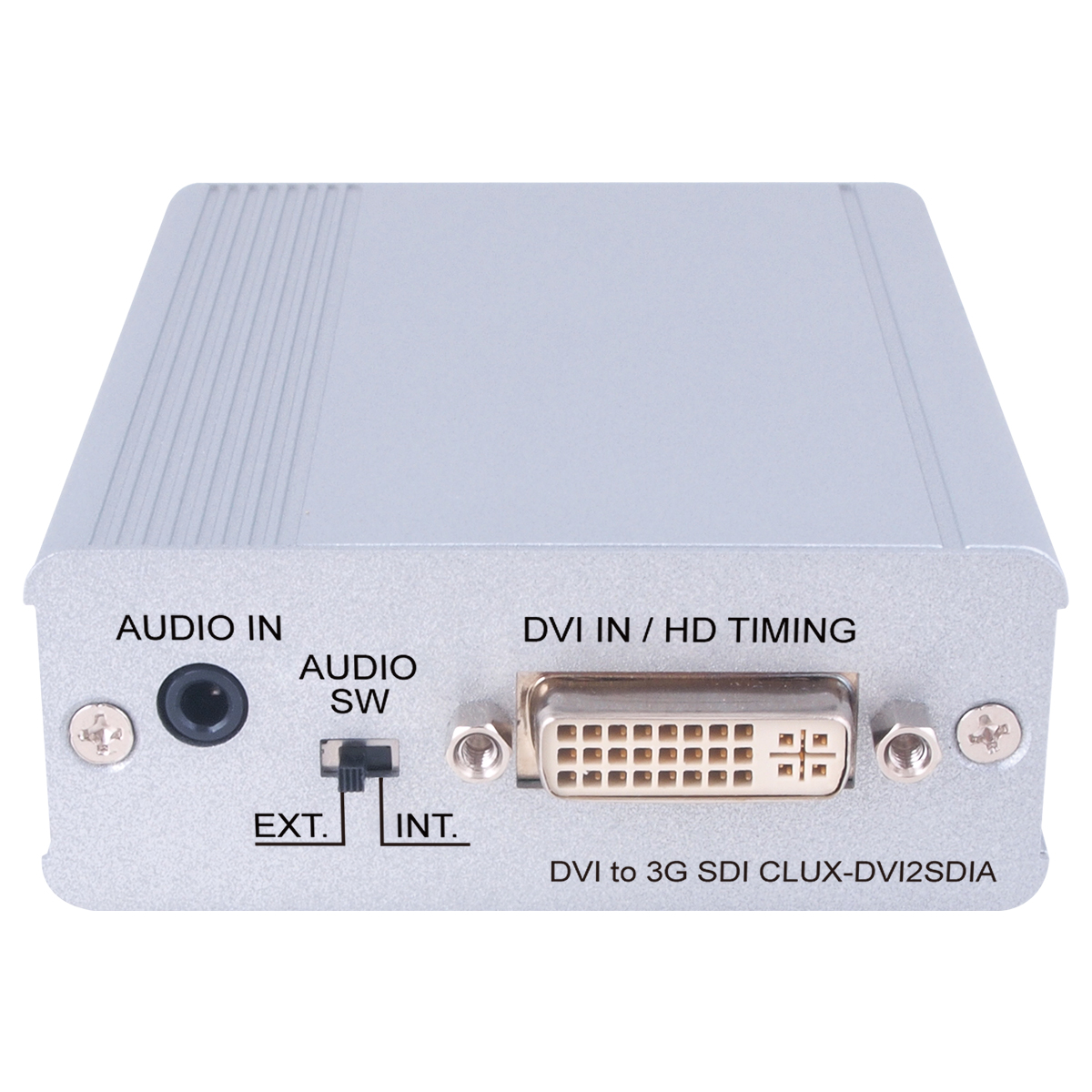

Inputs and Ports
Input Port Type:
1xDVI, 1x3.5mm Phone Jack
Input Signal Type:
DVI-D
Power
Current Rating:
2.6A
Dimensions
Width:
7.85cm
Depth:
12.4cm
Height:
3cm
Weight:
204g
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
