CH-2D3D 2D to 3D Converter
Please sign in so that we can notify you about a reply

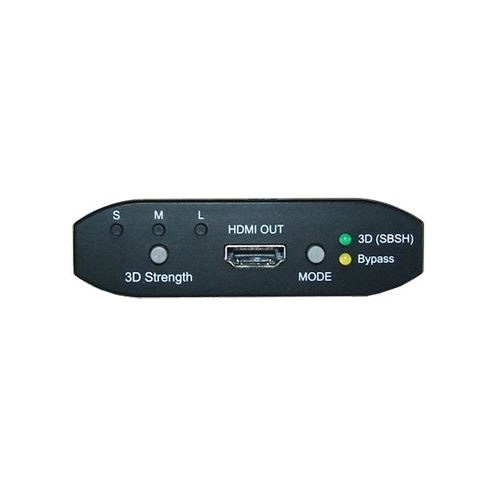

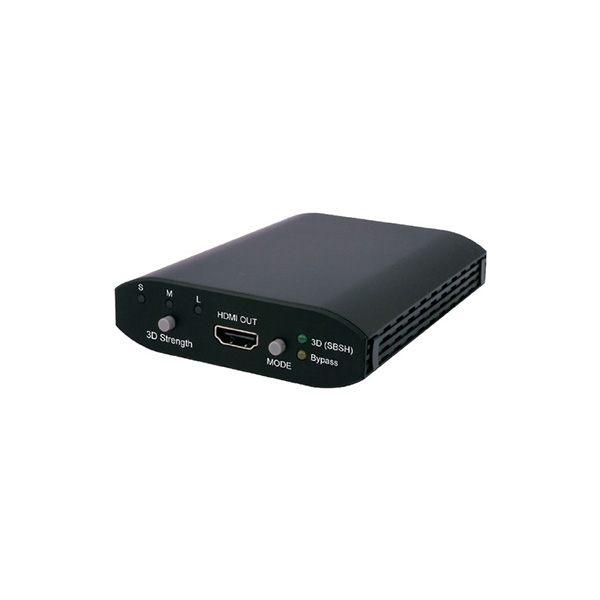

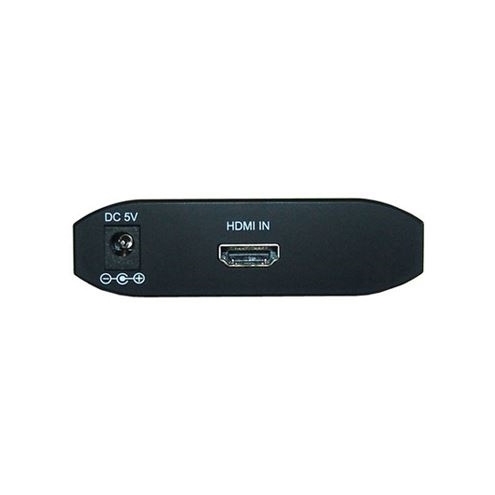

CH-2D3D is a video processor for HDMI/DVI interface signals that processes the input signal to display it in 3D SBSH (Side-by-Side Half) format. Equipped with a switch to adjust the stereoscopic depth. To output the processed signal, a 3DTV capable display with one HDMI input port is required.
- Processes any video in 2D format and allows you to view it in 3D SBSH (Side-by-Side Half) format
- Supports 1080p60, 1080p24 and 720p60 resolutions with 8-bit encoding depth
- When using the appropriate adapter, allows you to connect a DVI signal source
Brand:
Cypress Technology
Product Type:
2D to 3D HDMI Converter
Specifications
Maximum Operating Temperature:
+40°C
Silkscreen Color:
Black
Special Features:
Supports 2D to 3D Side-by-Side (half), Up to 1080pixels@60Hz/24Hz and 720pixels@60Hz 8bits, Supports Interlace Input Bypass But Does Not Support 2D to 3D, Supports Auto 3D Bypass
Chassis Material:
Plastic
Applications:
Home Entertainment, Showroom Environment
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
480pixels@60Hz, 576pixels@50Hz, 720pixels@60Hz, 720pixels@50Hz, 720pixels@100, 720pixels@120, 1080pixels@24Hz, 1080pixels@50Hz, 1080pixels@60Hz
Inputs and Ports
Input Port Type:
HDMI
Input Signal Type:
HDMI
Power
Current Rating:
2.6A
Dimensions
Width:
9cm
Depth:
12cm
Height:
3cm
Other
Voltage Rating:
5V
Standards Met:
UL Listed, CE, FCC Complaint
