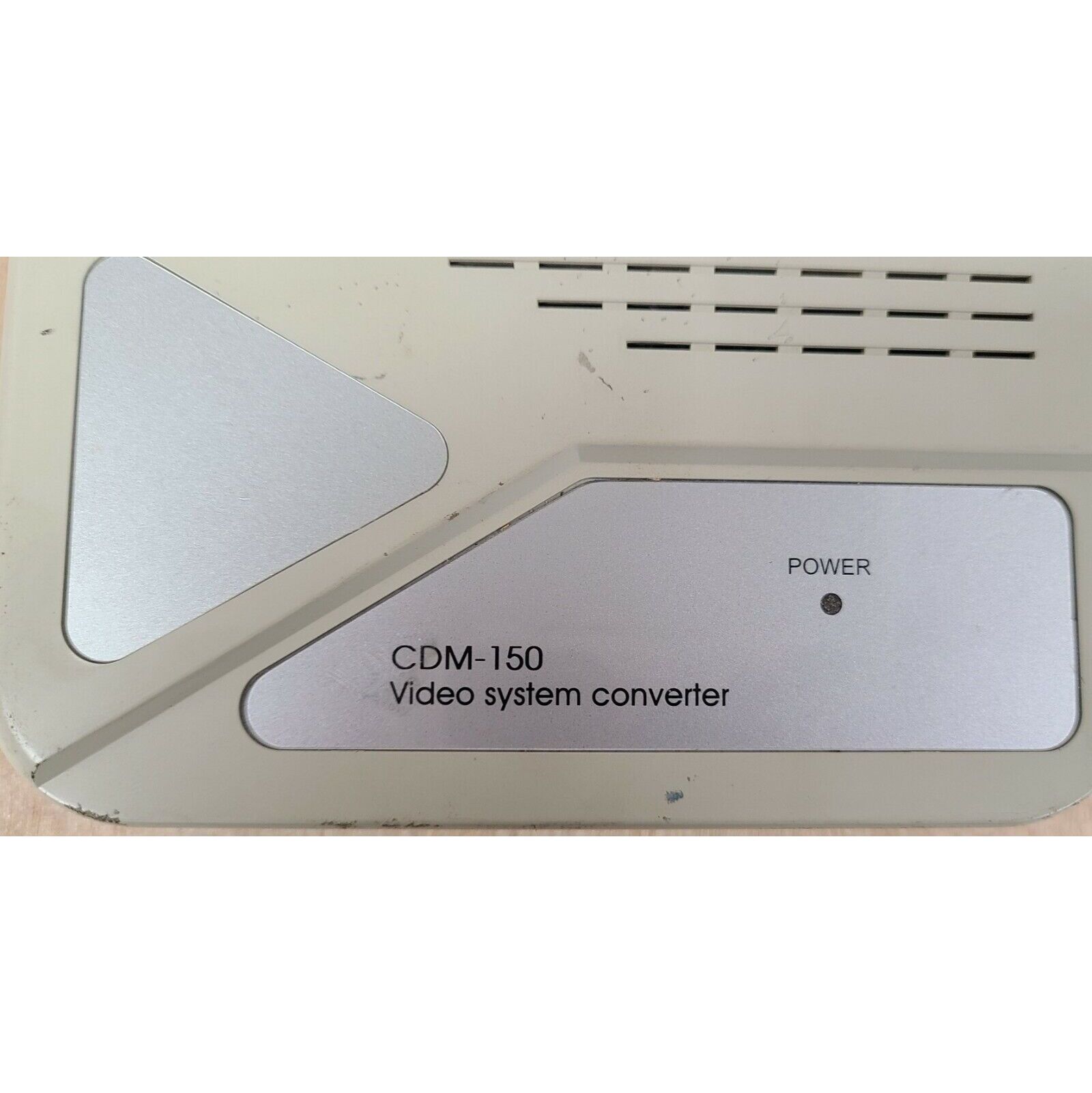

CDM-150 TV System Converter
Please sign in so that we can notify you about a reply
The Video System Converter is designed to convert video signal of different TV systems to NTSC or PAL signal selectable, for the connected display to work properly. It is a convenient device for users to connect source and display of different TV systems, with the on-panel H.POS. adjusters which is easy to fine-tune screen offset caused by display of different type. The installation is simple, just plug in video cables of input / output and power adapter, then switch between NTSC and PAL to get the preferable result.
Features- Provides color bar pattern when there is no signal present
- System is capable with 8 Mb field memory
Brand:
Cypress Technology
Specifications
Product Type:
TV System Converter
Silkscreen Colour:
Milk White
Maximum Operating Temperature:
40°C
Special Features:
System is Capable with 8 Mb Field Memory
Chassis Material:
Plastic
Minimum Operating Temperature:
0°C
Performance
Output Signal Type:
NTSC 3.58, PAL
Inputs and Ports
Input Signal Type:
NTSC, N4, PAL, PAL-M, PAL-N, SECAM
Power
Current Rating:
1A
Power Source Type:
Power Adaptor
Dimensions
Width:
14.6cm
Depth:
9.5cm
Height:
3.3cm
Weight:
144g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
