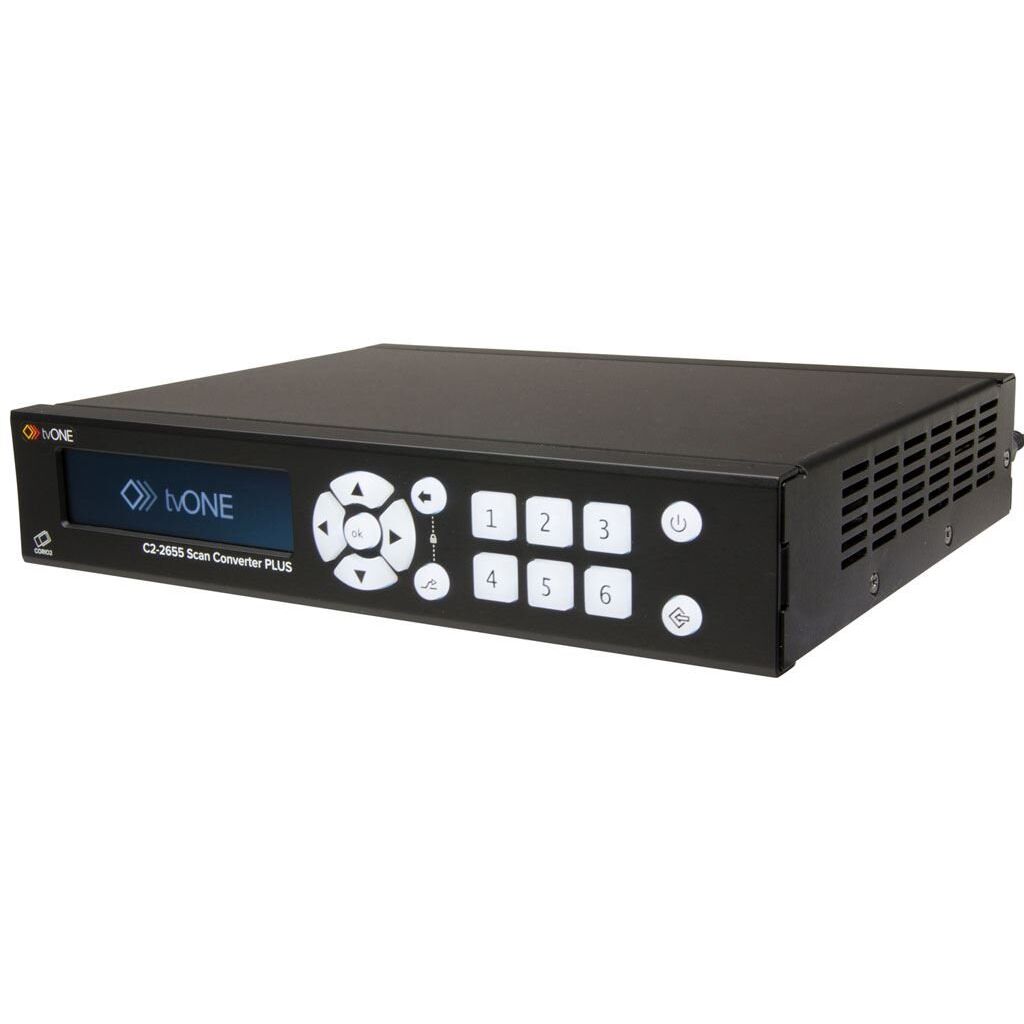

C2-2655 Scan Converter, 4xDVI, 1xYC (S-Video), 1xHDMI, 1xHD-15 Input Port Type, Black

The C2-2655 Scan Converter PLUS is tvONE’s compact and easy to use bi-directional scaler. Capable of transmitting a range of resolution outputs from 640x480 to 1280x720 as well as 1920x1080 at 47.96 Hz 1920x1080 at 60 Hz, it is ideal for most broadcasting needs. The C2-2655 is able to work with HDMI, DVIU, YC, YUV, YPbPr, and RGB inputs and outputs, along with a 4x1 audio switcher. With an easy to read color-split back, setting up the device becomes effortless. The C2-2655 can store up to 5 still images as well as 5 logos, along with 12 user selectable presets; ranging from basic video controls such as pausing to more advanced features such as keying and picture in picture. All of this is achieved by using a new OLED display. Not only does this make the menu easier to navigate, it also makes on console control easier than it’s ever been. The new menu shows what features are currently being used on top of the screen, limiting potential technical glitches caused by forgotten settings. Compact and easy to use, the C2-2655 controls the entire device using only 15 buttons. Supporting up to 12 inputs, the 6 channel controls function for 2 controls or presets each. With a simple push of a button, selections 1-6 become 7-12. To make things more convenient for the user, the C2-2655 comes with software called CORIO Control. It is an exact digital replica of the physical scaler, displayed on your computer; ensuring that control remains the same no matter the layout of the room.

Features

  • Up/Down/Cross Conversion PC to Video
  • Digital Inputs: Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
  • Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
  • Digital Outputs: SD/HD/3G-SDI, Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
  • Analog Outputs: Universal DVI* (RGB/YPbPr/YUV), CV, YC
  • Analog Input: PC to 1920x1080, HDTV to 1080p/60
  • Analog Output: PC to 1024x768, HDTV to 1080p/60
  • HDMI & DVI Input : PC to 1920x1080, HDTV to 1080p/60
  • HDMI & DVI Output : PC to 1024x768, HDTV to 1080p/60
  • Supports: NTSC, PAL, PAL-M, PAL-N
  • Motion Compensation & 3:2 Pulldown
  • Temporal Interpolation & Diagonal Interpolation
  • Automatic Incoming Resolution Detection
  • Calibrate- Automatic picture sizing of PC inputs
  • Auto-Switching – Automatically switch between connected inputs
  • 4:4:4 Full bandwidth Chroma Sampling for RGB sources
  • 4:2:2 for YC and CV sources
  • HDMI YUV support for either 4:4:4 or 4:2:2 sampling
  • Video signal parameter adjustments
  • Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
  • Stereo Audio Embedding on capable outputs (Universal DVI*, HDMI, SDI)
  • RS-232 and IP Interface for Control Software
  • Variable Image Zoom to 10X and Shrink to 10%
  • Genlock
  • Framelock
  • PIP, Chromakey and Lumakey
  • Optional Single/Dual Rackmount Kit
Brand:
tvONE
Product Type:
Scan Converter
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Special Features:
Motion Compensation, Temporal Interpolation & Diagonal Interpolation, Automatic Incoming Resolution Detection, Calibrate- Automatic Picture, 4 Full Bandwidth, Video Signal Parameter Adjustments, Variable Image Zoom
Applications:
Signal Conversion
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Includes:
(1) Operations Manual on USB Stick, (1) PC Control Software, (1) Quick Start Guide, (1) Universal Power Supply, (1) Regional Power Cable
Performance
Resolution:
1920x1200, 1080pixels
Output Signal Type:
RGBHV, RGsB, YPbPr
Output Timing:
1920x1200pixels, 1080pixelspixels
Input? Timing:
1920x1080pixels, 1080pixels@60Hz
Data Transfer Rate:
1.485Gbps
Inputs and Ports
Input Port Type:
4xDVI, 1xYC(S-Video), 1xHDMI, 1xHD-15
Input Signal Type:
RGBHV, RGsB, YPbPr, YUV
Power
Current Rating:
1.5A
Dimensions
Width:
21.8cm
Depth:
18.9cm
Height:
4.2cm
Weight:
1.2kg
Other
Voltage Rating:
12V
Standards Met:
FCC Class B, CE, RoHS, UL, cUL, KCC, PSE, GS

C2-2655 1 (video-scalers.pdf, 164 Kb) [Download]

C2-2655 2 (Broc-C2-2X55-EU-v1_1_Web.pdf, 2,690 Kb) [Download]

C2-2655 3 (tvONE_C2-2x55_User_Manual_V1.14.pdf, 1,681 Kb) [Download]
