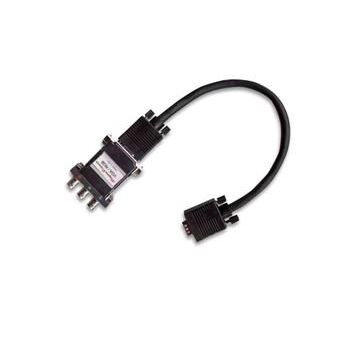

4002910-01 VGA-RGB Adapter, HDD-15 Input Port Type
Please sign in so that we can notify you about a reply
The Magenta Research VGA to RGB Video Converter converts a VGA separate sync RGBHV video signal into an RGB sync on green video signal. Perfect for use in a tri-coaxial environment to save on cabling costs with video switches, the VGA to RGB converter can also be used to interface to RGB input display devices. The VGA to RGB converter features a standard 15HD input connector and BNC coaxial connectors on the output. No switches to set, adjustments to tweak or power supply required - just plug it in and go. Measuring only 2.9" x 2.13" x 0.65", the VGA to RGB converter is small and compact.
Brand:
tvONE
Product Type:
Cross Converter
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Special Features:
Usein Tri-Coaxial Environment, Interface to RGB Input Display Devices, Plug it, Small and Compact
Applications:
Signal Conversion
Humidity:
80%
Minimum Operating Temperature:
0°C
Includes:
(1) VGA Cable
Performance
Resolution:
1600x1280pixels
Output Signal Type:
RGB
Output Timing:
1600x1280pixels@75Hz
Inputs and Ports
Input Port Type:
HDD-15
Input Signal Type:
RGBHV
Dimensions
Length:
7.4cm
Width:
5.4cm
Height:
1.6cm
Weight:
51g
