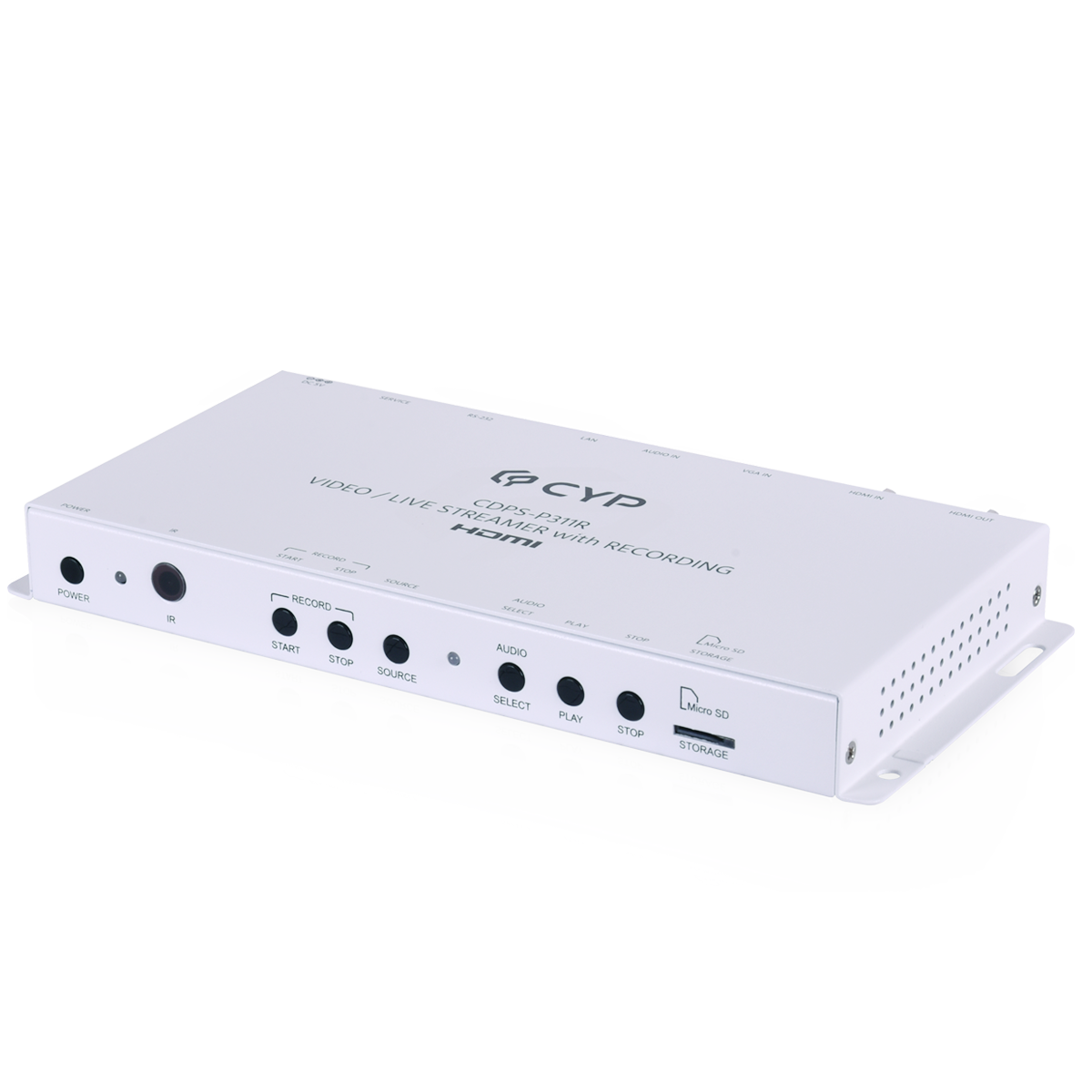

CDPS-P311R-W HDMI/VGA Video Streamer with Recording
Please sign in so that we can notify you about a reply
This Video Streaming Recorder makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video sources from cameras, PCs, video game consoles, etc. are a breeze to connect for immediate broadcast and recording. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. In addition to the standard HDMI input, a VGA input with a paired analog stereo audio input is also available as a source. An HDMI output is provided for local monitoring of the selected input source.
Features

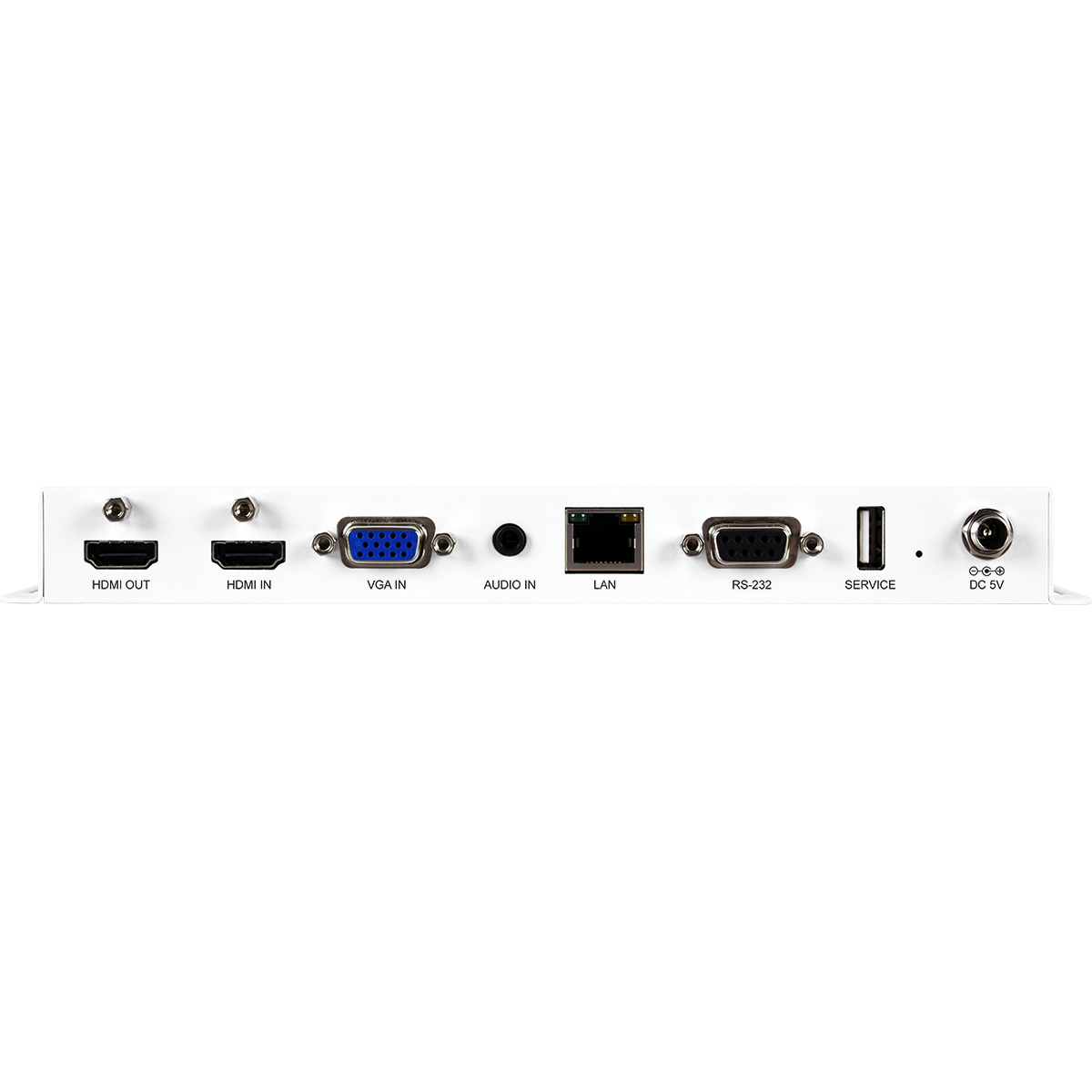

- 1 HDMI input and 1 VGA input
- 1 HDMI output (for local source monitoring)
- HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed over the Internet or recorded and will be blacked out
- HDMI input/output supports resolutions up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit)
- VGA input supports resolutions up to 1920×1080@60Hz
- Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps
- Recorded video can be stored on a locally inserted SD card, USB thumb drive, or to a designated network drive
- Can act as a streaming server (using RTP/RTSP protocols) or streaming client (using the RTMP protocol)
- Audio embedding and mixing support with the analog stereo audio input Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source
- Supports scheduled recording with an internet updated calendar
- Supports text overlays over live broadcasts including a countdown timer
- Integrated downscaling function will convert UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast and recording
- Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets
- Supports automatic input switching
- Advanced EDID management including Internal, External & User configured EDID selections

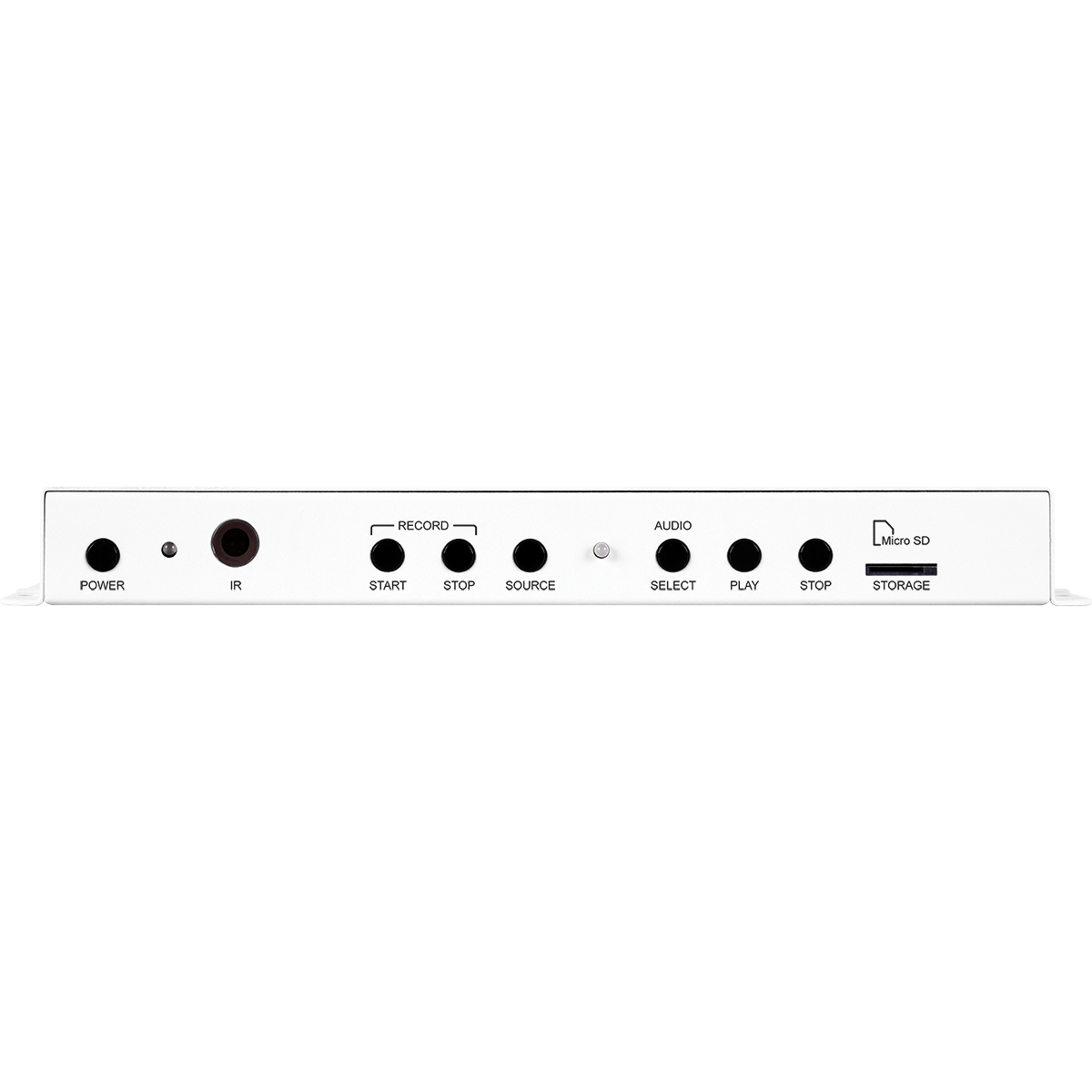

- Control via front panel buttons, WebGUI, Telnet, RS-232, and IR
Brand:
Cypress Technology
Product Type:
HDMI/VGA Video Streamer with Recording
Specifications
Power Rating:
9.57W
Operating Humidity:
20 to 90%
Operating Temperature Range:
0 TO +40°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Number of Video Input Port:
3
Audio Input Type:
Stereo
Number of I/O Ports:
4
I/O Interface Type:
Type A
Dimensions
Width:
23.15cm
Depth:
11.7cm
Height:
2.5cm
Weight:
668g
Other
Standards Met:
CE, FCC Compliant, UL Listed
