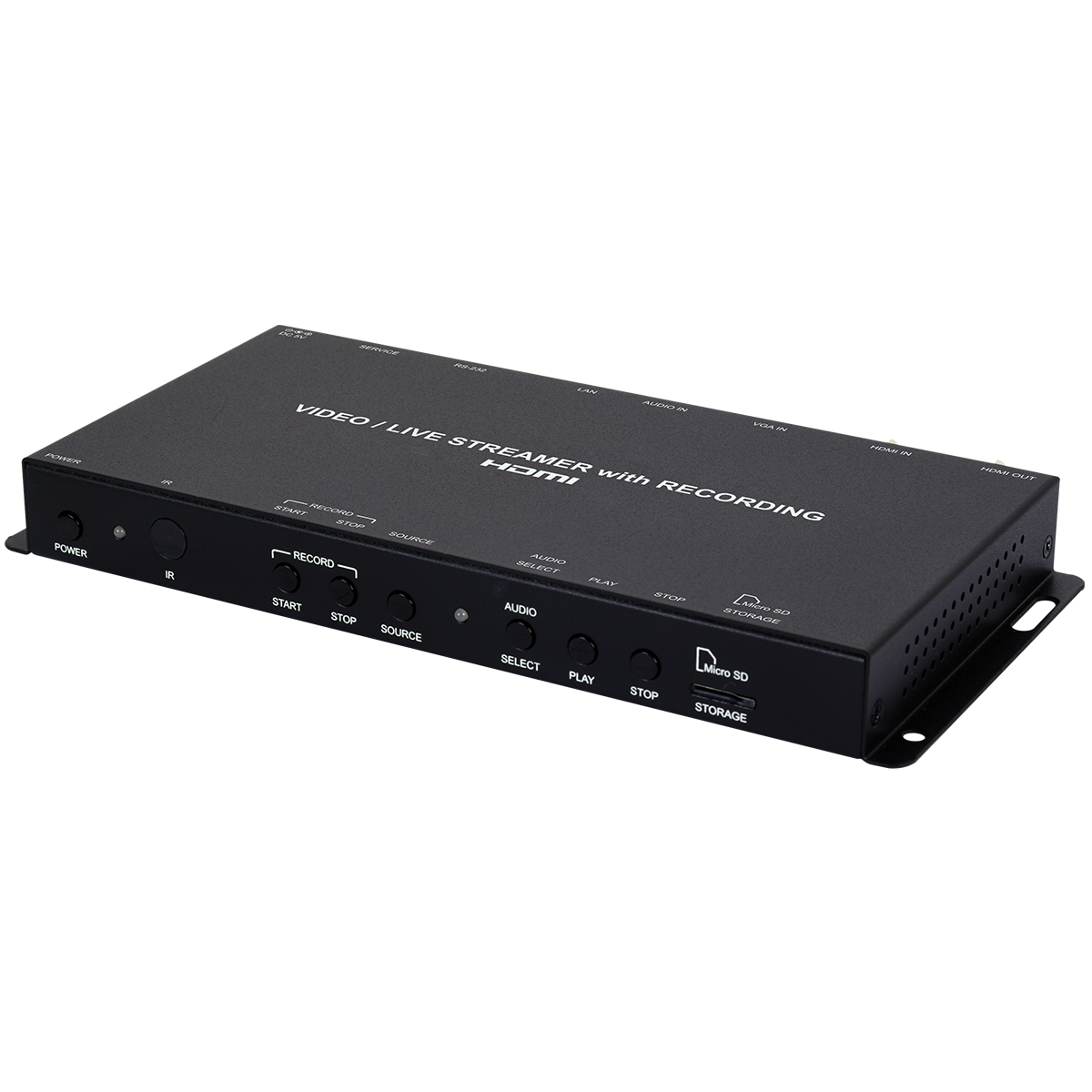

CDPS-P311R HDMI/VGA Video Streamer with Recording
Please sign in so that we can notify you about a reply

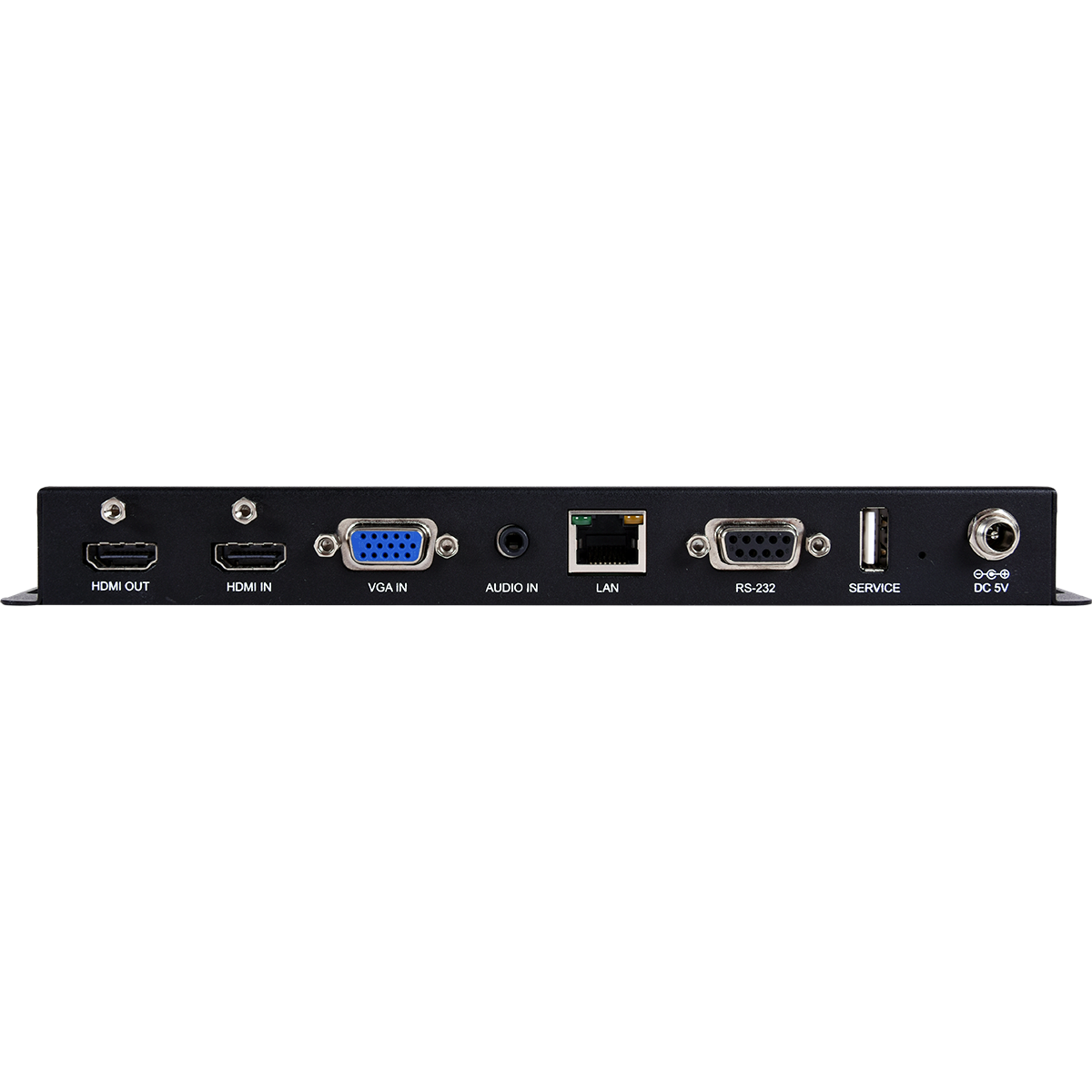

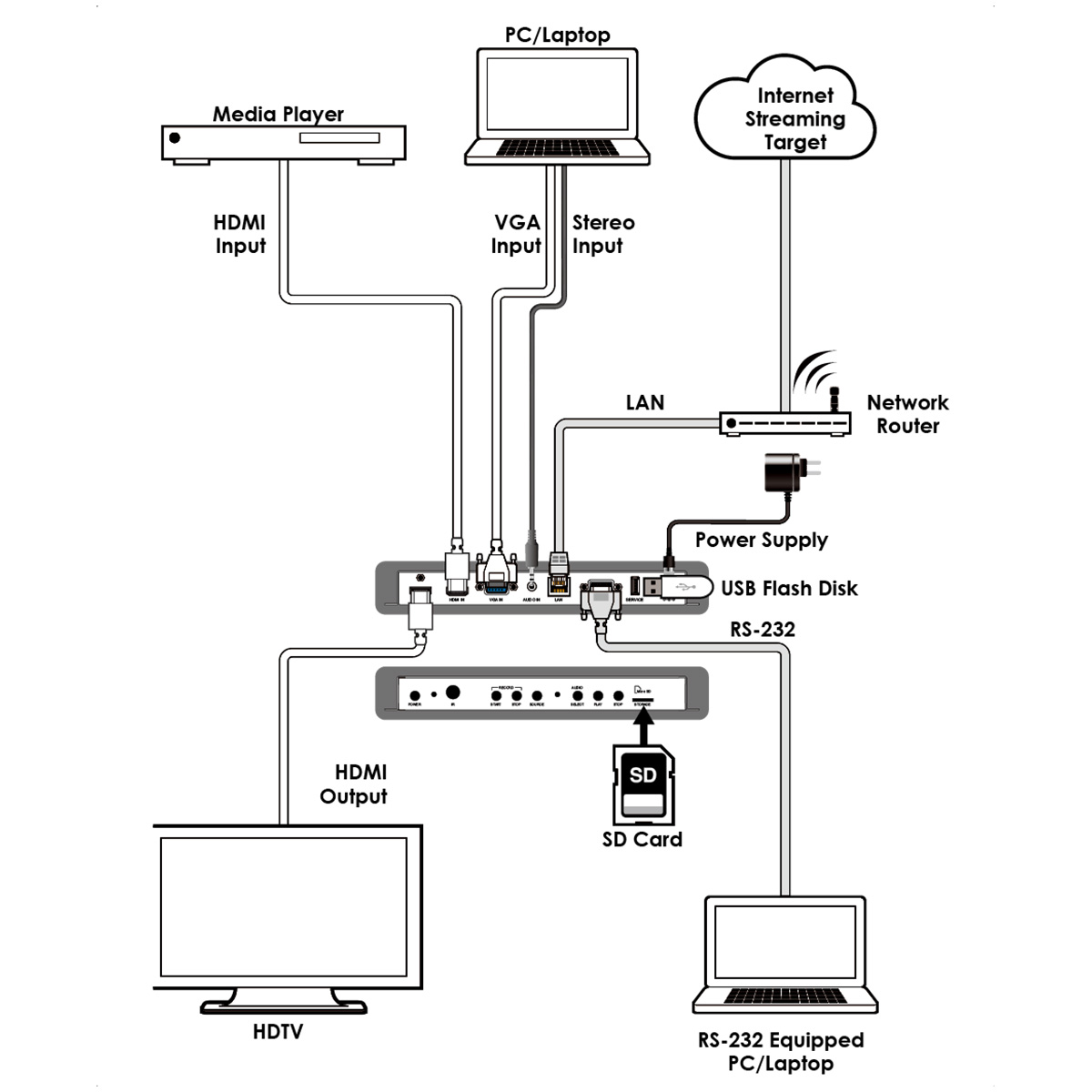

This Video Streaming Recorder makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring of the selected input source. The video may also be recorded locally (via SD card) or to a local network drive. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a wonderful tool for video streaming and recording.
Features
- Audio embedding and mixing support with the analog stereo audio input. Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source.
- Integrated support for live streaming to Facebook, YouTube or Twitch channels.
- On screen countdown timer and text overlays are supported. Automatic input switching and downscaling function converting UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast.
- Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets

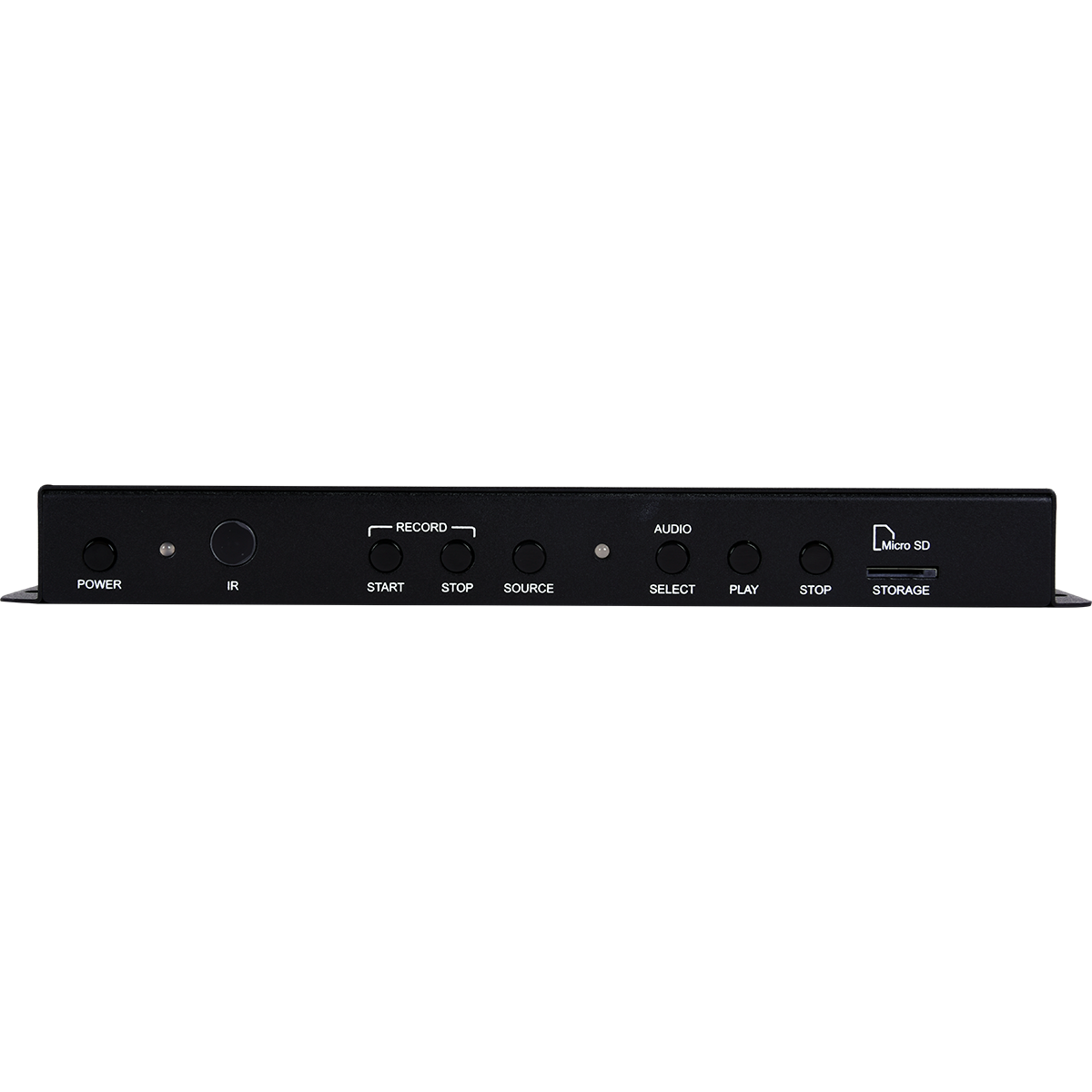

- Control via front panel buttons, WebGUI, Telnet, RS-232, and IR
Brand:
Cypress Technology
Product Type:
Live Video Streamer with Recording Function
Specifications
Power Rating:
9.57W
Operating Humidity:
20 to 90%
Operating Temperature Range:
0 TO +40°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Number of Video Input Port:
3
Number of I/O Ports:
4
I/O Interface Type:
Type A
Dimensions
Width:
23.15cm
Depth:
11.7cm
Height:
2.5cm
Weight:
668g
Other
Standards Met:
CE, FCC Compliant, UL Listed
