CUSB-V604H UHD+ USB Capture

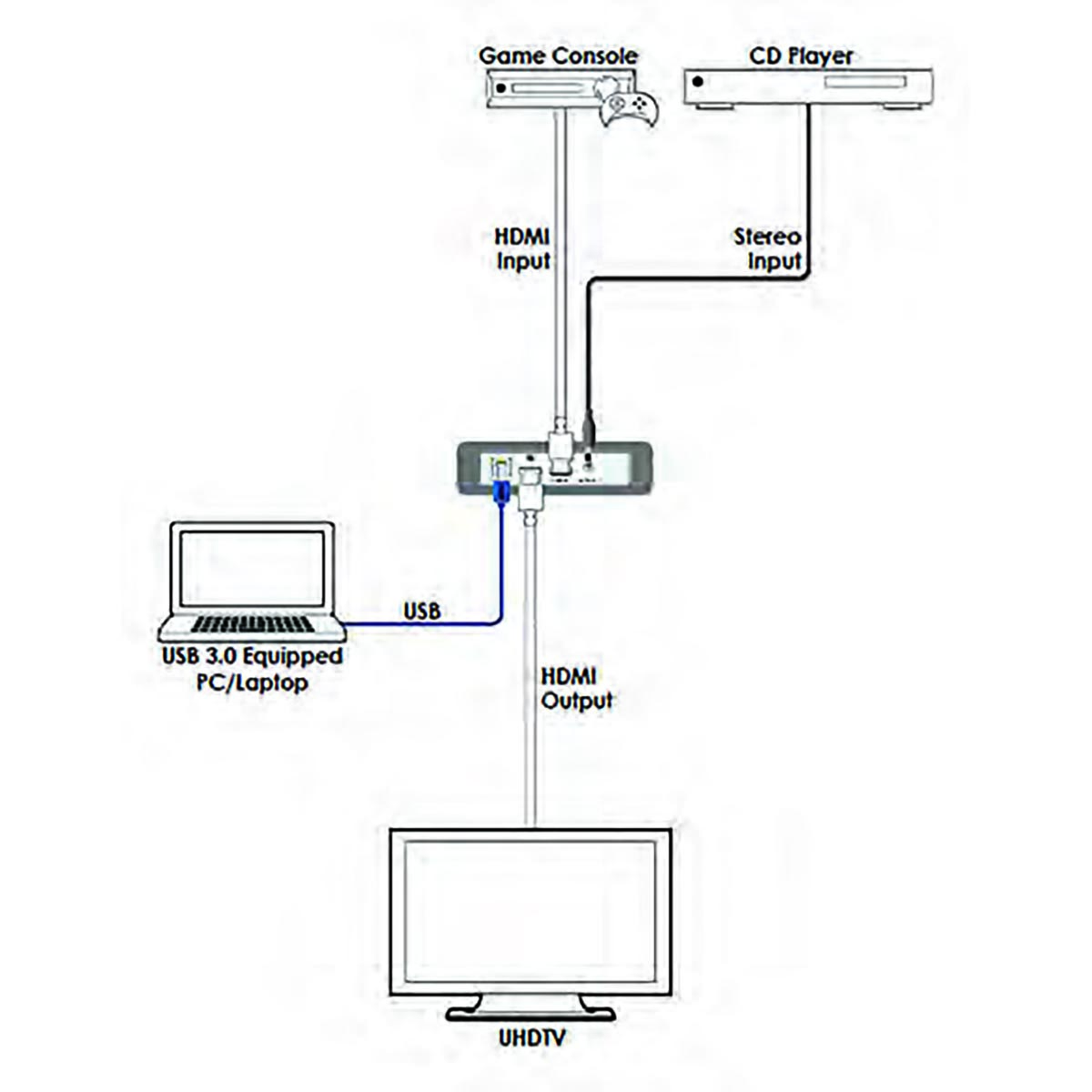

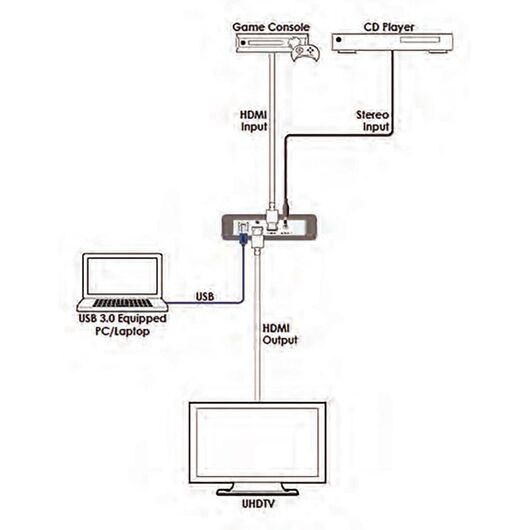

This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. HDMI sources up to 1080p60 are supported for capture without modification, while 4K sources will be automatically scaled down to 1080p. The use of a special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or becomes disconnected. Digital stereo audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input will be captured with the HDMI video source and is selectable within the configuration software. USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. The unit is powered directly by the USB 3.0 port so an external power supply is not required (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.

Features

  • Automatically scales 4K sources to 1080p for USB capture
  • Unit may be powered directly via USB 3.0 (When using USB 2.0, a Y-cable is required to provide additional power)
  • Supports video timing stabilization to help ensure a reliable and stable USB capture stream
  • Capturing over USB 3.0 allows uncompressed video and audio data capture (up to 1080p, LPCM 2.0)
  • Capturing over USB 2.0 requires the application of minimal MJPEG compression to the video and audio data (up to 1080p, LPCM 2.0
  • Supports capturing 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input (selectable via configuration software
  • Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming software
  • Support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux
 Note: Availability and access to the controllable features of the unit depend on the capture software used.
Brand:
Cypress Technology
Product Type:
UHD+USB Capture Box
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Automatically Scales 4K Sources to 1080p for USB Capture, Supports Video Timing Stabilization to help Ensure a Reliable and StableUSB Capture Stream, Support for the Free OBS (Open Broadcaster Software) Streaming Software which is Available for Windows PC
Power Rating:
7.15W
Chassis Material:
Steel
Applications:
Minimal MJPEG Compression to the Video and Audio Data (Up to 1080p, LPCM 2.0)
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
OBS (Open Broadcaster Software) Streaming Software which is Available for Windows
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Output Signal Type:
4K@60Hz 8bit YUV 4:4:4, HDR 12
Inputs and Ports

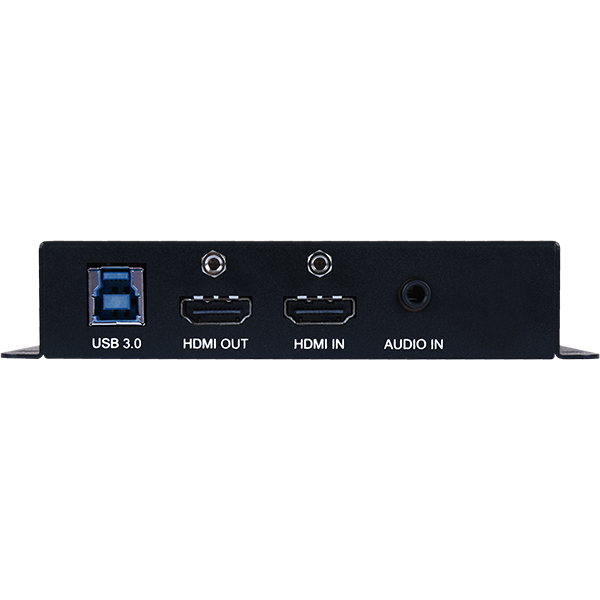

Input Port Type:
1xHDMI, 1xStereo (3.5mm)
Output Port Type:
1xHDMI, 1 USB 3.0 Type B
Number of Ports:
4
Input Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR 12
Dimensions
Width:
12.8cm
Depth:
10.8cm
Height:
2.5cm
Weight:
364g
