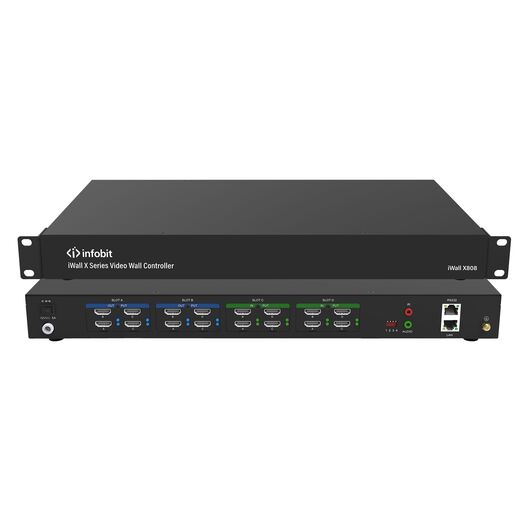

iWall X808 FHD HDMI Video Wall Controller, 8x HDMI inputs, 8x HDMI outputs

The iWall xfamily of video wall controllers are high performance systems based on pure hardware architecture. They are ideal for most video wall applications, ranging from digital signage to command and control. Employing cutting edge crossbar technology and high-speed FPGA, iWall xvideo wall controllers offer systems with 4x4, 4x8, 4x12 and 8x8 HD graphics inputs and outputs. The iWall xcontrollers support a maximum of 4xvideo overlay windows per display. The layout of the windows can be configured by iWall X, wall management software on both Windows PC or Android tablet.The iWall xcontrollers offer extremely fast start up performance and a virus and software conflict free working environment, which guarantees its 24/7 hassle free operational ability.

Features
  • Advanced CrossBar technology
  • Robust FPGA video data process technology
  • No PC vulnerabilities
  • 1 to 12 display outputs
  • 4x video overlay windows per display
  • Video windows zoom in, zoom out, moving, overlay, roaming, resizing and switching
  • With 4x4, 4x8, 4x12 and 8x8 HD graphics inputs and outputs
  • Low power consumption
  • Low capture & display latency
  • Support both LCD and LED videowall
  • Presets saving and auto switching
  • Video cropping
  • Scrolling text
  • Embedded HDMI audio in all inputs
  • 1x de-embedded audio from any input
  • One-touch audio switching, mute or unmute
  • Drag-and-Drop software operation
  • One-touch Power On/ Off the whole videowall
  • Seamless switching without any blank intervals
  • Both videowall and matrix mode
  • TCP/IP, RS232 Control
  • Multiple user levels management
  • Background picture
Brand:
Infobit
Product Type:
Video Wall Controller
Specifications
Number of Rack Units:
1U
Colour:
Black
Series:
iWall X
Special Features:
Drag-and-Drop Software Operation
Performance
Resolution:
1920x1080pixels@60Hz
Inputs and Ports
Connection Port Type:
HDMI
Control Port Type:
TCP/IP, RS232
Number of Input Ports:
8
Number of Output Ports:
8
Input Port Type:
8xHDMI
Output Port Type:
8xHDMI
Dimensions
Length:
44cm (Without Ear), 48.5cm (With Ear)
Width:
25cm
Height:
6cm
Weight:
2.7kg
Shipping Weight:
5.2kg
Other
Warranty:
3 years

iWall X808 1 (INFOBIT-iWall-X-datasheet-V1.0.pdf, 312 Kb) [Download]

iWall X808 2 (iWall-X-User-Manual-V1.0.3.pdf, 2,870 Kb) [Download]
