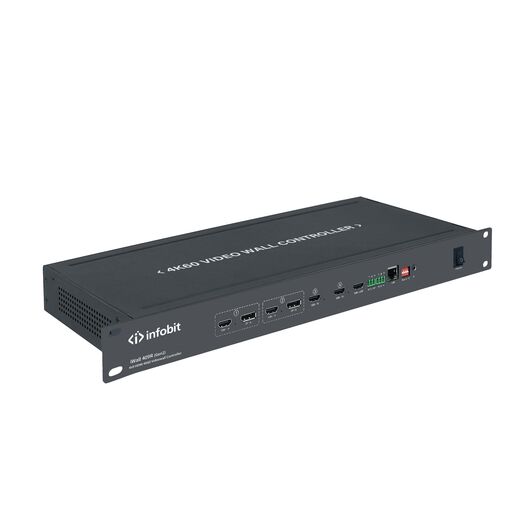

iWall 409R (Gen2) 4K60 HDMI Video Wall Controller, 4x HDMI IN, 2x DP IN, 9x HDMI OUT, Seamless, flexible layers

The iWall 409R Gen2 is a new generation HDMI 4K60Hz video wall controller designed by INFOBIT AV. Supports 4x HDMI inputs, 2x DP inputs (simultaneous as HDMI IN1 and IN2), 9x HDMI outputs and 1x HDMI loop out. A single device, 4 inputs (2x mirrored DP) and 9 outputs (compatible with 1 in 9 out), can be combined in any number of video wall layout modes of landscape or portrait installation, and large-scale video wall can be connected by cascading more 409R.It supports maximum input 3840x2160@60Hz and backwards compatible and maximum output 1920x1080@60Hz

• Using high-end programmable FPGA chip, pure hardware, real-time processing architecture without delay and with anti-static design. Without Window blue screen, virus risks, OS vulnerability, and breakdown risk. Lower requirements of IT technology background, save your training cost
• It supports 4 source windows on the whole wall in multiple displaying modes: single image, PIP (Picture in Picture), POP (Picture on Picture), PYP ( Picture by Picture) orQuad-view. All video windows support free zooming, cross-screen roaming, re-sizing with arbitrary layers overlay
• Support signal cropping, which can remove black edges and crop the focused content to emphasize any details. It can perfectly solve the black edge problem caused by the input source, for example for live-stream, digital signage advertisement, sports bar, TV show or control room applications.
• Supports 16x videowall displaying modes such as horizontal screen 1x1 to 1x9;vertical screen 9x1 to 1x1; or mosaic type: 2x2, 2x3, 3x3, 2x4, 4x2
• Supports 4 channels of 4K*2K@60 input, each input port burns different resolutions, and supports EDID management, reading, modification and customization of EDID(Extended Display Identification Data), which improves the compatibility of the display device enables the device output signal to adapt to various applications
• Support inputs and outputs rotation: any input can be rotated in 90°, 180° or 270°,and the first row of output can be rotated in 180°. It is ideal solution for bothlandscape and portrait installation of videowall or up-down projector display
• Supports 4x9 matrix mode.
• Inputs can be PC, media player, blue ray, game console and other devices.
• Support seamless real-time switching, without black screen intervals or lag during the signal switching
• Supports image effect color, saturation and other parameter adjustment functions to solve the problem of signal color restoration, with screen freezing and screen mirroring function, gamma/ panel gamma modes
• Supports IR remote control, RS232, TCP/IP control methods, with keyboard shortcuts for easy configuration and quick operation.
• Audio de-embedded, audio output can follow the HDMI OUT 1 or all outputports. Also can disable audio of all ports
• Supports functions such as hot swapping, power-off memory, host computer read back
• Low power consumption and environmentally friendly design
• Supports full-channel 24bit, RGB 8:8:8 high color sampling depth, high-quality video image output.
• Support up to 10x presets saving and recall.
