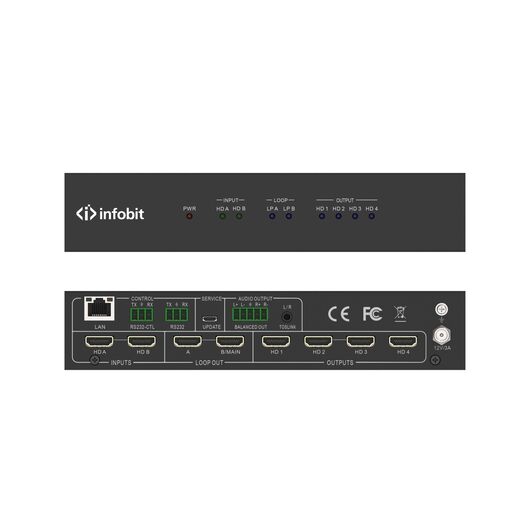

iWall 204 4K60 HDMI Video Wall Controller, 2x HDMI input, 4x HDMI outputs, w/ Loopout and Matrix mode.
Please sign in so that we can notify you about a reply
It is a HDMI 2.0 Video Wall controller with 2 HDMI input, 2 HDMI loop out and 4 HDMI scaling out for video wall processing. The Toslink jack terminal provides analogue L/R audio and digital SPDIF audio output. 5-pin phoenix jacket provides balanced L/R audio output. With PC Tool or RS232 commands to control the product for different wall display
Features- HDMI 2.0 and HDCP 2.2 compliant
- Support multi-resolution up to 3840x2160@60Hz video output for video wall
- Support 2 channels HDMI loop out
- Support Bezel Compensation with two modes
- Support 180º rotation
- Support PIP on video wall
- Support RS-232 and TCP/IP control
- Support CEC control with displayer by PC Tool or commands
Brand:
Infobit
Product Type:
Video Wall Controller
Specifications
Colour:
Black
Series:
iWall
Special Features:
Support PIP on the Video Wall
Humidity:
10 to 50%
Operating Temperature Range:
0 TO +40°C
Performance
Resolution:
4096x2160pixels@24/25/30/50/60Hz
Inputs and Ports
Connection Port Type:
HDMI
Control Port Type:
LAN, RS-232
Number of Input Ports:
2
Number of Output Ports:
4
Input Port Type:
2xHDMI
Output Port Type:
4xHDMI
Dimensions
Length:
21.8cm
Width:
14.6cm
Height:
4.3cm
Weight:
2kg
