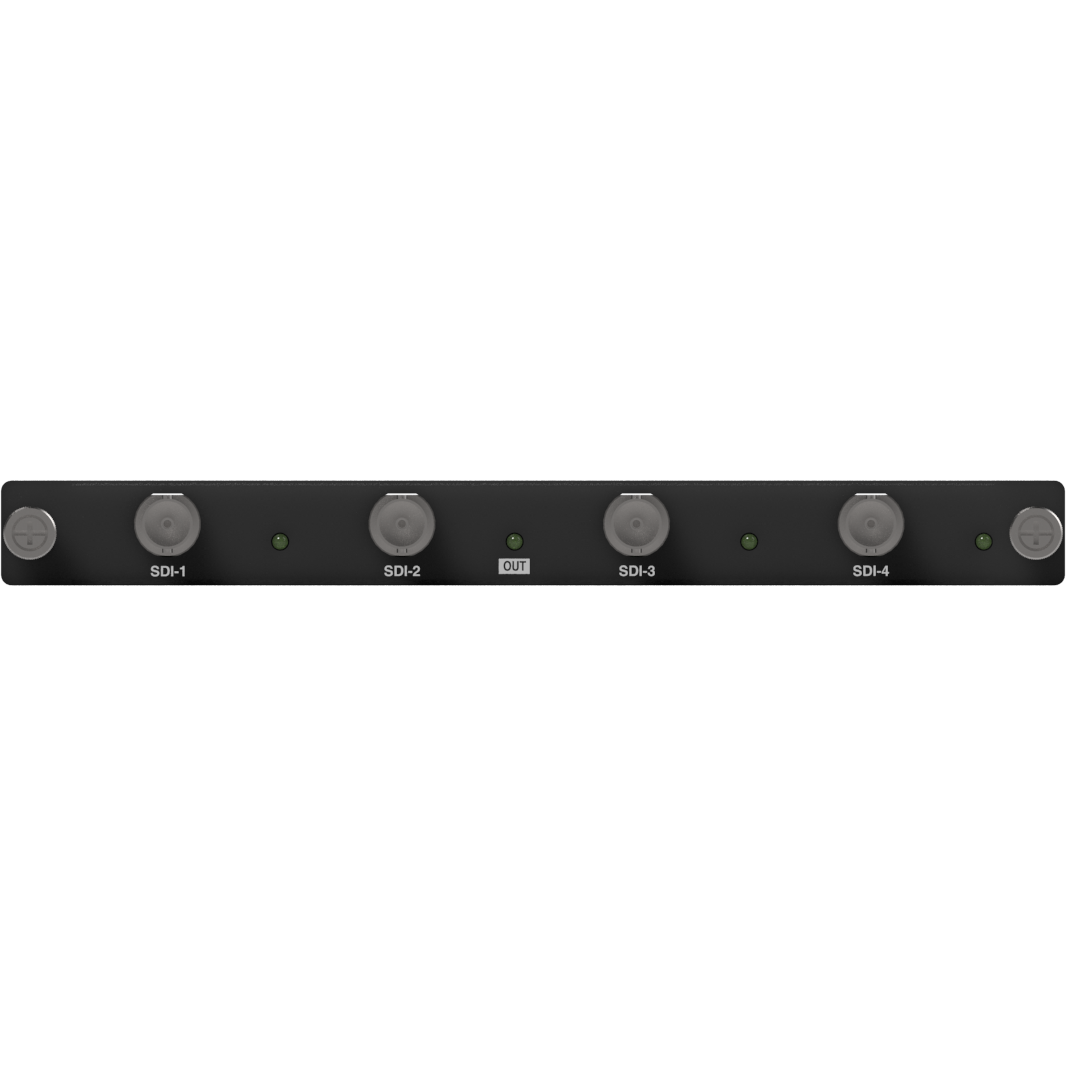

DB-VWC2-M4-OC-SDI4 4-channel SDI output card for the VWC2-M4 series Full HD video wall controller

Write a review
DB-VWC2-M4-OC-SDI4
DigiBird
Log in to see price Add to wish list Add to Project

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

Features

  • Support 3G-SDI, HD-SDI output format
  • Support up to 1920x1080P @ 60Hz
  • Each channel supports 4x layers with arbitrary roaming, overlay
  • Multi-channel synchronous output
  • Support to configure on site, plug and play
  • Support background image
  • Support scrolling text
  • Support firmware upgrade online
  • Support to be monitored by CMC card
Brand:
DigiBird
Product Type:
SDI Output Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Scrolling Text, Background Image
Card Type:
Output Card
Power Rating:
27W
For Use With:
M4 Series Video Wall Controller
Applications:
Mission Critical Application
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
1920x1200Pixel@60Hz
Bandwidth:
2.97Gbps
Input Video Signal Level:
800mVp-p
Inputs and Ports
Port Type:
4xSDI
Card Slot Type:
4xBNC
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg

DB-VWC2-M4-OC-SDI4 1 (DB-VWC2-M4-Card-Manual-2021.V1.pdf, 1,626 Kb) [Download]

DB-VWC2-M4-OC-SDI4 2 (VWC2-M4_Brochure_DigiBird_2018v1.pdf, 7,424 Kb) [Download]
