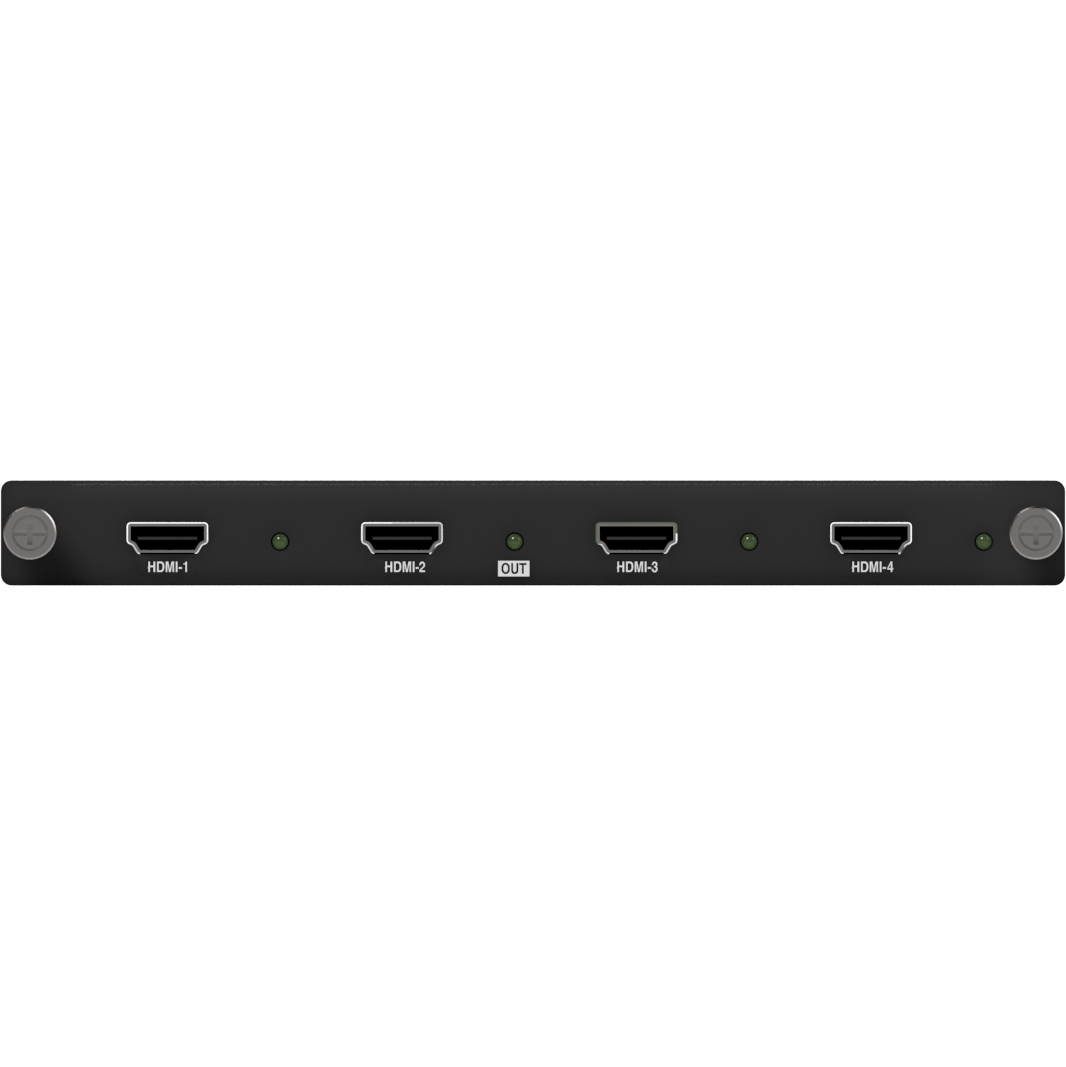

DB-VWC2-M4-OC-JHDMI4 HDMI output card for the VWC2-M4 series Full HD video wall controller
Please sign in so that we can notify you about a reply
VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.
Features
- With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation
Brand:
DigiBird
Product Type:
HDMI Output Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Support to be Monitored by CMC card
Card Type:
Output Card
Power Rating:
35W
Humidity:
10% to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
1920x1200Pixel@60Hz
Bandwidth:
5.1Gbps
Supported Video Type:
FHD
Input Video Signal Level:
800mV to 1200mV
Inputs and Ports
Port Type:
4xHDMI
Card Slot Type:
4xHDMI
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2.1cm
Weight:
0.3kg
