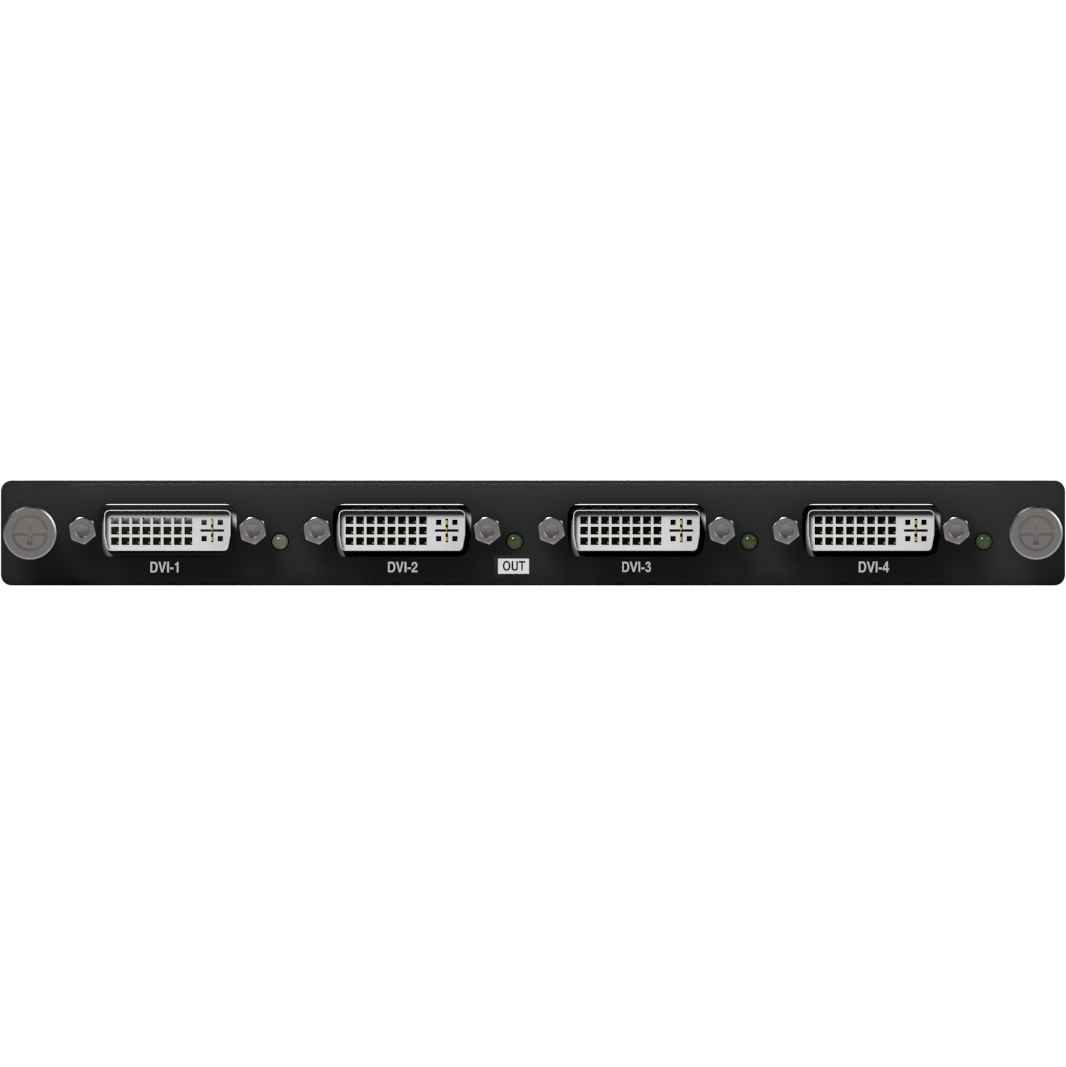

DB-VWC2-M4-OC-JDVI4 DVI output card for the VWC2-M4 series Full HD video wall controller

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

Features

  • Support resolution up to 1920 x 1200@60Hz
  • DVI-I port, can output VGA signal via DVI-VGA adapter
  • Advance scaling algorithm for output on LED display
  • Each channel supports 4/8 layers with arbitrary roaming, overlay
  • Multi-channel synchronous output
  • Support to configure on site, plug and play
  • Support background image
  • Support scrolling text
  • Support upgrade online
  • Support to be monitored by CMC card
Brand:
DigiBird
Product Type:
DVI Output Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Scrolling Text, Background Image
Card Type:
Output Card
Power Rating:
35W
For Use With:
M4 Series Video Wall Controller
Applications:
Mission Critical Application
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
Upto 1920x1200Pixel@60Hz
Bandwidth:
4.95Gbps
Input Video Signal Level:
800 to 1200mVp-p
Inputs and Ports
Port Type:
4xDVI
Card Slot Type:
4xVGA
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2.1cm
Weight:
0.3kg

DB-VWC2-M4-OC-JDVI4 1 (DB-VWC2-M4-Card-Manual-2021.V1.pdf, 1,626 Kb) [Download]

DB-VWC2-M4-OC-JDVI4 2 (VWC2-M4_Brochure_DigiBird_2018v1.pdf, 7,424 Kb) [Download]
