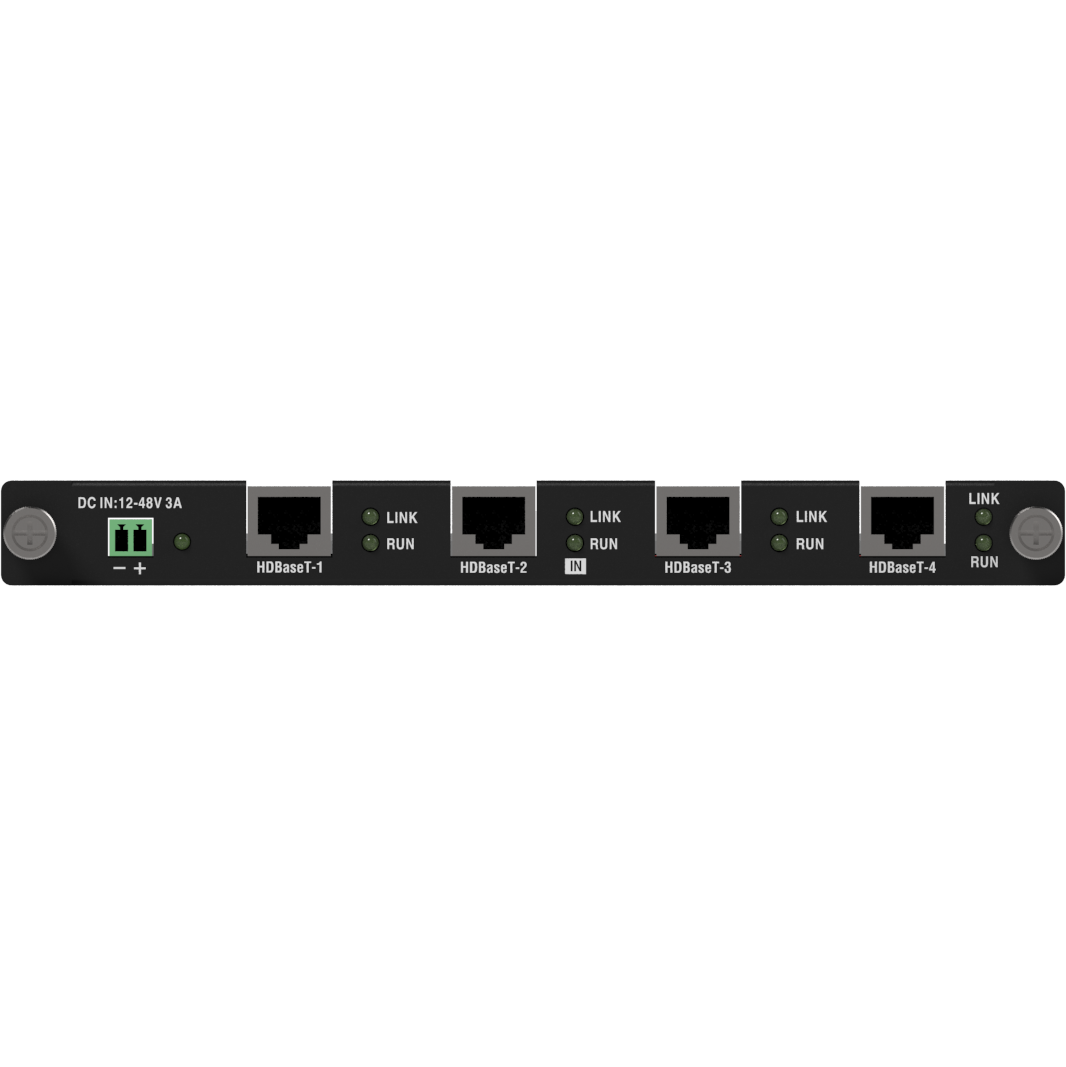

DB-VWC2-M4-OC-J4KHDMI1 4-channel HDBaseT output card for the VWC2-M4 series Full HD video wall controller

Write a review
DB-VWC2-M4-OC-J4KHDMI1
DigiBird
Log in to see price Add to wish list Add to Project

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

Features

  • With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation
Brand:
DigiBird
Product Type:
4K HDMI Output Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Support to be Monitored by CMC card
Card Type:
Output Card
Power Rating:
40W
Humidity:
10% to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
3840x2160Pixel@30Hz
Bandwidth:
10.2Gbps
Supported Video Type:
FHD
Input Video Signal Level:
800mV to 1200mV
Inputs and Ports
Port Type:
1x4K HDMI
Card Slot Type:
4xHDMI
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2.1cm
Weight:
0.3kg

DB-VWC2-M4-OC-J4KHDMI1 1 (DB-VWC2-M4-Card-Manual-2021.V1.pdf, 1,626 Kb) [Download]
