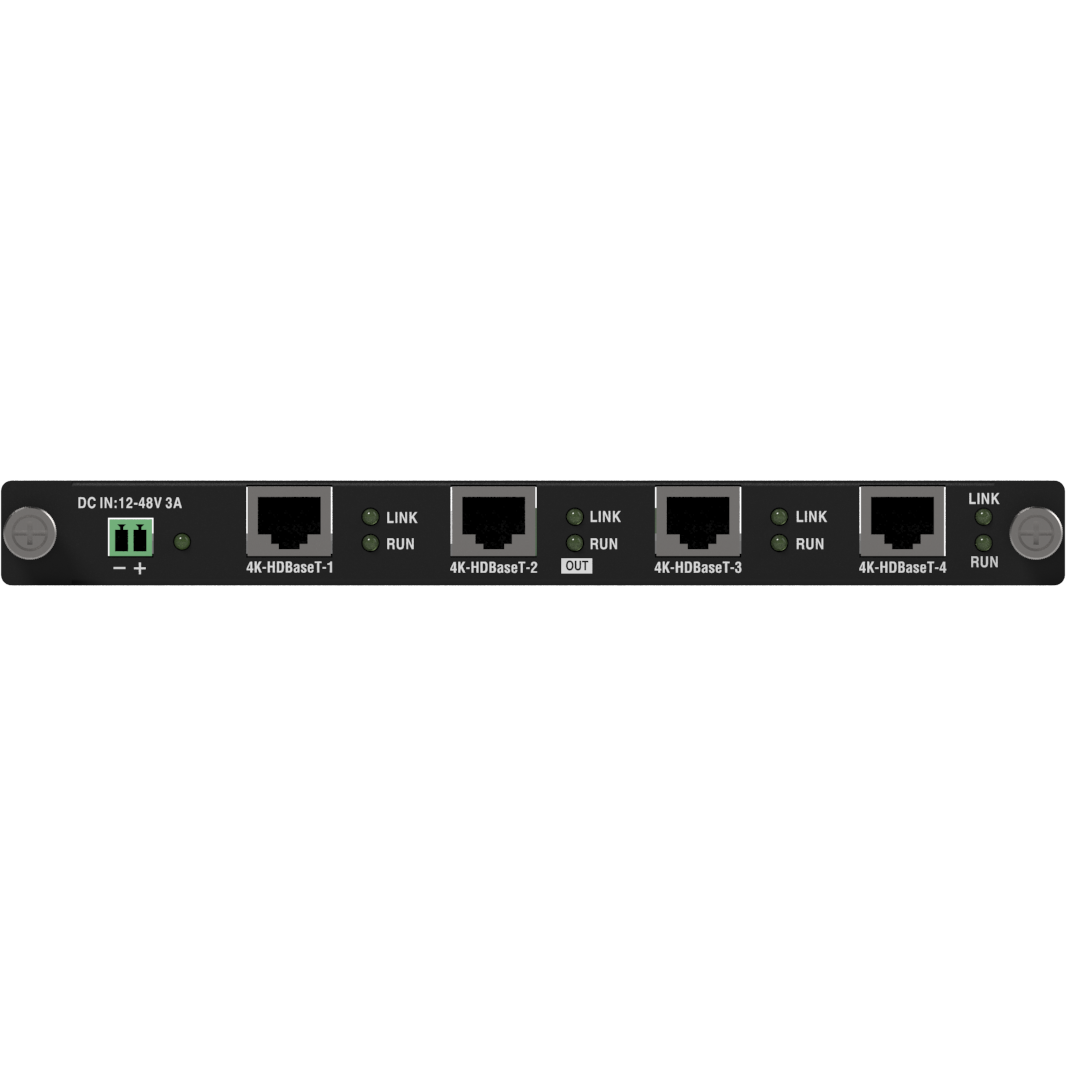

DB-VWC2-M4-OC-HDBT4 4-channel HDBaseT output card for the VWC2-M4 series Full HD video wall controller
Please sign in so that we can notify you about a reply
VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.
Features
- 4 channel per card
- Support resolution up to1920 x 1200@60Hz
- Support POE power supply function
- Each channel supports 4x layers with arbitrary roaming, overlay
- Multi-channel synchronous output
- Support to configure on site, plug and play
- Support background image
- Multi ports output with Sync and support synchronization with other signals
- Support scrolling text
- Support upgrade online
- Support to be monitored by CMC card
Brand:
DigiBird
Product Type:
HDBaseT Output Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
POE Output, Scrolling Text
Card Type:
Output Card
Power Rating:
33.4W
For Use With:
M4 Series Video Wall Controller
Applications:
Mission Critical Application
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
Upto 1920x1200Pixel@60Hz
Bandwidth:
4.95Gbps
Inputs and Ports
Port Type:
4xHDBaseT
Card Slot Type:
4xRJ45
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2.1cm
Weight:
0.3kg
