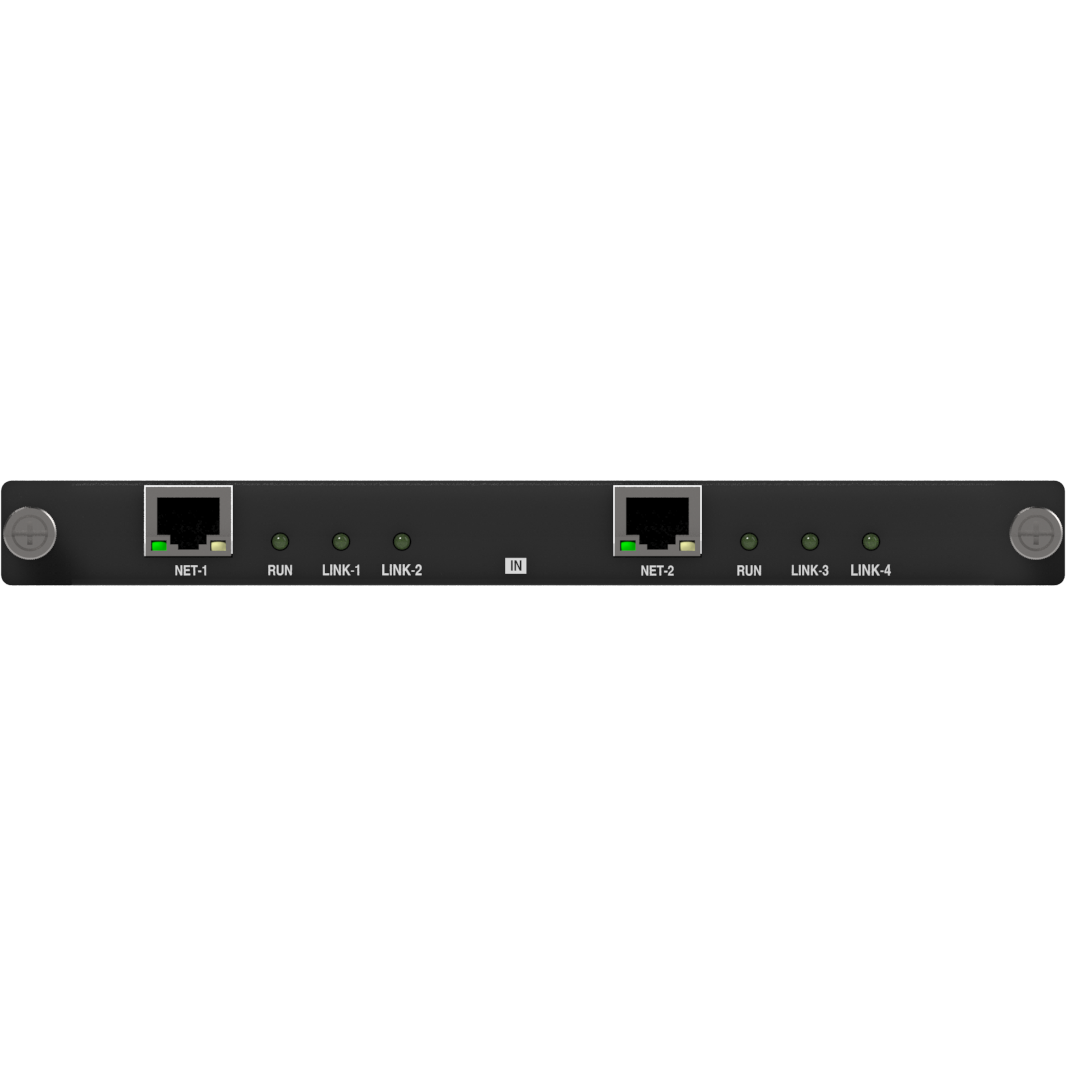

DB-VWC2-M4-IC-IPH2 2-channel H.265 IP input card for the VWC2-M4 series Full HD video wall controller

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

Features

  • Supported video sources
  • Network CCTV camera
  • H.264/H.265/RTSP/RTP: Support manufacturers of network cameras such as Hikvision, Dahua, Axis, Santachi and so on
  • Security media service
  • Support Hikvision, Dahua full range of security device access
  • Encoding box, encoding card
  • Full range of DigiBird’s H.264 / H.265 format encoding devices
Brand:
DigiBird
Product Type:
IP Input Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
CCTV Camera, Security Device Access
Card Type:
Input Card
Power Rating:
26W
For Use With:
M4 Series Video Wall Controller
Applications:
Signal Indicator
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4000x3000Pixel@25Hz, 3840x2160Pixel@30Hz
Bandwidth:
10Gbps
Inputs and Ports
Port Type:
2xRJ45
Card Slot Type:
IP
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg

DB-VWC2-M4-IC-IPH2 1 (DB-VWC2-M4-Card-Manual-2021.V1.pdf, 1,626 Kb) [Download]

DB-VWC2-M4-IC-IPH2 2 (VWC2-M4_Brochure_DigiBird_2018v1.pdf, 7,424 Kb) [Download]
