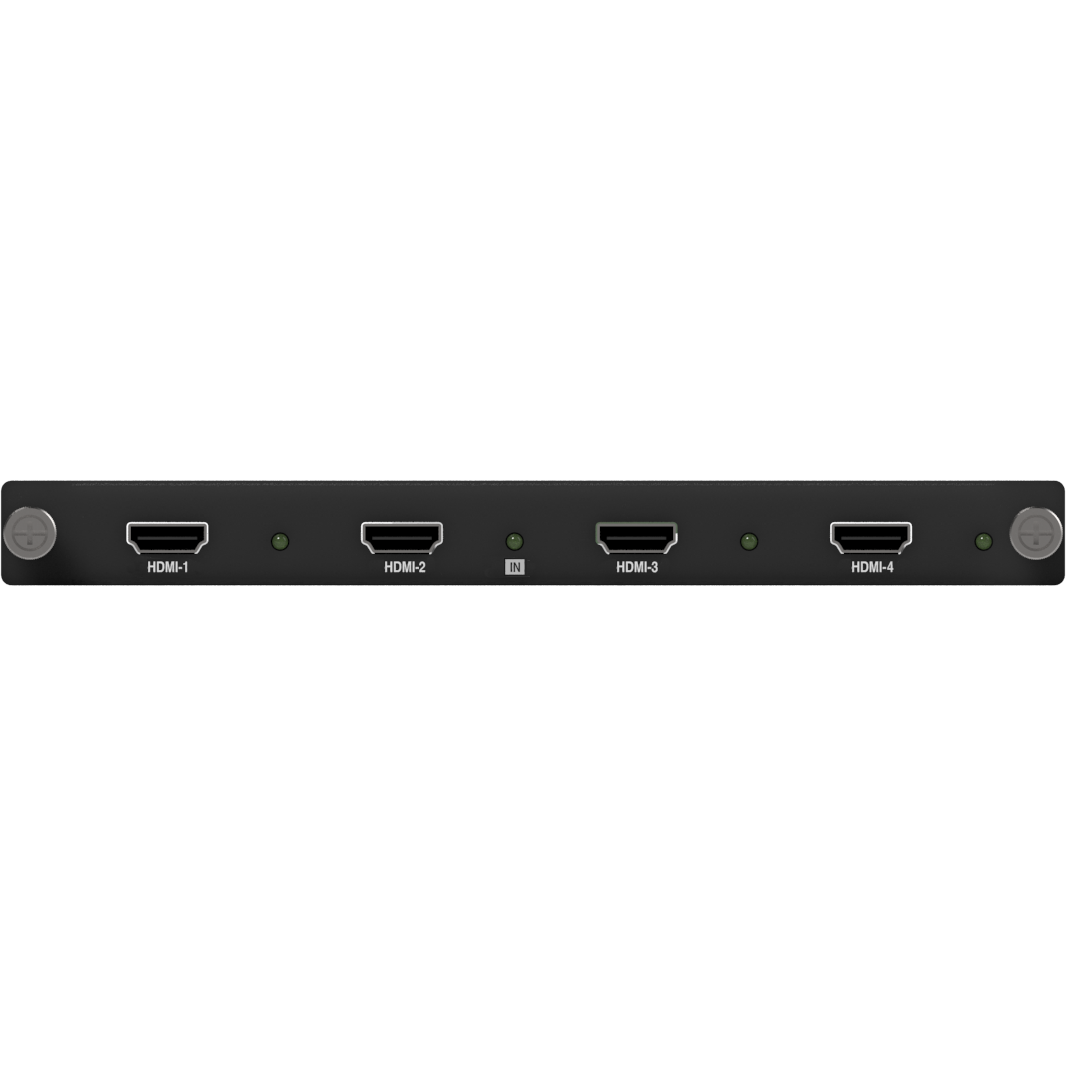

DB-VWC2-M4-IC-HDMI4 4-channel HDMI HD input card for the VWC2-M4 series Full HD video wall controller
Please sign in so that we can notify you about a reply
VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.
Features
- With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation
Brand:
DigiBird
Product Type:
HDMI Input Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Support Source Preview Via Network Preview Card
Card Type:
Input Card
Power Rating:
12.3W
Humidity:
10% to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
1920x1200Pixel@60Hz
Bandwidth:
6.69Gbps
Supported Video Type:
FHD
Input Video Signal Level:
150 to 1200mV
Inputs and Ports
Port Type:
4xHDMI
Card Slot Type:
4xHDMI
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg
