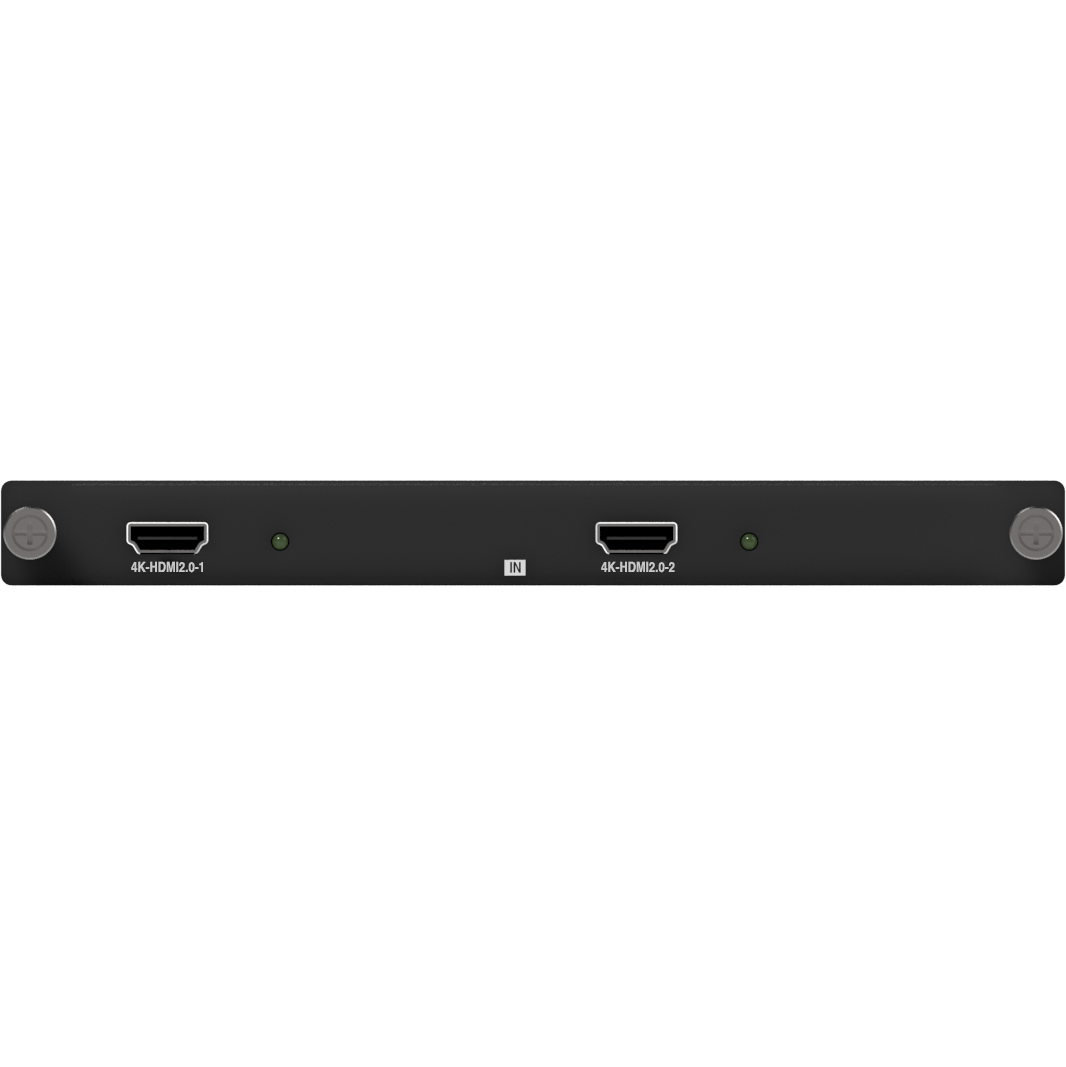

DB-VWC2-M4-IC-4KHDMI2 2-channel 4K HDMI input card for the VWC2-M4 series Full HD video wall controller

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

Features

  • Support HDMI 1.4 protocol, compatible with DVI 1.0 protocol also support 4K@30Hz signal
  • Support HDCP validation
  • Backward compatible
  • Support signal source cropping
  • Advanced EDID management also support EDID editing
  • Support configure on site, plug and play, hot swappable
  • Support source preview via Network Preview Card
  • Support station logo
  • Show blue screen when no signal input
Brand:
DigiBird
Product Type:
4K HDMI Input Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Backward Compatible, Signal Source Cropping
Card Type:
Input Card
Power Rating:
11.3W
For Use With:
M4 Series Video Wall Controller
Applications:
Mission Critical Application
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
3840x2160Pixel@30Hz
Bandwidth:
9Gbps
Input Video Signal Level:
150 to 1200mVp-p
Inputs and Ports
Port Type:
2x4K HDMI
Card Slot Type:
HDMI 1.4/DVI 1.0
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg

DB-VWC2-M4-IC-4KHDMI2 1 (DB-VWC2-M4-Card-Manual-2021.V1.pdf, 1,626 Kb) [Download]

DB-VWC2-M4-IC-4KHDMI2 2 (VWC2-M4_Brochure_DigiBird_2018v1.pdf, 7,424 Kb) [Download]
