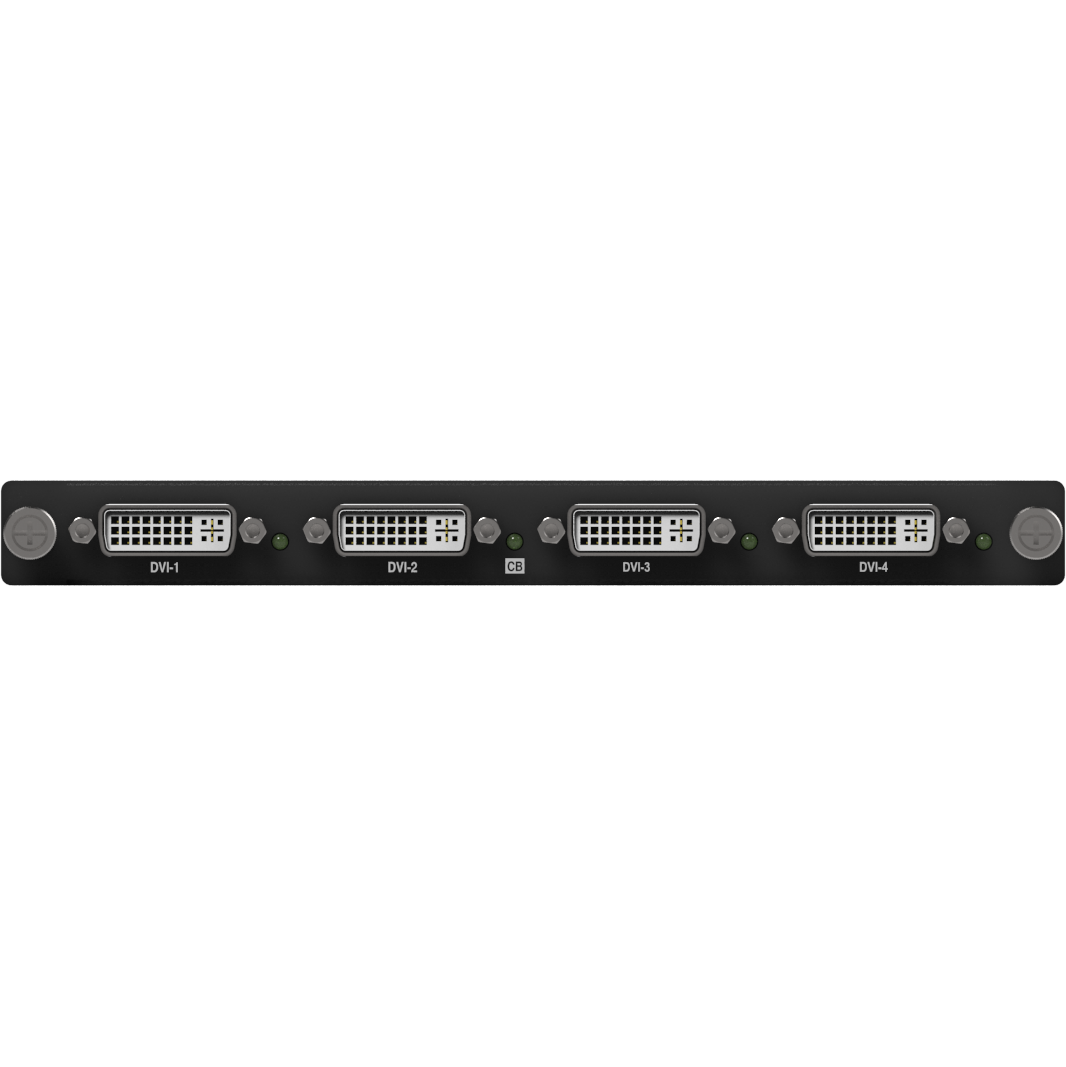

DB-VWC2-M4-FC-CB 4-channel DVI Confidence Monitoring card for the VWC2-M4 series Full HD video wall controller

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

Features

  • Support to monitor up to 80x output signals per card
  • Support 4 groups video wall monitoring per card at a time
  • Support original aspect ratio and full screen mode. Frame and background color can be set by user
  • Output resolution supports up to 1920x1200@60Hz
  • DVI-I interface, VGA signal can be output by DVI-VGA adapter
Brand:
DigiBird
Product Type:
DVI Confidence Monitoring Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Convenient For Operator To Monitor And Operate, Supports 3U, 4U, 6U, 8U, 14U, 26U Chassis
Card Type:
Monitoring Card
Power Rating:
40W
For Use With:
M4 Series Video Wall Controller
Applications:
Mission Critical Application
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
Upto 1920x1200Pixel@60Hz
Inputs and Ports
Port Type:
4xDVI
Card Slot Type:
5 Pin DVI-1
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg

DB-VWC2-M4-FC-CB 1 (DB-VWC2-M4-Card-Manual-2021.V1.pdf, 1,626 Kb) [Download]

DB-VWC2-M4-FC-CB 2 (Datasheet-of-VWC2-HPro_2021-V1.01.pdf, 257 Kb) [Download]
