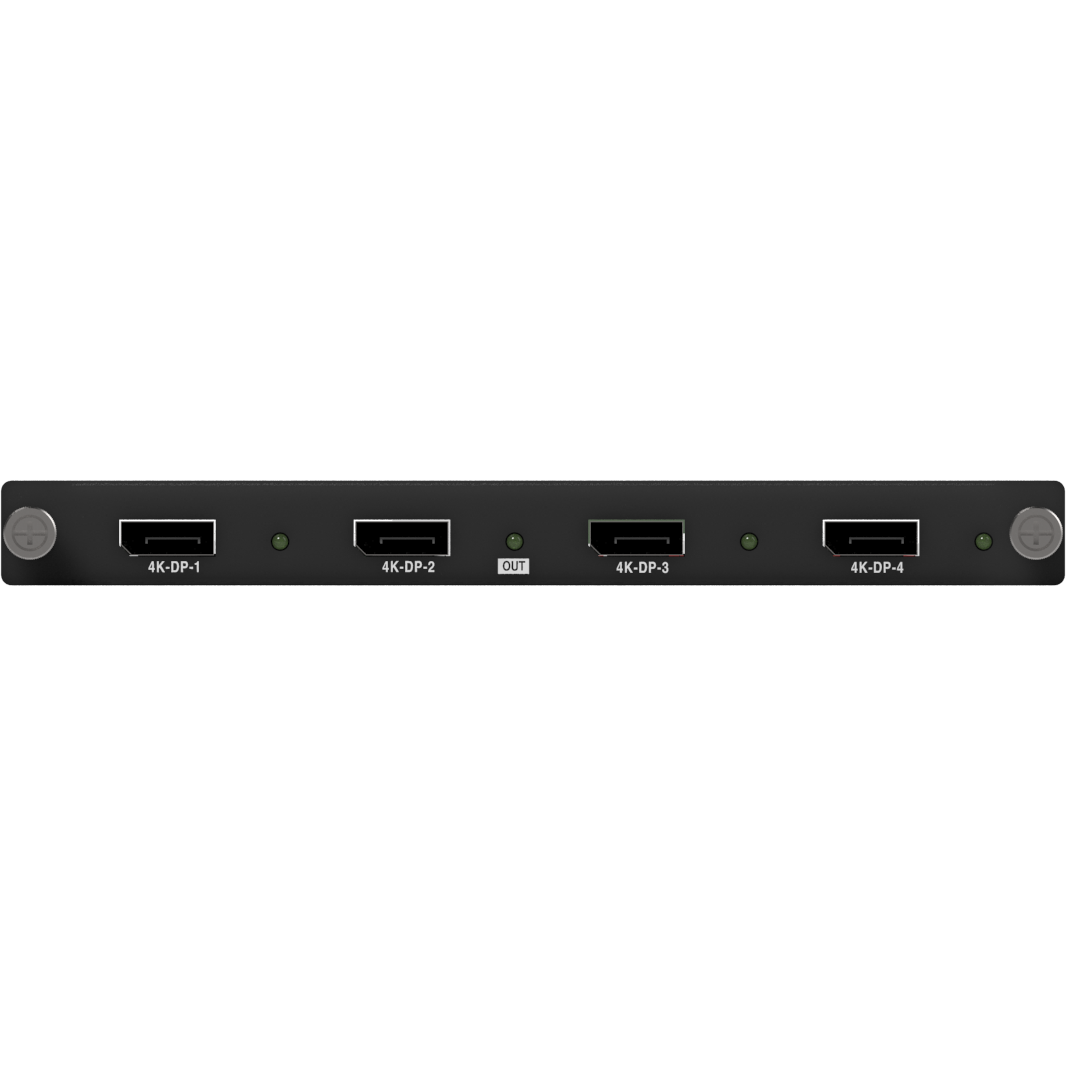

DB-VWC2-HP-OC-4KDP4 4-channel DisplayPort output card for the VWC2-HP series video wall controller

HPro support embedded and de-embedded audio management. User is able to switch audio input and output, turn up/down volume and manage audio preset.

Features

  • Support DP 1.1 protocol, maximum support 3840x2160@30Hz signal
  • Support HDCP1.3 validation
  • Each channel supports 4x layers with arbitrary roaming, overlay
  • Multi-channel synchronous output
  • Support to configure on site, plug and play
  • Support background image
  • Multi ports output with Sync and support synchronization with other signals
  • Support scrolling text
  • Support upgrade online
  • Support to be monitored by CMC card
  • Support 4 channels embedded audio output
Brand:
DigiBird
Product Type:
4K DP Output Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Backward Compatible, Signal Source Cropping
Card Type:
Output Card
Power Rating:
28.5W
For Use With:
HPRO Series Video Wall Controller
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
Upto 3840x2160Pixel@30Hz
Bandwidth:
10.8Gbps
Input Video Signal Level:
130 to 1300mVp-p
Inputs and Ports
Port Type:
4x4K DP
Card Slot Type:
4xDP Port
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg

DB-VWC2-HP-OC-4KDP4 1 (DB-VWC2-HPro-Card-Manual.2021.V1.pdf, 1,417 Kb) [Download]

DB-VWC2-HP-OC-4KDP4 2 (Datasheet-of-VWC2-HPro_2021-V1.01.pdf, 257 Kb) [Download]
