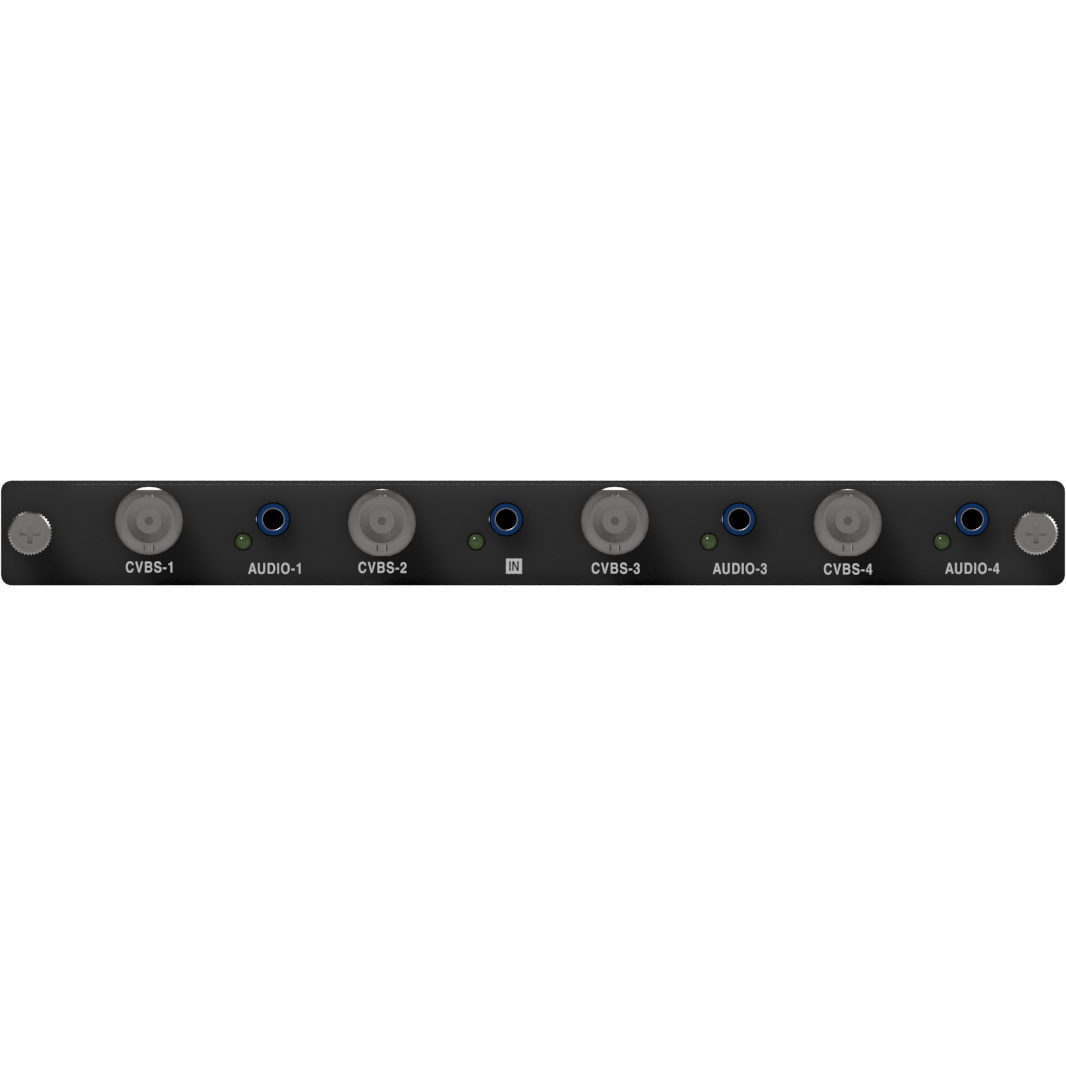

DB-VWC2-HP-IC-VIDEO4 4-channel CVBS input card for the VWC2-HP series video wall controller

HPro support embedded and de-embedded audio management. User is able to switch audio input and output, turn up/down volume and manage audio preset.

Features

  • Support NTSC\PAL\SECAM auto-adaption
  • Support brightness, Chroma, contrast, gray scale, saturability adjustment
  • Support preview of input signal
  • Support signal cropping
  • Support configures on site, plug and play, hot swappable
  • Support station logo
  • Show blue screen when no signal input
  • Support 4 channels 3.5mm audio input
Brand:
DigiBird
Product Type:
CVBS Input Card
Specifications
Maximum Operating Temperature:
50°C
Special Features:
Backward Compatible, Signal Source Cropping
Card Type:
Input Card
Power Rating:
15W
For Use With:
HPRO Series Video Wall Controller
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
Upto 720x480Pixel,720x576Pixel
Bandwidth:
20Gbps
Input Video Signal Level:
1mVp-p
Inputs and Ports
Port Type:
4xBNC
Card Slot Type:
CVBS
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2.1cm
Weight:
0.3kg

DB-VWC2-HP-IC-VIDEO4 1 (DB-VWC2-HPro-Card-Manual.2021.V1.pdf, 1,417 Kb) [Download]

DB-VWC2-HP-IC-VIDEO4 2 (Datasheet-of-VWC2-HPro_2021-V1.01.pdf, 257 Kb) [Download]
