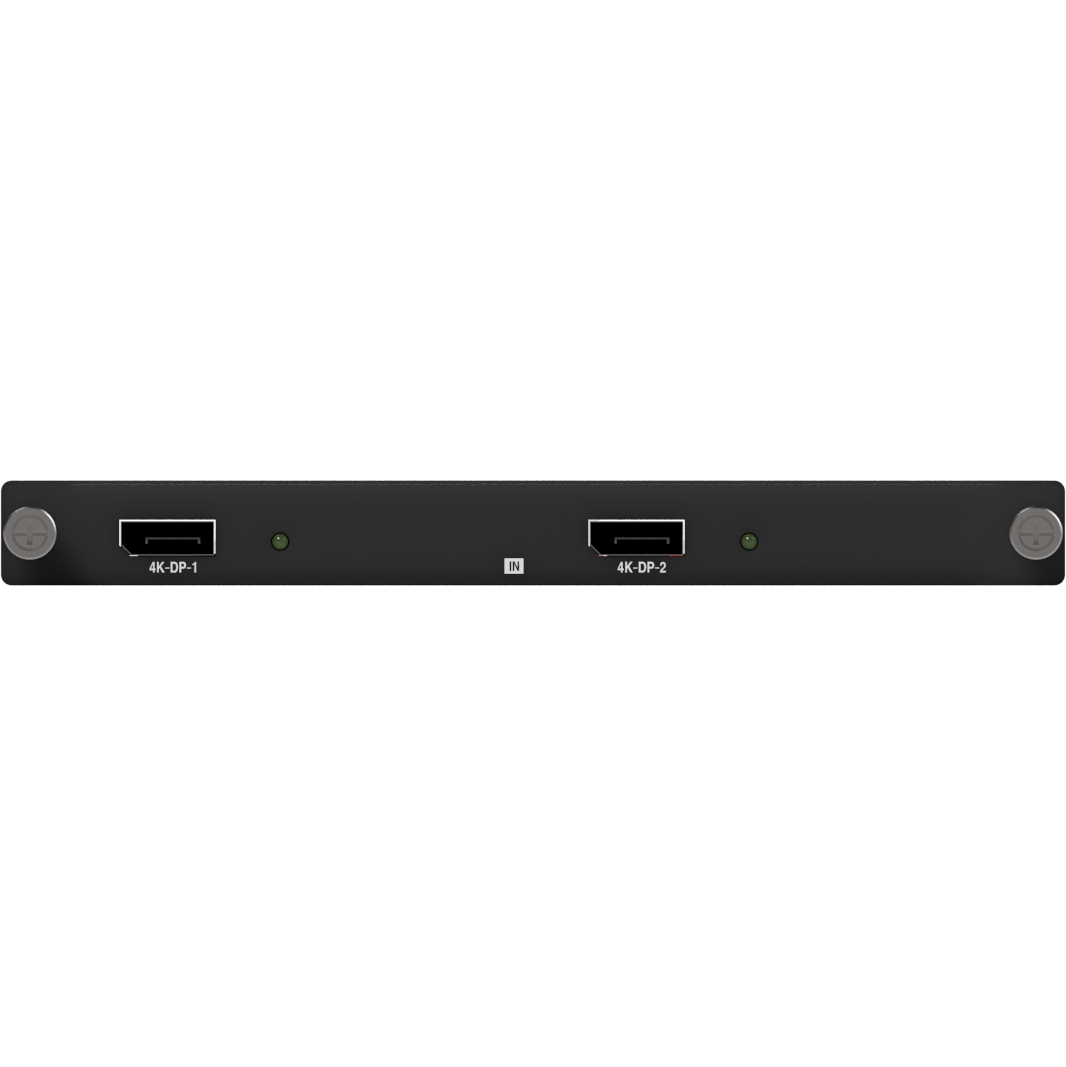

DB-VWC2-HP-IC-4KDP2 2-channel 4K DisplayPort input card for the VWC2-HP series video wall controller
Please sign in so that we can notify you about a reply
To fulfill growing demand of UHD visual experience, DigiBird launched HPro series controller to deliver 4K/60Hz performance at 4:4:4. Same as other models, HPro is hardware-based controller as well without compromising reliability. Supports embedded audio and capacity to work as centralized controller make it outstanding within the industry.
Features
- 4k 60Hz processing at 4:4:4 to deliver 4K experience without any compromising
Brand:
DigiBird
Specifications
Product Type:
4K DP Input Card
Maximum Operating Temperature:
50°C
Special Features:
Support Embedded Audio Input
Card Type:
Input Card
Power Rating:
12.3W
For Use With:
VWC2-HP Series Video Wall Controller
Humidity:
10% to 80%
Minimum Operating Temperature:
0°C
Performance
Resolution:
3840x2160Pixel@30Hz
Bandwidth:
10.8Gbps
Supported Video Type:
4K60
Input Video Signal Level:
130mV to 1300mV
Inputs and Ports
Port Type:
2xDP
Dimensions
Length:
20.3cm
Width:
22.4cm
Height:
2cm
Weight:
0.3kg
