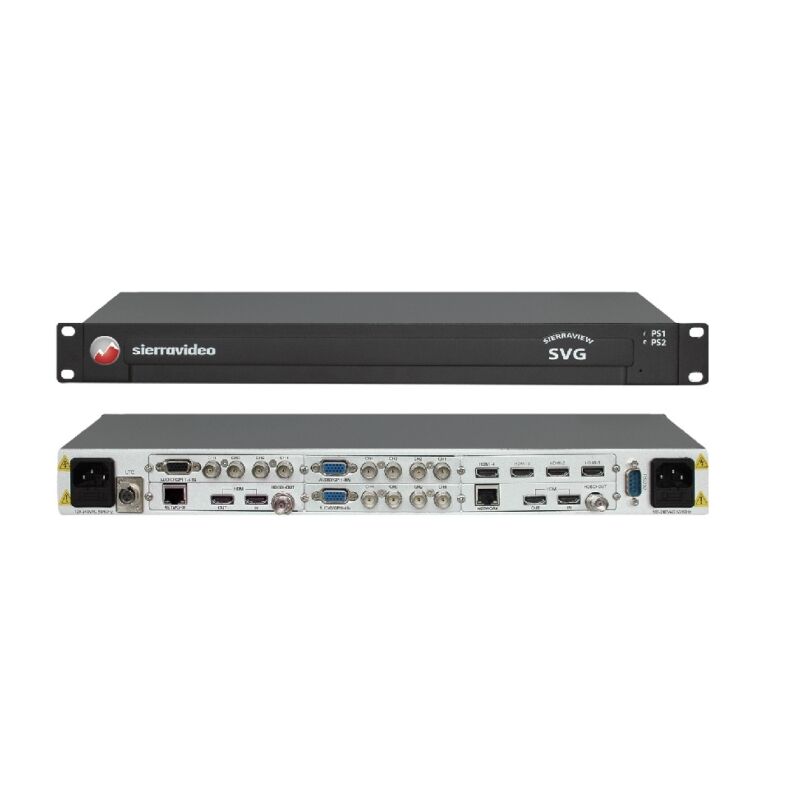

SVG-3GHD-SA Input Modular MultiViewer, 20Hz to 20kHz, CVBS & SD/SDI Auto Switching Type
Please sign in so that we can notify you about a reply
The SVG MultiViewer uses a modular architecture, allowing customizing of inputs in groups of four for up to 20 inputs with an additional HDMI input on each output module. The three input modules consist of the CV/SD module (auto−sensing CVBS & SD/SDI), the 3G HD−SDI module (auto−sensing SD−HD/SDI), and an HDMI module (with EDID). The output module consists of an HD−SDI output with a cloned HDMI output (to 1920x1080p).The SierraView SVG Modular MultiViewer can handle up to 20 high−quality, auto−sensing inputs (Composite, SD−SDI, HDMI and HD−SDI up to 3G) plus an HDMI input located on each output module − for a total of 21 inputs displayed on a single HDMI or HD−SDI monitor (or up to 18 inputs on a dual output system).
Features
- Multi–format input combinations with four inputs per module
- HDCP support
- Audio level monitoring
- Auto–sensing CVBS/SD, HD–SDI (up to 3G) and HDMI input modules
- Flexible output option — either single or dual display: 4:3, 16:9 and free–form
- Tally support
- Web browser set up and control
- Output resolutions up to 1920x1080p in either HDMI or HD–SDI
- Selectable analog and digital clocks, on–air timer and countdown timer
- Dynamic UMDs & Tally information from routers and switchers
- Supports format display of input signals with AFD information
- Supports audio monitoring and full–screen video output
- Alarms for frozen or black video, video loss, and audio silence or excessive level
- Built–in web server via RJ45 for configuration and remote control
- TSL & GPS Serial Timing
- Dual Power Supplies Included
Brand:
Kramer
Part number:
28-20001498
Product Type:
Input Modular MultiViewer
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Auto Switching Type:
CVBS & SD/SDI
Number of Channels:
Special Features:
Web Browser Set up and Control, Web Browser Set up and Control, Audio Level Monitoring, Dynamic UMDs & Tally Information from Routers and Switcher
Power Rating:
120W
Applications:
Studio, OB Van, Production Room
Minimum Operating Temperature:
0°C
Includes:
Dual Power Supplies Included
Performance
Frequency Rating:
20Hz to 20KHz
Dimensions
Width:
43.6cm
Depth:
47cm
Height:
4.4cm
Weight:
4.3kg
Other
Voltage Rating:
100 to 250V AC
