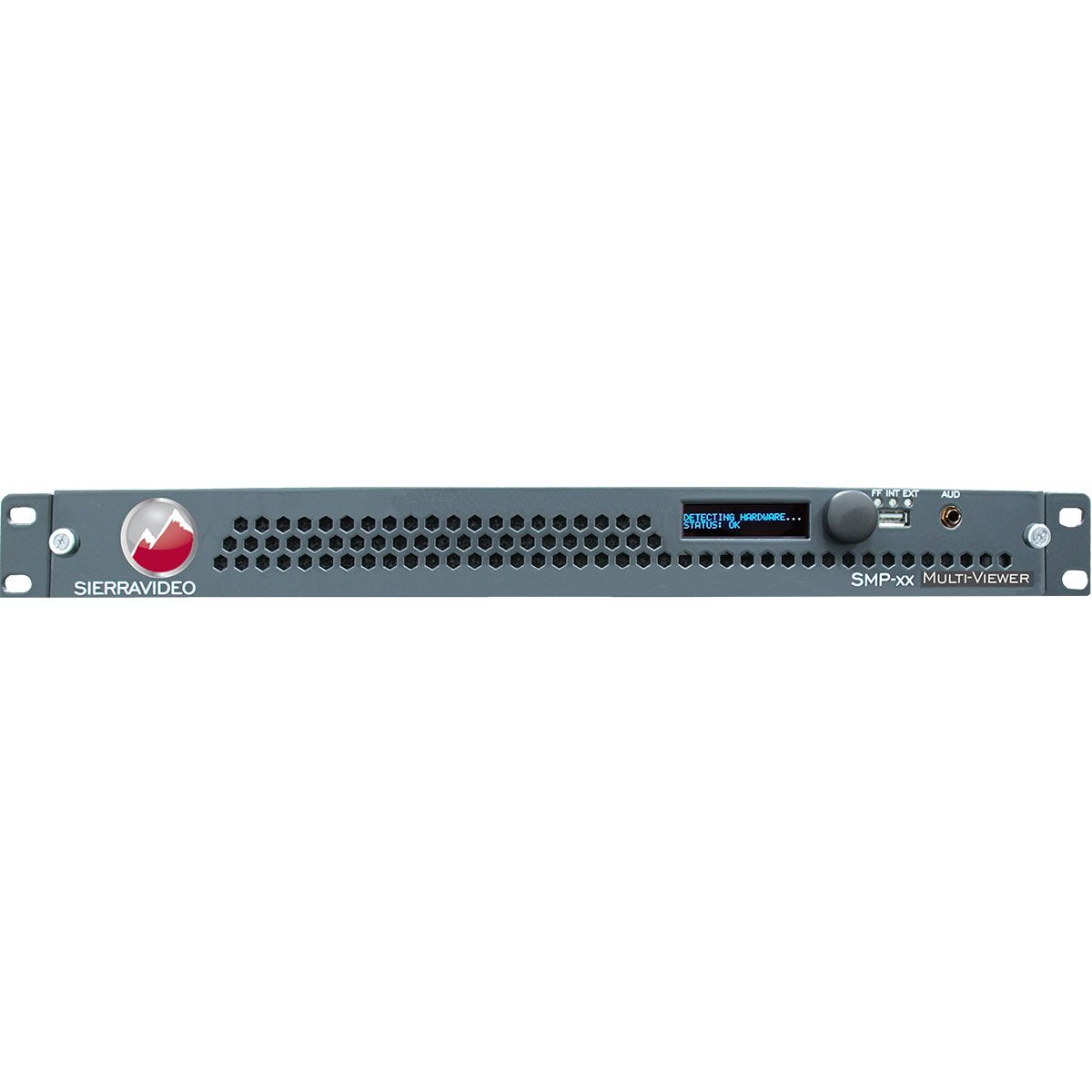

SMP-S4UHD-12G Multiviewer
Please sign in so that we can notify you about a reply
A fully featured modular MultiViewer supporting a wide range of video and audio input formats including SDI up to 12G, HDMI and Composite Video. Flexibility and image processing quality are the key features of these units. Starting from a base frame - these MultiViewers are completely configurable. Rear cards are selected to match the required input format and paired with the same number of video processing cards.
Features
- Modular multi−format MultiViewer
- Multi–Format Video Input Cards: HDMI (with HDCP support), 3G HD–SDI, Composite Video, RGBHV (525/625 Lines Video level
- 2 HDMI/3G-SDI output at 2160p/50/59/60Hz
- Frame Options: Standard SMP–Sxx or optional SMP–Rxx which includes a 16x16 3G HD–SDI router
- Free–Form Scale & Position: All video tiles are fully customizable
- Multiple output card options: Offering DVI–D/HDMI and HD–SDI in parallel for each independent output.
- Embedded Audio Metering: Up to 16 channels of embedded audio per input.
- Audio Monitoring: Embedded audio on MultiView outputs and/or via Front Panel 1/4 Inch Jack.
- Hot Swappable Cards.
- Control & Setup Via LAN.
- Multiple Alarms, Clocks, Timers & Logos.
- Decoding & Monitoring: Closed caption and Teletext data.
- Under Monitor Display, GPI & Tally Support.
- Exceptional Image Quality: State of the art image processing algorithms.
- Multiple MultiViewers: 2nd output card can be added to give independent 4x2 and 8x2 MultiViewers in the same SMP–xx frame.
- Future Expansion: Up to 16 Inputs in the SMP–xx frame or up to 72 inputs via MP–xx frame.
- Genlock Input.
- Options: Redundant Power Supply (RPS), Analogue & Digital Audio I/O cards for onscreen metering of external audio & VIP–3D Scaler Card for Dolby® E Metering (But not decoding).
- Size: 19" (1U)
Brand:
Kramer
Part number:
04-SMP-S4UHD-12G
Product Type:
Multiviewer
Specifications
Colour:
Black
Number of Channels:
32
Special Features:
Multiple Output Card Options: Offering DVI-D/HDMI and HD-SDIin Parallel for Each Independent Output, Free-Form Scale & Position: All Video Tiles are Fully Customizable, 2 HDMI/3G-SDI output at 2160p/50/59/60Hz
Includes:
16x16 3G HD-SDI Router
Performance
Frequency Rating:
50/60Hz
Inputs and Ports
Input Port Type:
HDMI (with HDCP Support), 3G HD-SDI, Composite Video, RGBHV (525/625 Lines Video Level)
Output Port Type:
2xHDMI/3G-SDI MV output at 2160pixels/50/59/60Hz 2160pixels/50/59/60Hz
