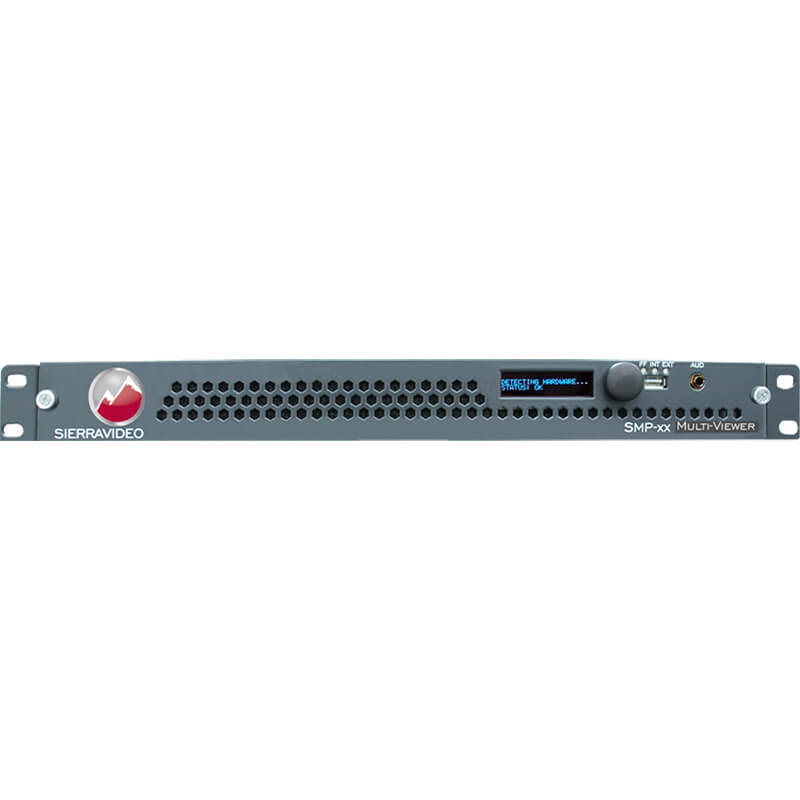

SMP-R24HD-12G Multiviewer, 32 Channels
Please sign in so that we can notify you about a reply
The SMP−range is a fully−featured modular multi−format MultiViewer. Its flexibility lets you monitor a wide range of both video and audio sources on one or two independent displays at up to 4K@30Hz output resolutions.
Features
- Modular multi−format MultiViewer
- Multi–Format Video Input Cards: HDMI (with HDCP support), 3G HD–SDI, Composite Video, RGBHV (525/625 Lines Video level
- 2 HDMI/3G-SDI output at 2160p/50/59/60Hz
- Frame Options: Standard SMP–Sxx or optional SMP–Rxx which includes a 16x16 3G HD–SDI router
- Free–Form Scale & Position: All video tiles are fully customizable
- Multiple output card options: Offering DVI–D/HDMI and HD–SDI in parallel for each independent output.
- Embedded Audio Metering: Up to 16 channels of embedded audio per input.
- Audio Monitoring: Embedded audio on MultiView outputs and/or via Front Panel 1/4 Inch Jack.
- Hot Swappable Cards.
- Control & Setup Via LAN.
- Multiple Alarms, Clocks, Timers & Logos.
- Decoding & Monitoring: Closed caption and Teletext data.
- Under Monitor Display, GPI & Tally Support.
- Exceptional Image Quality: State of the art image processing algorithms.
- Multiple MultiViewers: 2nd output card can be added to give independent 4x2 and 8x2 MultiViewers in the same SMP–xx frame.
- Future Expansion: Up to 16 Inputs in the SMP–xx frame or up to 72 inputs via MP–xx frame.
- Genlock Input.
- Options: Redundant Power Supply (RPS), Analogue & Digital Audio I/O cards for onscreen metering of external audio & VIP–3D Scaler Card for Dolby® E Metering (But not decoding).
- Size: 19" (1U)
Brand:
Kramer
Part number:
04-SMP-R24HD-12G
Product Type:
Multiviewer
Specifications
Colour:
Black
Number of Channels:
32
Special Features:
Exceptional Image Quality: State of the Art Image Processing Algorithms, Audio Monitoring: Embedded Audio on MultiView Output and/or via Front Panel 1/4in Jack
Performance
Frequency Rating:
50/60Hz
Inputs and Ports
Input Port Type:
HDMI (with HDCP Support), 3G HD-SDI, Composite Video, RGBHV (525/625 Lines Video Level)
Output Port Type:
24x3G-SDI Router Output and 2xHDMI/3G-SDI MV Output at 2160pixels/50/59/60Hz
