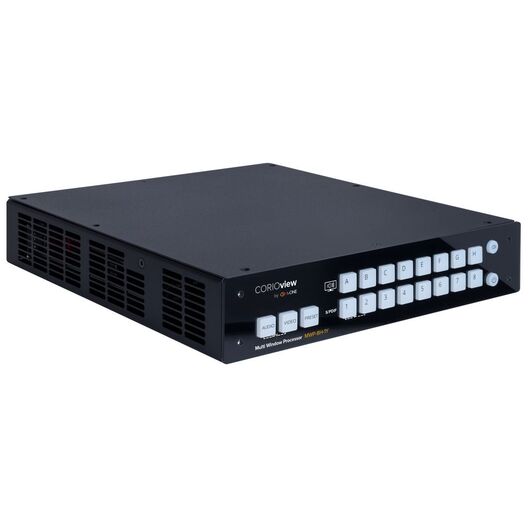

MWP-8GS-1Y CORIOview 8x3G-SDI in 1x4K HDMI Out Multi Window Processor
Please sign in so that we can notify you about a reply
CORIOview is the fastest, most intuitive 4K multi-window processor with up to 8 sources. This easy to use, plug and play solution features front panel control for preset recall or source selection. With six (6) product variants CORIOview can take in almost any input type and display it on a HDMI display up to 4K. Input types include: IP, HDMI, DVI-U and SDI.
The CORIOview multi-window processor is available in six off-the-shelf models as well as a wide variety of made to order versions.
Features
- Advanced 4K processor with up to 8 sources
- 1/2 RU form factor with ultra-quiet operation
- Intuitive Front Panel Control for presets and switching
- Mixed Input types including: IP, HDMI , DVI-U & SDI
- HDCP Handling on HDMI Inputs & Outputs
- Eye-catching transitions or fade through black
- Source labeling and Borders
- Info button to easily indicate your source selection
- Audio breakaway from SPDIF or display
- CORIOgrapher touch-enabled control software
- Third party control through API or AMX & Crestron plug-ins
- Available in six (6) variants
- 19" rack, surface or ONErack mounting options
Brand:
tvONE
Specifications
Product Type:
Window Processor
Maximum Operating Temperature:
40°C
Colour:
Black
Number of Channels:
12
Control Type:
RS-232, RJ45
Special Features:
Advanced 4K Processor, Intuitive Front Panel Control, HDCP Handling, Eye-Catching Transitions, Audio Breakaway
Applications:
Medical Training, CORIOgrapher Software
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Includes:
(1) Printed Quick Start Guide, (1) USB Key, (1) Power Supply
Performance
Maximum Input Resolution:
1920x1080pixels@60Hz
Maximum Output Resolution:
3840x2160pixels@24Hz
Colour Space:
BT.601, BT.709
Frequency Rating:
50 to 50Hz
Alignment Jitter Amplitude:
0.1m, 0.2m, 0.3m
Inputs and Ports
Input Port Type:
8x3G-SDI
Output Port Type:
4KxHDMI
Dimensions
Width:
21.7cm
Depth:
24.4cm
Height:
4.4cm
Weight:
1.7kg
Other
Voltage Rating:
110 to 240V AC
Standards Met:
FCC, CE, RoHS, UL
