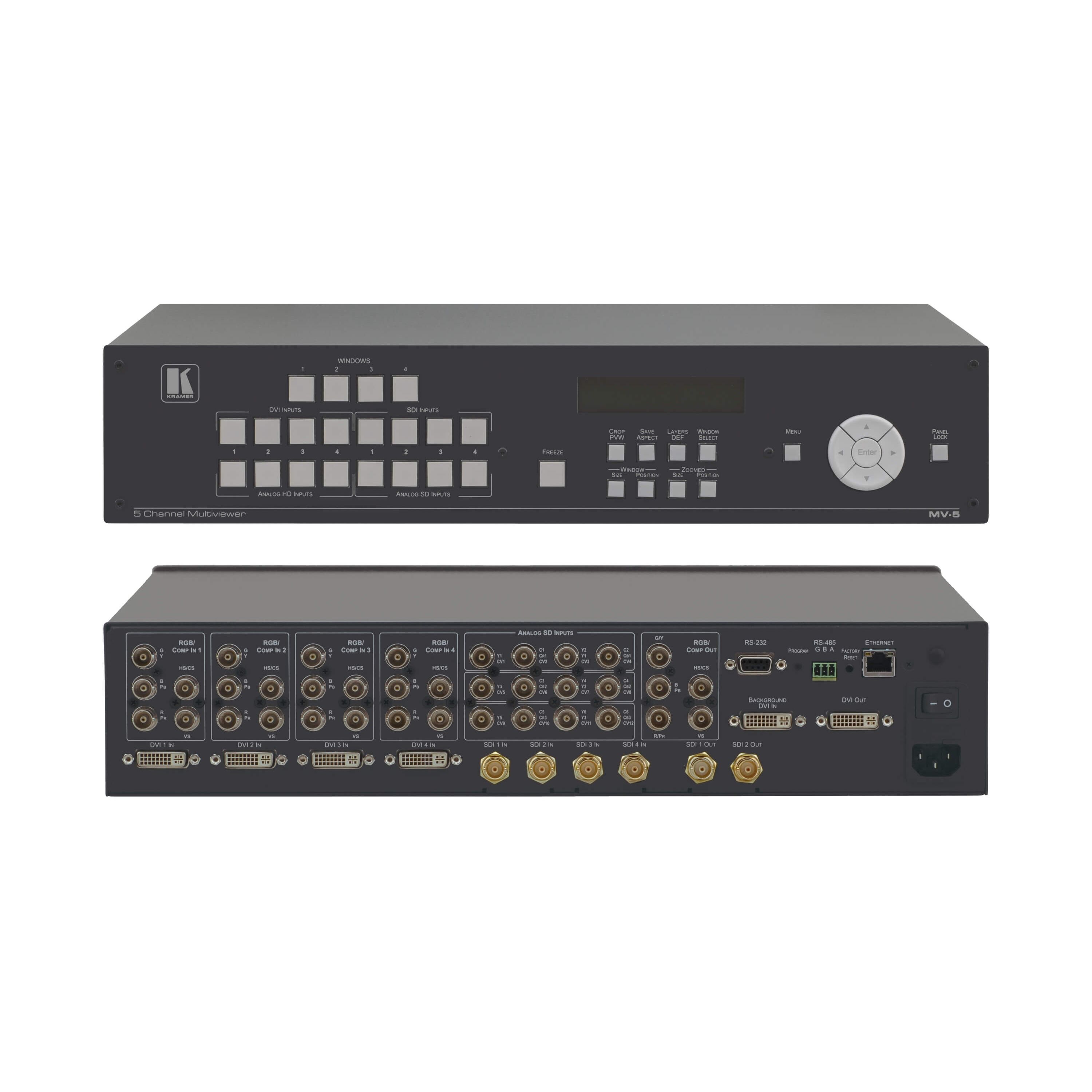

MV-5/220V 5-Channel Multiviewer, 220V
Please sign in so that we can notify you about a reply

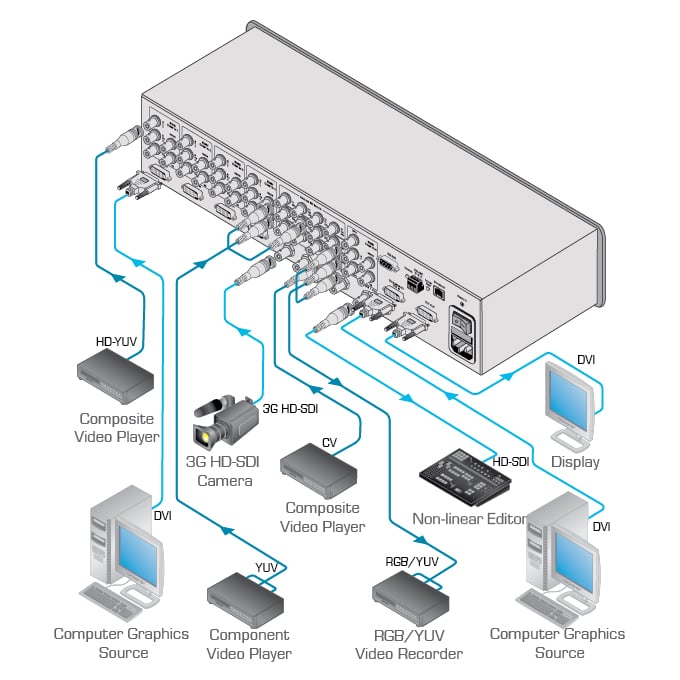

The MV−5 is a versatile, high−performance video and graphic multi−window viewer for DVI signals, SD and HD analog signals up to 1920x1200@60Hz, and SDI signals up to 3G HD−SDI. The device can window up to four sources (plus a background) in any layout and output the image as SDI, DVI, component and composite video signals. Both preprogrammed and customizable screen division is supported.
Features
- Max. Input Data Rate — 3Gbps.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Multi–Video Output Formats — SD–SDI (259M), HD–SDI (292M) and 3G HD–SDI (SMPTE 424M), HDMI, HD, SD, analog and composite.
- HDTV Compatible.
- HDCP Support on DVI Inputs/Outputs.
- Powerful Cross Conversion — Any format to any format, any standard to any standard.
- Input Cable Equalization — Up to 350m (1150ft) for SD signals, 140m (459ft) for 1.5GHz HD signals, and 120m (394ft) for 3GHz HD signals.
- Chroma–Key Engines — Four independent chroma–key engines for each image layer.
- Window and Image Scaling — Zooming (up to 1000%) and aspect ratio control.
- Independent Layer Transparency Control.
- Image Controls — Brightness, contrast, color and sharpness.
- Window or Input Label Insertion.
- 16 User–Definable Screen Layouts.
- Screen Handling Buttons — Freeze, size, position.
- Lock Button — To prevent unwanted tampering.
- Flexible Control Options — Front panel with menu LCD, on–screen display (OSD), Ethernet and RS–232.
- Worldwide Power Supply — 100–240V AC.
Brand:
Kramer
Part number:
60-80036020
Product Type:
5-Channel Multiviewer
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Number of Channels:
Control Type:
Front Panel Button, RS-232, Ethernet
Version:
220V
Special Features:
Multi-Video Output Formats, Powerful Cross Conversion, Chroma-Key Engines, Independent Layer Transparency Control
Front Panel Display Type:
LCD
Power Rating:
57VA
Applications:
Professional Broadcasting and Production Studios, Presentation, Post-Production
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Cord, Rack ”Ears”
Performance
Maximum Input Resolution:
3Gbps
Maximum Output Resolution:
800mVpp/75Ω
Colour Space:
RGB for Input, RGB for Output
Frequency Rating:
50/60Hz
Maximum Transmission Distance:
up to 1200m
Data Transfer Rate:
Up to 2.97Gbps
Alignment Jitter Amplitude:
Better than 0.2UI
Inputs and Ports
Input Port Type:
4xRGB/Component HD on 20 BNC Connector, 6xAnalog SD on 12 BNC Connector, 5xDVI-D on DVI-I Connector, 4xSDI on BNC Connector
Output Port Type:
1xRGB/Component HD on 5 BNC Connector, 1xDVI-D on a DVI-I Connector, 2xSDIon BNC Connector
Dimensions
Width:
43.6cm
Depth:
18.4cm
Height:
8.8cm
Weight:
3.7kg
Other
Voltage Rating:
100 TO 240V AC
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
