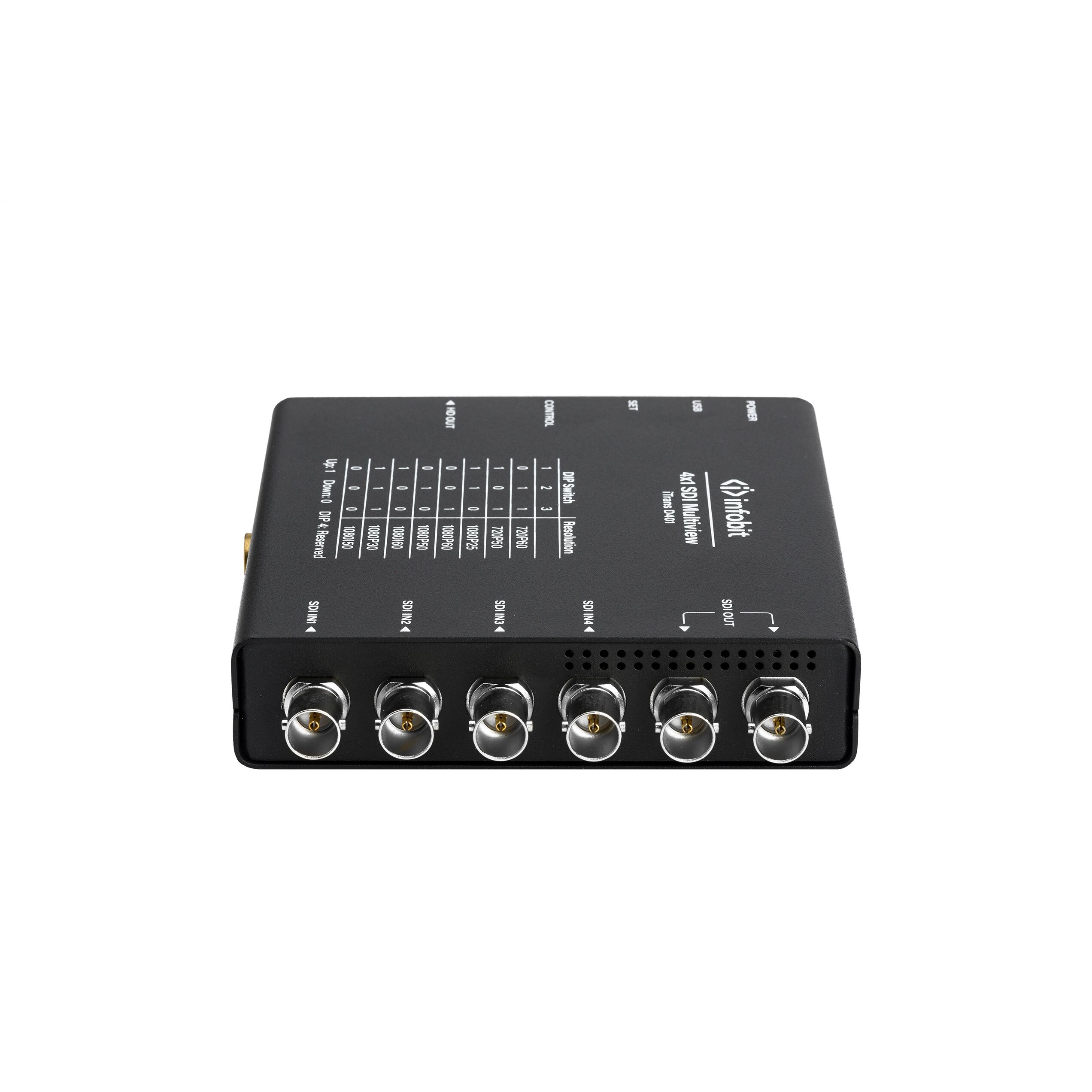

iTrans D401 SDI 4x1 Multiviewer, RJ45, Seamless Switching, Level-A
Please sign in so that we can notify you about a reply
The iTrans D401 is a professional 4x1 SDI multiviewer that supports multiple 3G SDI signals. It supports 15x displaying mode including single image, dual images, quad images modes. With network control by the Windows-based software, the displaying modes can be switched. It supports seamless switching without any black screen intervals.
Features- 4x 3G SDI inputs
- 2x 3G SDI mirror outputs
- 1x HDMI output
- Single image, Dual-image PIP, Dual-image POP, Quad-image split view
- Auto-cycle of single-images modes
- Adaptive input signal, optional output resolutions
- Seamless switching without any black screen intervals
- DIP switch to setup output resolutions
- With network control software
- Supports SD/ HD/ 3G SDI
- 3G SDI Level A
- With both DV and USB C power supply
Brand:
Infobit
Product Type:
SDI Multiviewer
Specifications
Maximum Operating Temperature:
50°C
Colour:
Black
Auto Switching Type:
3G HD-SDI
Number of Channels:
4 (Input), 2x1 (Output)
Control Type:
RJ45
Special Features:
Image Split View, Auto Cycle of Single Images Modes, DIP Switch to Setup Output Resolutions
Minimum Operating Temperature:
0°C
Includes:
1xiTrans D401, 1xDC Power Supply, 1xUser Manual
Performance
Colour Space:
SD/HD/3G-SDI (Input & Output)
Inputs and Ports
Input Port Type:
4-CH 3G-SDI Signal Inputs
Output Port Type:
2-CH 3G-SDI Signal Outputs, 1-CH HDMI Output
Dimensions
Width:
10.9cm
Depth:
12.6cm
Height:
2.5cm
Weight:
1.5kg
Other
Voltage Rating:
12V DC
No reviews found
