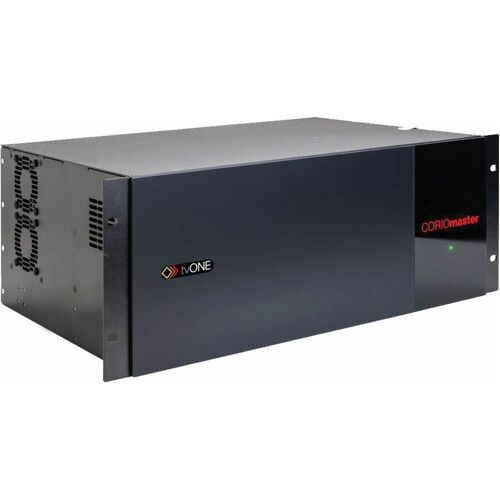

CM-C3-540-CPU-HTTPS Video Wall Processor, CORIOmaster (C3-540)
Please sign in so that we can notify you about a reply
C3-540 CORIOmaster is a powerful, efficient approach to building large video display systems. Multiple video windows can be positioned on LED, display based videowalls or projector edge blends, displaying any of the sources connected to CORIOmaster. Windows can be visually “transitioned” into position, resized or rotated to any proportion allowing designers to achieve striking visual effects. Each system can support up to 4 separate video canvasses. CORIOgrapher v2, the control software for the CORIOmaster series of processors, is a simple, easy to use design interface that enables window and source positioning and transition effects. This dynamic feature is easily managed through presets in CORIOgrapher or by simple commands executed by third party control systems. 50 presets can be saved permanently in the system.
Features
- Secure command interface
- REST API
- Real-time status feedback through events
- H.265 4K/30 Streaming Media & 4K Playback Input Module
- IP decoding Low latency mode (<250 ms) using the Magenta-100 Encoder
- Audio support
- Audio module
Brand:
tvONE
Product Type:
Video Wall Processor
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Number of Channels:
Control Type:
RS-232, RJ45
Special Features:
Secure Command Interface, REST API, Real-time Status Feedback, 65 4K/30 Streaming Media & 4K Playback Input Module, IP Decoding Low Latency Mode, Audio Support, Audio Module
Applications:
Video Processing
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Performance
Maximum Input Resolution:
4096x2160pixels
Maximum Output Resolution:
3840x2160pixels 4:4:4
Data Transfer Rate:
1.485Gbps
Alignment Jitter Amplitude:
0.1m, 0.2m, 0.3m
Inputs and Ports
Input Port Type:
8xHDMI, DVI, RGB, YPbPr
Output Port Type:
SD/HD-SDI/3G-SDI@1080p60
Dimensions
Width:
48.2cm
Depth:
33.4cm
Height:
17.8cm
Weight:
15kg
Other
Voltage Rating:
110 to 240V AC
Standards Met:
FCC, CE, RoHS, ULc
