CLUX-2HPIP 2x1 HDMI Multiviewer
Please sign in so that we can notify you about a reply

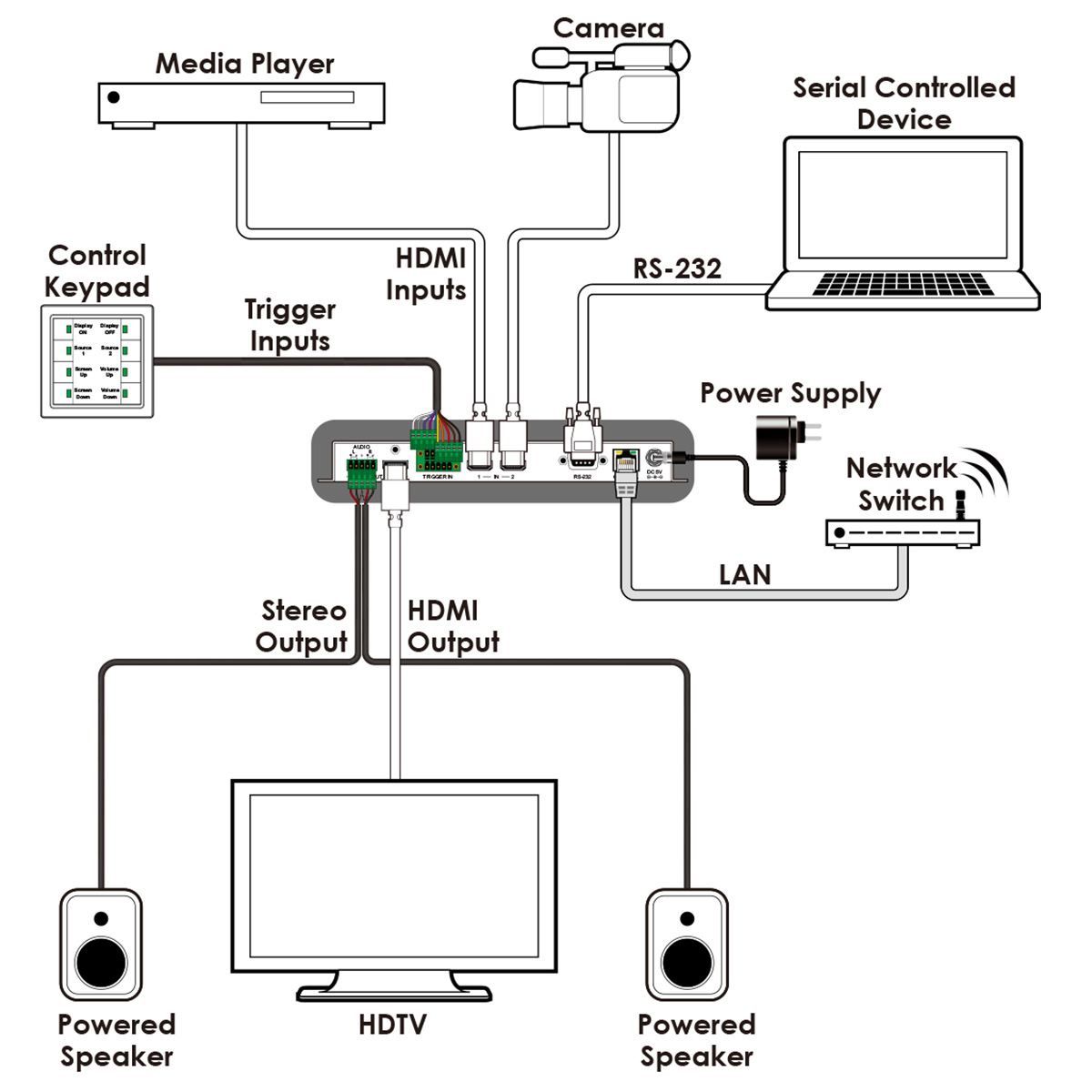

This HDMI Multiviewer is capable of scaling up to 2 sources and displaying both simultaneously on a single HDMI output within their own windows. This is the ideal solution for monitoring multiple sources simultaneously for use in control rooms, or for flexible display presentations in conference rooms or classrooms. Both inputs support resolutions up to 1920×1200p@60Hz and LPCM audio with up to 8 channels at 192kHz. The multi-window output is sent to a single HDMI output at scaled resolutions up to 1920×1200@60Hz along with the selected audio source. The user can use their PC to generate images or text to be overlaid on top of a live HDMI input in real time. This unit can be controlled easily by use of the front panel controls (with OSD) as well as by WebGUI, Telnet, RS-232, IR, and 8 direct trigger inputs.
Features
- Inputs and output support HD resolutions up to 1080p60 and PC resolutions up to WUXGA (RB)
- Supports audio pass-through of 7.1 channel LPCM sources via HDMI
- Balanced analog stereo audio extraction support via 5-pin terminal block (LPCM 2.0 sources only)
- Supports PiP (Picture-in-Picture), Side-by-Side, and free positioning window modes
- Easy individual window size, position and layer priority adjustment
- Supports per-window mirror, flip, swapped, and image freeze (w/ live audio) functionality
- Chromakey and uploadable logo support
- 8 Trigger inputs for easy remote control of the unit with optional keypad
Brand:
Cypress Technology
Product Type:
HDMI Multiviewer
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Number of Channels:
Control Type:
1 RS-232 (DE-9), 1 Ethernet (RJ45), 8 Triggers (10-Pin Terminal Block)
Special Features:
Supports PiP (Picture-in-Picture), Side-by-Side, and free positioningwindow modes, Easy individualwindow size, position and layer priority adjustment, Chromakey anduploadable logo support, 8 Trigger inputs for easy remote control of the unit with optional
Power Rating:
5.1W
Chassis Material:
Metal
Applications:
Demo Room Display, Security Monitoring, Hotel Lobby Information Displays
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Picture-in-Picture, Side-by-Side or Freely Positioned (with Layer Priority Control)
Performance
Maximum Input Resolution:
HDMI (1920x1080pixels@60Hz) (1920x1200pixels@60HzRB)
Maximum Output Resolution:
HDMI (1920x1080pixels@60Hz) (1920x1200pixels@60HzRB)
Frequency Rating:
60Hz

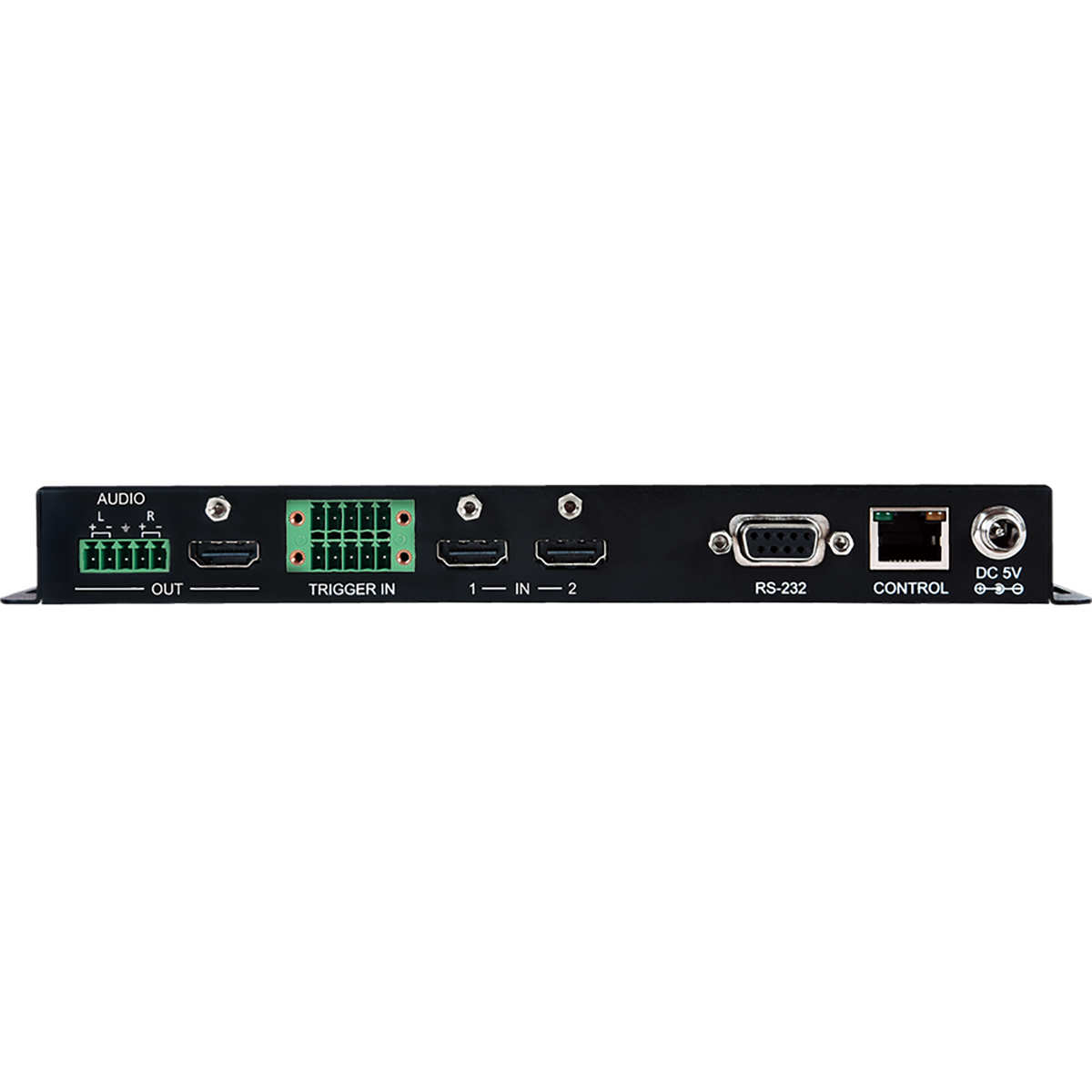

Inputs and Ports
Input Port Type:
2xHDMI-Type A
Output Port Type:
1xHDMI-Type A
Dimensions
Width:
23.15cm
Depth:
11.6cm
Height:
2.5cm
Weight:
652g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Listed
