PIP-4 4 Composite Video Picture-in-Picture Inserter
Please sign in so that we can notify you about a reply
The PIP−4 is a high−performance picture−in−picture inserter for composite video signals. The PIP output can display up to four images simultaneously, each of which can be sized and positioned individually.
Features
- Picture–In–Picture Options — All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal–sized images.
- Multi–Format Operation — s–Video and composite video outputs.
- Multi–Standard Operation — PAL & NTSC compatible inputs & outputs (no format conversion).
- USB Mouse Connector — For convenient navigation and control, including the OSD
- Built–In ProcAmp — Brightness, contrast, and saturation for each input.
- Flexible Control Options — Front panel, IR remote, mouse (with OSD), RS–232 & Ethernet.
Brand:
Kramer
Part number:
60-70957090
Specifications
Product Type:
Video Picture-in-Picture Inserter
Y/C Separation:
Adaptive 4-Line Digital Comb Filters
Control Function Type:
Freeze, Front-Panel, OSD, RS-232 and Ethernet, Video Pane Size and Position, Video ProcAmp Functions: Video Zoom
Memory Type:
Non-Volatile Memory
Performance
Digital Resolution:
10bits
Video Frequency Bandwidth:
5.4MHz
Signal-to-Noise Ratio:
64dB
K-Factor:
0.9%
Differential Gain:
1.1%
Differential Phase:
0.8°
Chroma/Luma Delay:
<15ns
Luma Non-Linearity Rating:
0.9%

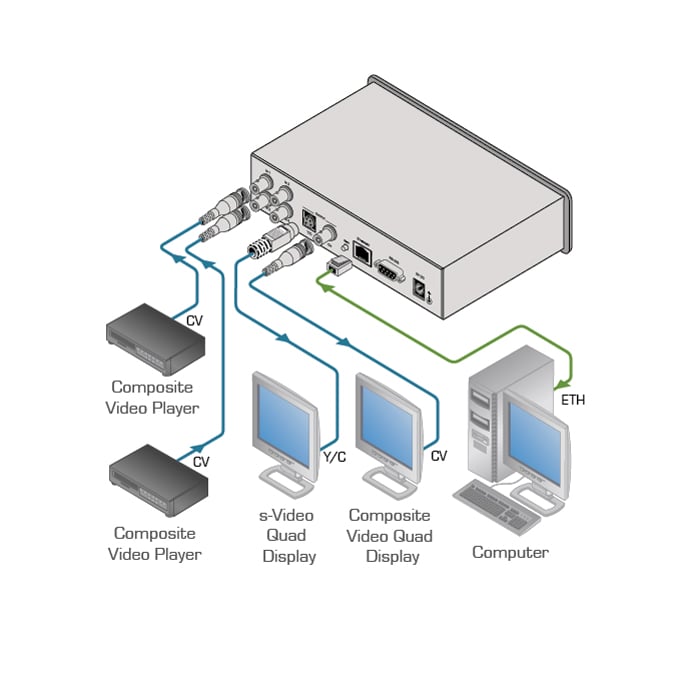

Inputs and Ports
Input Port Type:
4xComposite Video, 1Vp-p/75Ω on BNC Connector
Output Port Type:
1xs-Video, 1xVpp, 0.3Vpp/75Ω on a 4-Pin Connector, 1xComposite Video, 1xVpp/75Ω on a BNC Connector
Dimensions
Width:
21.46cm
Height:
4.3cm
Weight:
0.9kg
Other
Standards Met:
CE, ISO 9001, ISO14001, ISO 18001
