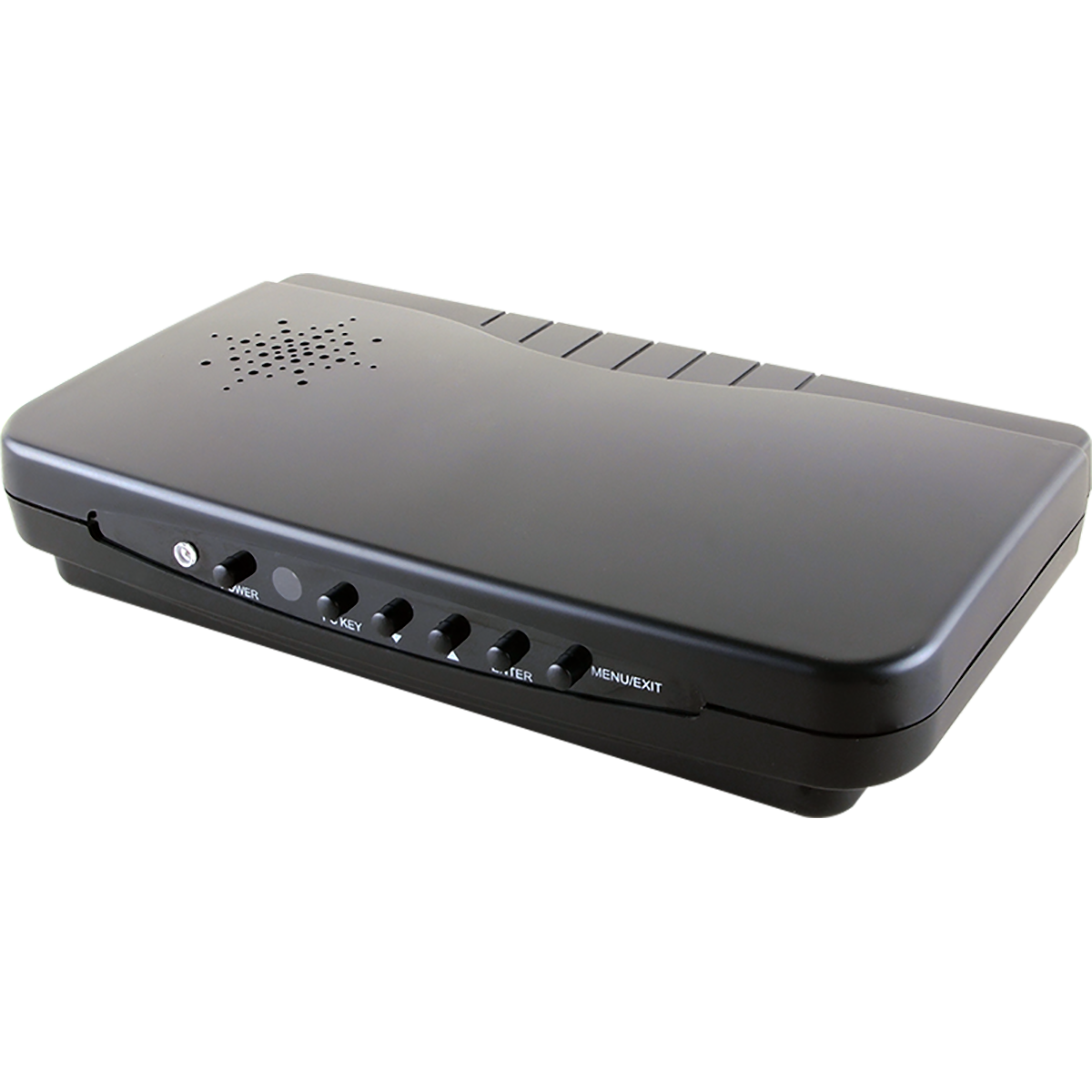

CPT-2370 PC/TV Video Overlay Processor

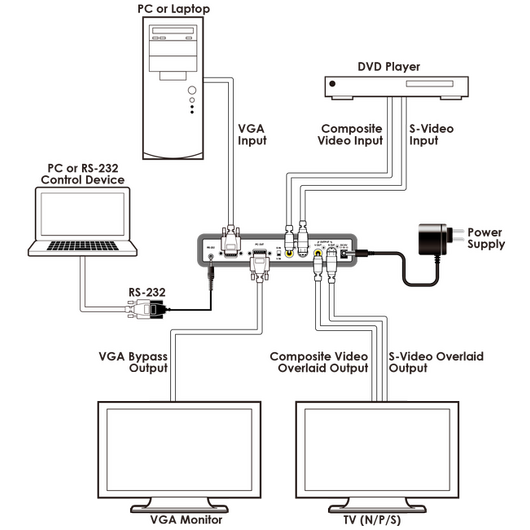

The PC to Video overlay System is Designed to overlay Pc/ Graphics Signal Onto Video Signal or Vise Versa. Moreover, it Can Convert a Variety of Vga Sources to Video Signal. it is Idea for using In applications Like Video Conference, Home theater, Business Presentation and Lecturing Room.

Features

  • Superimpose PC text and graphics onto another video signal. Or superimpose Video signal onto VGA source.
  • Supports VGA to Video conversion

VGA: 640x480, 800x600, 1024x768, 1280x1024, 1600x1200

Video: NTSC, NTSC4.43, PAL, PAL-M, PAL-N or SECAM

  • Supports PC & Video picture adjustment
  • Supports Key adjust and PC aspect
  • Supports Zoom and Pan functions
  • Supports Vertical and Horizontal Overscan/ Underscan control
  • Automatically supports frame rate conversion from 56Hz up to 85Hz
  • Cross-platform compatibility for PC, Macintosh and Notebook
  • Plug-and-Play design, no software driver required
  • Simultaneously design, no software driver required

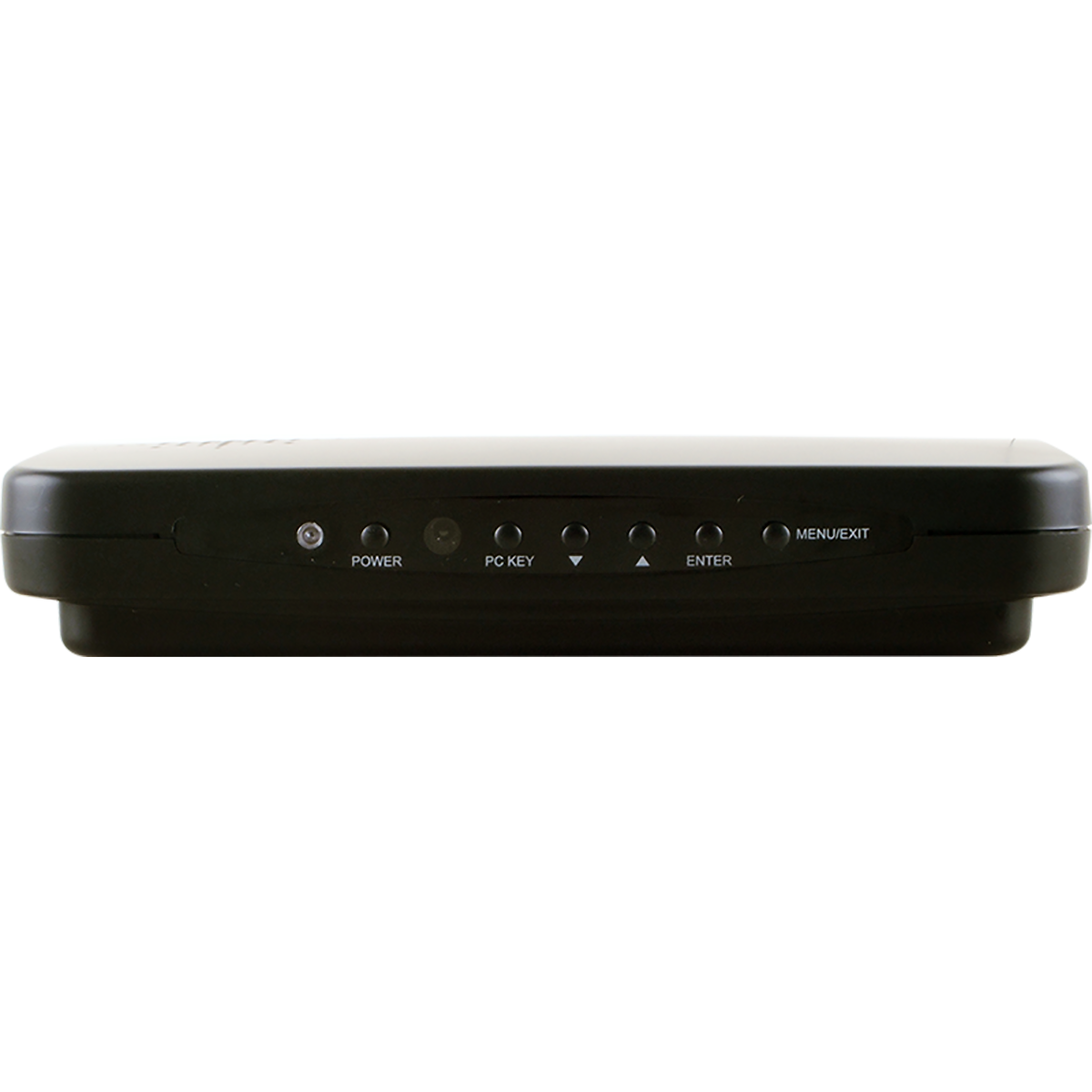

  • Can be adjust from front panel, RS-232 or remote control

Note:

1. The system did not support video format conversion. For example: NTSC in to NTSC out, PAL in to PAL out or SECAM in to SECAM out.

2. In Overlay mode, suggest the users to preserve the Contrast/ Brightness/Color/Hue in default value.

3. The PC to Video or Video to PC overlay system is designed to overlay PC/Graphics onto Video signal or vise versa. Simply select from the Manu, Main Manu→SETUP→OUTPUT-PC KEY/CV KEY.

4. Zoom and Pan functions are not supported with Video signal input is used.

Brand:
Cypress Technology
Product Type:
PC/TV Video Overlay Processor
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
4.6W
Chassis Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to 60°C

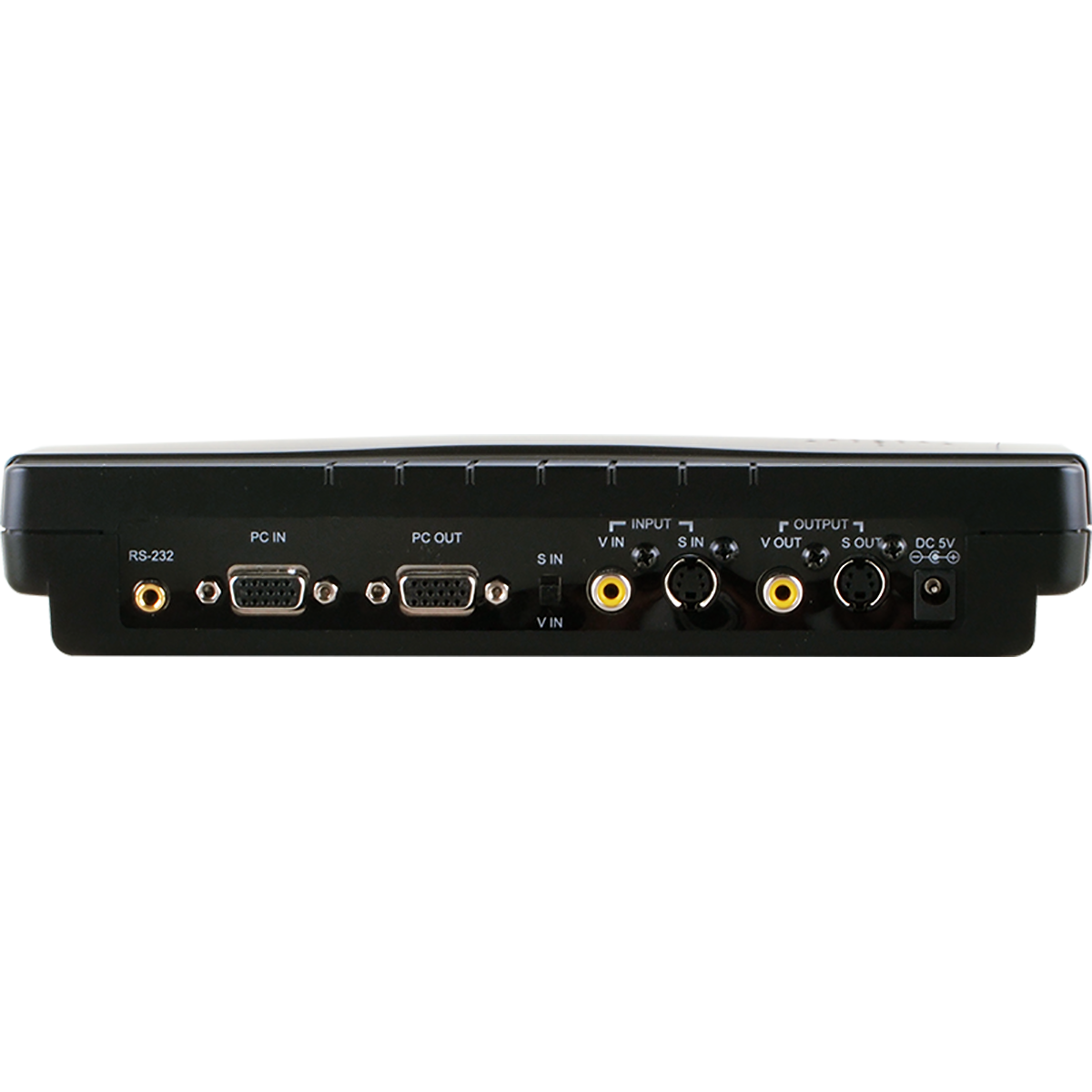

Inputs and Ports
Input Port Type:
1xPC, 1xVideo 1 Vp-p 75Ω, 1xS-Video 1 Vp-p 75Ω
Output Port Type:
NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM
Dimensions
Width:
23.6cm
Depth:
12.3cm
Height:
4.5cm
Weight:
400g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Listed
