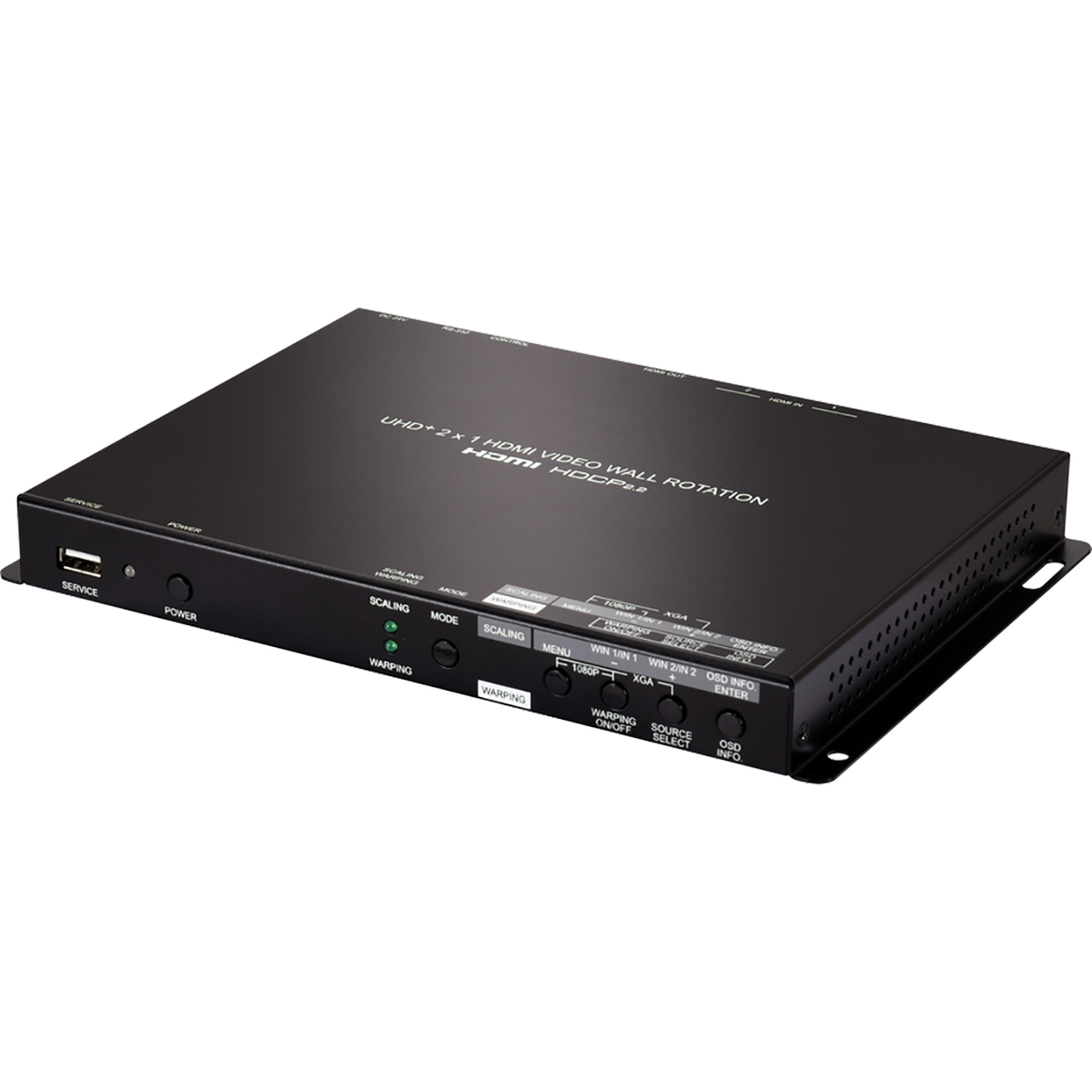

CPLUS-2H1HLR UHD+ 2x1 HDMI Video Wall Rotation Processor
Please sign in so that we can notify you about a reply
This HDMI Video Wall Rotation Processor is Capable of Scaling and Rotating the Input Source to Nearly any angle and Size DesIRed. it’s the Ideal Solution for Presenting Sources across the Unique Video Display arrangements often Found In Commercial Displays, Control Rooms, or Classrooms. HDMI Input and Output Resolutions Up to 4K @ 60Hz With Lpcm 2ch audio. In Rotation Mode the Unit is Capable of Scaling and Rotating the Source, With an accuracy of 1°, as RequIRed. In Scaling Mode, the Unit Can Scale to a Selection of Output Resolutions, Up to 4K @ 60Hz as Well as apply Video MIRror, Flip Freeze Effects and Multi-View to the Output. By Combining multiple Units With an HDMI Splitter or Matrix it is Possible to Create Fantastically Varied arrangements of Rotated Displays for Large Video Wall applications. This is Perfect for Creating Distinct and Eye-Catching advertising or Promotional Displays Limited Only By Your Imagination. Configuring these Large Video Walls is Made Simple By use of Our Video Wall Pc application, allowing the user to Visually Lay Out and Configure the EntIRe Video Wall at One Time In a Graphical Wysiwyg (what You See is What You Get) user Interface. a Number of Common Video Wall arrangement Presets are Included With the Software By Default to Make it Possible to Get Started Quickly. Basic Control of the Unit is Provided By Front Panel Controls With an Informational Osd. Complete Control of the Unit is accomplished By use of Telnet, RS-232 or the Video Wall Pc Software.
Features
- Two source are selectable and supports horizontal/vertical video rotation with zooming in/out and 360 degree display rotation in 1° increments (Rotation Mode)
- Supports Video mirror, flip, freeze and multi-view (Scaling Mode)
- Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
- Custom EDID management
Brand:
Cypress Technology
Product Type:
UHD+ 2x1xHDMI Video Wall Rotation Processor
Specifications
Audio Format:
PCM (2 Channels, 48kHz), Bitstream, LPCM (2 Channels, 48kHz), Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Number of Channels:
Special Features:
Two source are selectable and supports horizontal/vertical video rotation with zooming in/out and 360 degree display rotation in 1° increments (Rotation Mode), Supports Video mirror, flip, freeze and multi-view (Scaling Mode), Wide variety of video adjus
Power Rating:
23W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to 60°C
Performance
Audio Sample Rate:
Up to 4K@60Hz with LPCM 2 CH

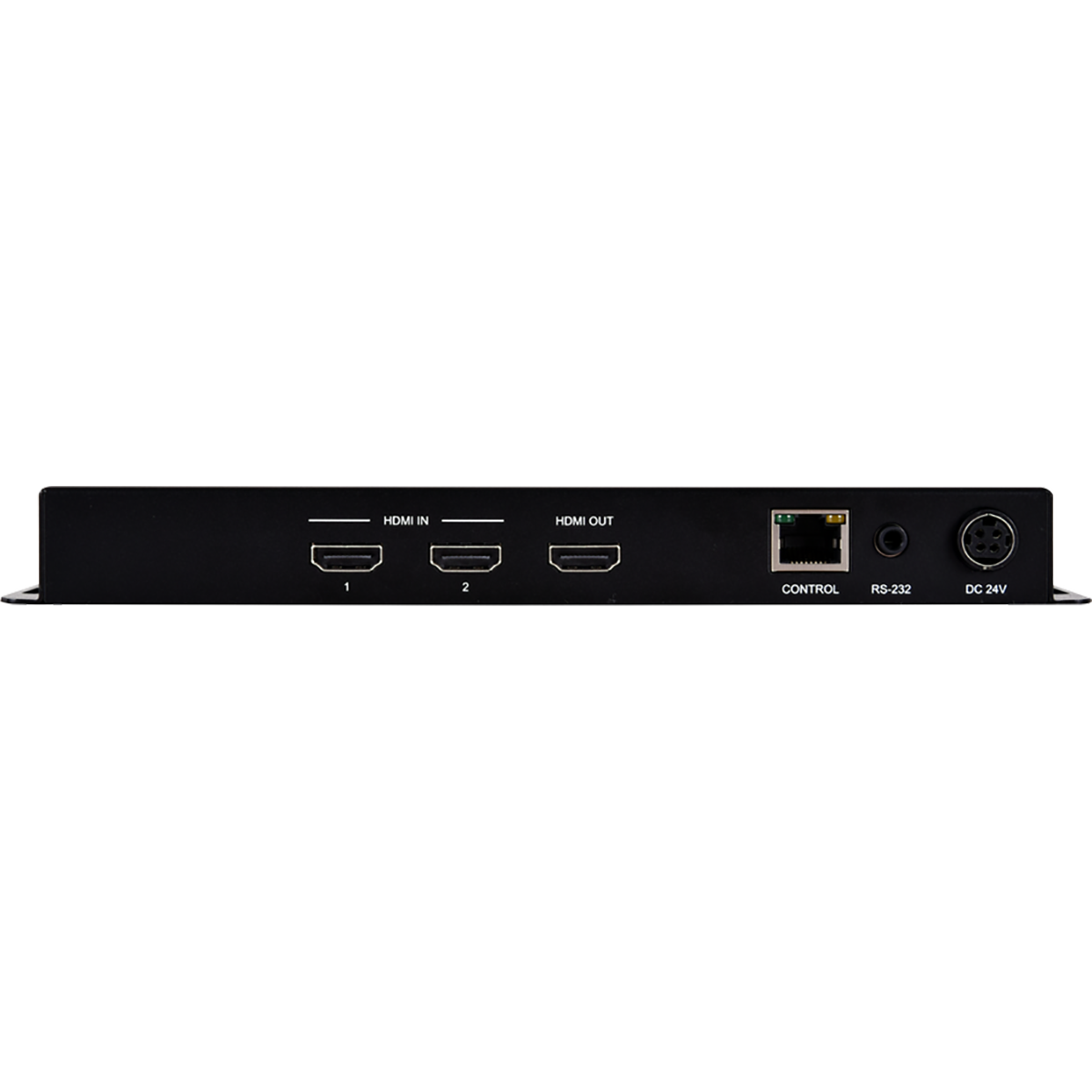

Inputs and Ports
Input Port Type:
2xHDMI-Type A
Output Port Type:
1xHDMI-Type A
I/O Interface Type:
1xRS32, 1xRJ45
Power
Current Rating:
2.6A
Dimensions
Width:
18cm
Depth:
13.2cm
Height:
2.5cm
Weight:
945g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
CE, FCC Compliant, UL Listed
