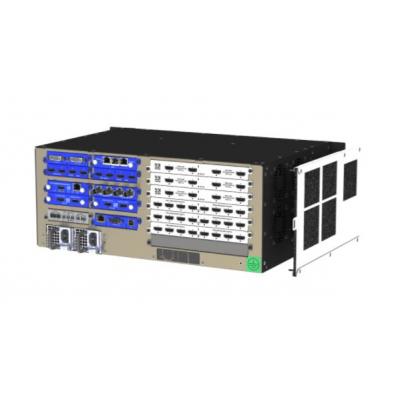

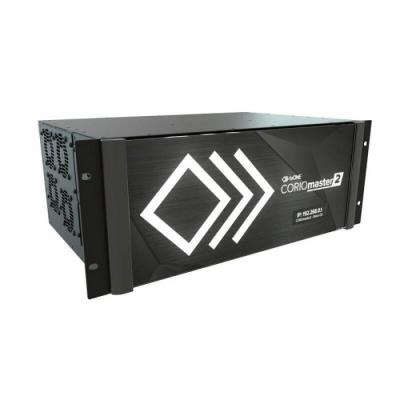

CM2-547 4U High Bandwidth Video Processor, Black, CPU/G-Series Firmware

CORIOmaster2 (CM2-547) is a powerful, efficient approach to building large 4K/8K video display systems. Multiple video windows can be positioned on LED, display based videowalls or projector edge blends, displaying any of the sources connected to CORIOmaster2. Windows can be visually “transitioned” into position, resized or rotated to any proportion allowing designers to achieve striking visual effects. Each system can support up to three separate 4.1 Gigapixel video canvasses with up to sixty four windows per canvas depending upon the source resolution, frame rate and size of windows. CORIOgrapher, the control software for the CORIOmaster2 series of processors, is a simple, easy to use design interface that enables window and source positioning and transition effects. This dynamic feature is easily managed through presets in CORIOgrapher or by simple commands executed by third party control systems. Fifty presets can be saved permanently in the system.

Brand:
tvONE
Product Type:
Video Processor
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Number of Channels:
Special Features:
Build Dynamic Video Installations, Less Electricity, Front Panel Status Screen, Largest Creative Canvas
Power Rating:
400, 700W
Applications:
SDI, DVI, HDMI, Streaming Media, Video Production
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Includes:
(1) CPU, (1) G-Series Firmware
Storage Temperature Range:
-10 to 70°C
Performance
Video Format:
HDMI 1080p: 60fps
Maximum Input Resolution:
1920x1080ipixels@60Hz
Audio Sample Rate:
Up to 48kHz
Data Transfer Rate:
4.1Gbps
Inputs and Ports
Input Port Type:
DVI, HDMI
Output Port Type:
HDMI
I/O Interface Type:
8xUSB 3.0
Dimensions
Width:
43.2cm
Depth:
30.7cm
Height:
17.8cm
Weight:
10kg
Other
Standards Met:
FCC, CE, RoHS, ULc

CM2-547 1 (PDF-CM2-547-US.pdf, 24,686 Kb) [Download]

CM2-547 2 (ARCHITECTURAL_SPECIFICATIONS_CORIOmaster2.pdf, 202 Kb) [Download]
