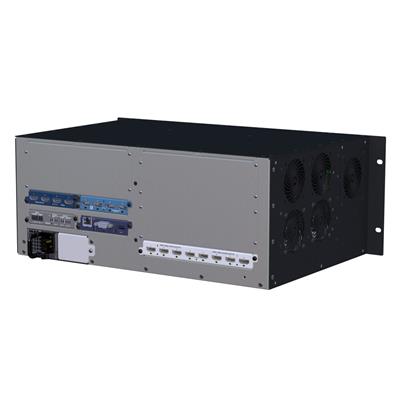

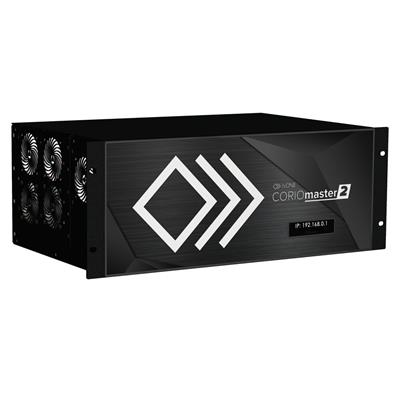

CM2-541-8A2 CORIOmaster2 541, 4U, High Bandwidth Video Processor 4x3G SDI & 4x4K HDMI inputs, 8xHD HDMI outputs, 400W PSU
Please sign in so that we can notify you about a reply
CORIOmaster2 LITE is a purpose built, off-theshelf, all-in-one 4K video processor with industry leading performance that is perfect for your small and medium installations. Using our proprietary CORIO® processing engine, CORIOmaster2 LITE provides unrivalled power and stunning quality for uncompromised, low latency video performance.
Features
- Simultaneously display 16 4K60 windows
- 5 years warranty.
- Accepts digital, IP and broadcast AV inputs.
- Simple to configure.
- Functions with 64,000 x 64,000 pixel canvas.
- Luma keying (add real-time keyed elements).
Brand:
tvONE
Specifications
Product Type:
Video Processor
Maximum Operating Temperature:
+40°C
Colour:
Black
Number of Channels:
Special Features:
Unrivalled Power, Stunning Quality for Uncompromised, Low Latency
Power Rating:
400W
Applications:
Small to Medium LED Installations, Projection Edge Blends, Monitor Walls
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Includes:
(1) Power Supply
Storage Temperature Range:
-10 to 70°C
Performance
Video Format:
4x4K60
Maximum Input Resolution:
2160pixels@60Hz
Maximum Output Resolution:
3840x2160pixels
Data Transfer Rate:
4.1Gbps
Inputs and Ports
Input Port Type:
1x3GSDI4IN, 1x4K4IN
Output Port Type:
1x8HDOUT
Dimensions
Width:
43.2cm
Depth:
30.7cm
Height:
17.8cm
Weight:
10kg
Other
Standards Met:
FCC, CE, RoHS, ULc
